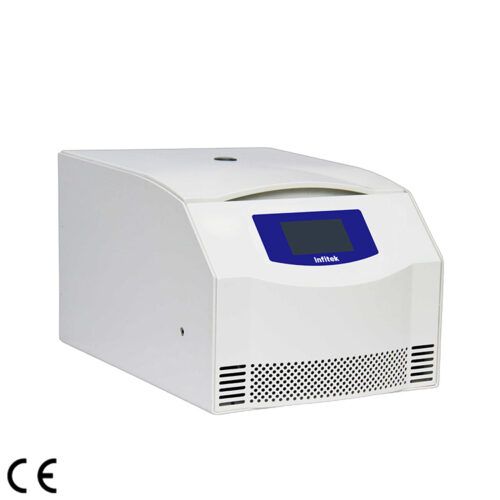

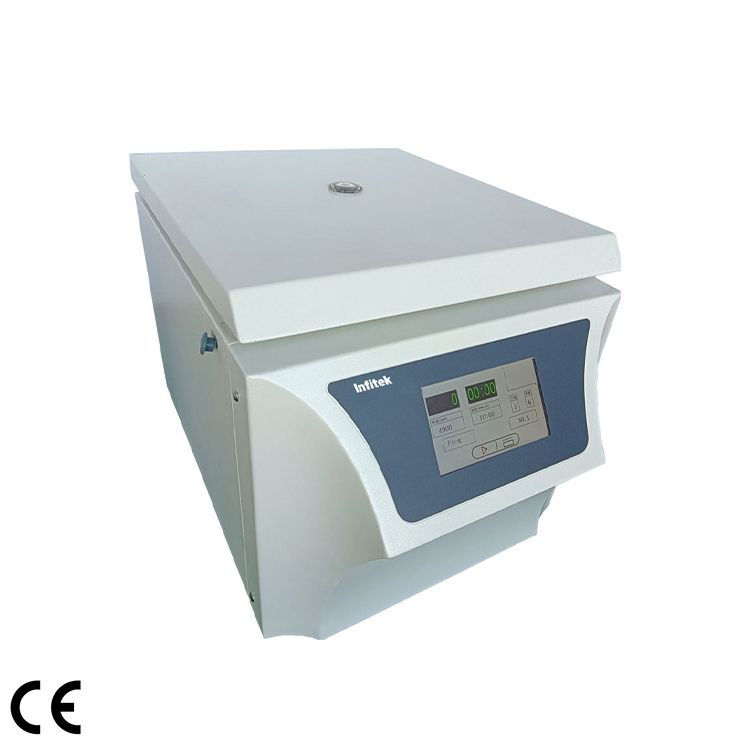

High Speed Centrifuge, CFG-16.5B

  1. Max. Speed: 16500r/min
  2. Max. RCF: 21380×g
  3. Max.Capacity:4×100mL
  4. Speed Accuracy: ±30r/min

Share the product


It is suitable for experiments in biology, medicine, agriculture and other fields, and is the first choice for genetic gene, protein nucleic acid PCR experiments.


1. Display: 5-inch high-definition touch screen, easy to operate and intuitive display;

2. Safety Protection: Automatically identify 7 different rotors to eliminate potential safety hazards caused by user misoperation;

3. Control: It has 9 files of acceleration and 10 files of deceleration level, which can effectively prevent secondary suspension and have a good centrifugal effect.

4. Scheme:15 groups of programs can be stored for users to use;

5. Performance: AC variable frequency motor, high speed control precision, imported environmental protection compressor;

6. Safety:There are various protections such as overspeed, door protection, imbalance protection, etc. to ensure the safety of human and machine;

7. Convenience:Free switching of speed and RCF;

8. Particularity:Special air duct to ensure the rotor works under normal temperature;

9. Speciality : Airtight rotor, effectively prevent aerosols.



Model CFG-16.5B
Max. Speed 16500r/min
Max. RCF 21380×g
Max.Capacity 4×100mL
Speed Accuracy ±30r/min
Time Setting 1min~99min59s
Power Supply AC 220V 50Hz 16A
Dimensions(L*W*H) 350×495×350mm
Net Weight 30kg

Rotor (optional)

Rotor Type Max Speed(rpm) Max RCF(g) Max Capacity Tube Size(mm)
Angle Rotor 13000 19080 48×0.5mL Φ8×32
Angle Rotor 16500 18400 12×1.5/2mL Φ10×42
Angle Rotor 15000 21380 24×1.5/2mL Φ10×42
Angle Rotor 13000 19270 32×1.5/2mL Φ10×42
Angle Rotor 12000 15530 48×1.5/2mL Φ10×42
Angle Rotor 12000 10100 12×5mL Φ14×54
Angle Rotor 12500 16060 12×10mL Φ16×87
Angle Rotor 12000 15370 8×15mL Φ17×121
Angle Rotor 12000 13120 6×50mL Φ29×105
Angle Rotor 12000 13120 6×50mL(falcon tube) Φ29×105
Angle Rotor 10000 10620 4×100mL Φ38×125
Swing Rotor(microplate) 4000 2000 2×2×48well
