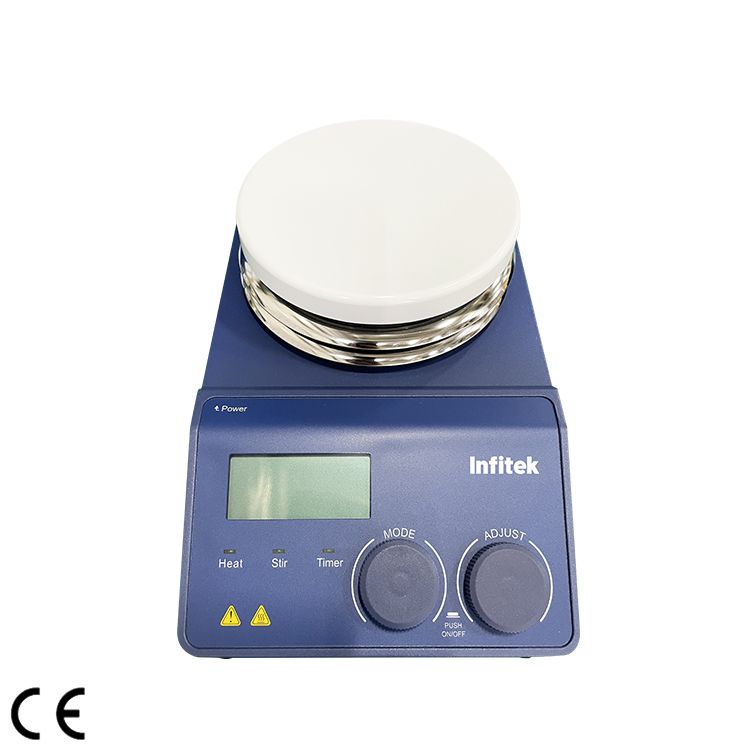

Magnetic Hotplate Stirrer, 340℃, HPS-340A

  1. Heating temperature range: Room temp.-340℃,
  2. increment: 1℃
  3. Temperature display accuracy: ±0.1℃
  4. Speed range: 100-1500rpm, resolution ±1rpm
  5. Max. stirring quantity [H2O]: 20L

Share the product



  • Digital control with max. temperature at 340℃, speed up to 1500rpm.
  • Aluminum alloy work plate with flat plane provides fast heating performance, and strong compatibility with various heating containers and heating blocks.
  • High-resolution LCD display shows actual temperatures and speed.
  • PID controller ensures a precise and steady heating process.
  • External temperature control is possible by connecting the temperature sensor (PT 1000) with accuracy at ±0.2°C.
  • Brushless DC motor enables more powerful speed control.
  • Three heating modes for selected (fast heating, standard heating and stable heating).
  • Remote control function through RS232 interface provides PC control and data transmission.


  • International safety certification: obtained the CE,CTÜVus, FCC and other product safety certifications issued by TUV Rheinland
  • Safety circuits provide overheating protection
  • The “HOT” warning will flash if the plate temperatureis above 50°C even when the hotplate is turned off
  • Brushless DC motor is maintenance free and explosion-proof
  • Fully enclosed aluminum alloy housing with good heatdissipation performance and reliable protection capability


Specifications HPS-340A
Work plate dimension φ135 mm (5 inch)
Work plate material Aluminum
Motor type Brushless DC motor
Heating temperature range Room temp.-340℃,
increment 1℃
Temperature display accuracy ±0.1℃
Speed range 100-1500rpm resolution±1rpm
Max. stirring quantity [H2O] 20L
Speed display LCD
Temperature display LCD
Max. magnetic bar[length] 80mm
Temperature control accuracy ±1°C(<100℃) ±1%(>100℃)
External temperature sensor PT1000 (accuracy ±0.2℃)
Over temperature protection 420℃
“Hot” warning 50℃
Data connector RS232
Protection class IP21
Voltage 100~120/200-240V 50/60Hz
Heating power 600w
Power 650w
Motor rating input 18w
Motor rating output 10w
Dimension [WxDxH] 280×160×100mm
Weight 2.8kg
Permissible ambient temperature and humidity 5-40℃;80%RH
