- Measurement range: R.T.~320℃
- Binocular Stereoscopic or Monocular microscope
- Capillary, slide or cover-glass measurement methods
- Measurement methods: Visual

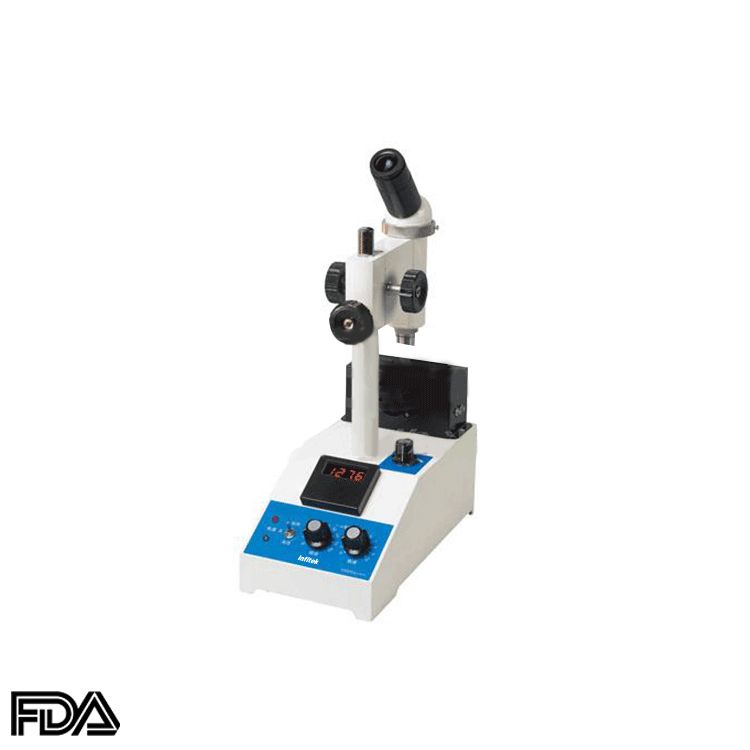

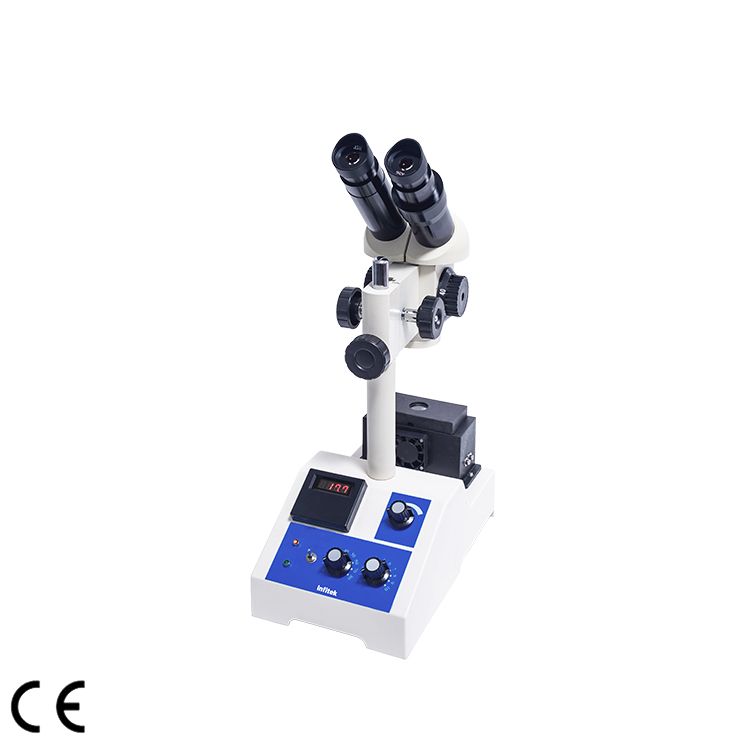

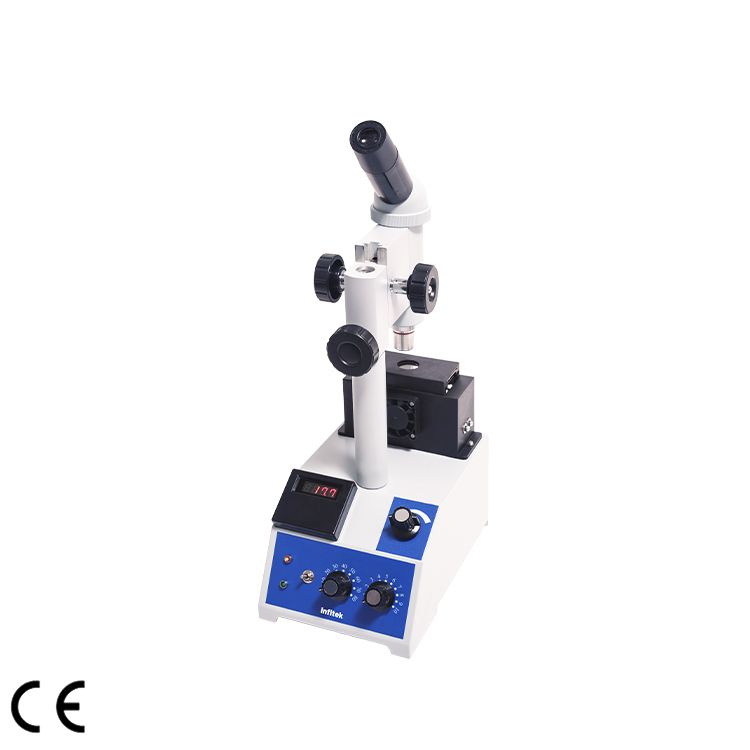

Melting point Apparatus with Microscope, MTP-4 Series
Description
- To be used in pharmaceutical industry, chemical industry, textile industry, dyestuff.
- Use capillary or hot table (slide and cover glass) for sample loading.
- Observe with microscope.
| Parameters/Model | MTP-4B | MTP-4A | MTP-4 |
| Measuring range | Room temperature-320℃ | ||
| Measuring mode | Visual | ||
| Sample loading | Capillary/Hot table | ||
| Repeatability | ≤200℃:±1℃;>200℃:±2℃ | ||
| Resolution | 0.1℃ | 0.1℃ | 1℃ |
| Observation mode | Binocular Stereoscopic microscope | Monocular microscope | |
| Optic magnification | 40X-100X Continuous zoom | 10X(Eye lens)
4X(Objective lens) |
|
| Power supply | 220V±22V,50Hz±1Hz,80w | ||
| Overall Dimensions | 300mm ×220mm×440mm | ||
| Weight(Gross) | 4 kg | 3.5 kg | |
