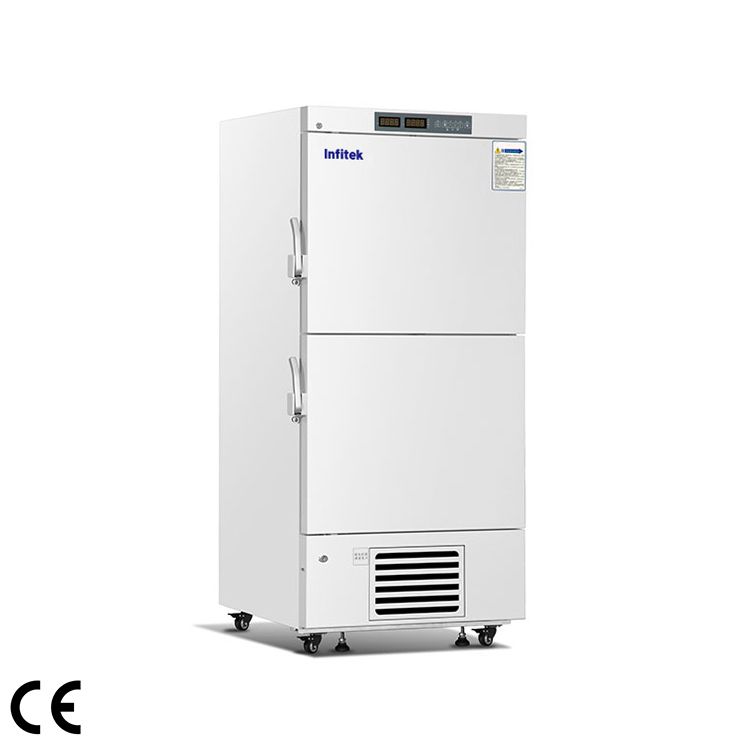

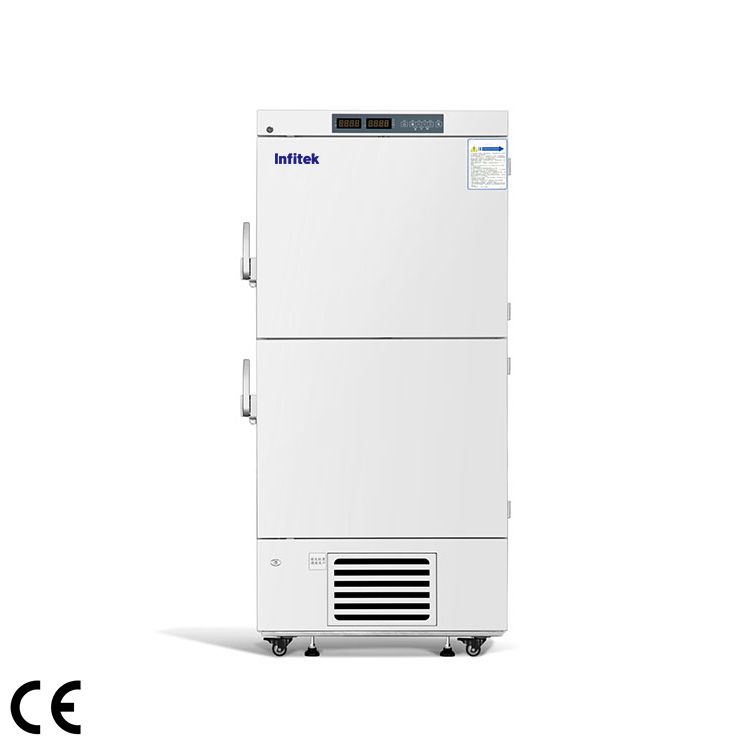

-25℃ Freezer, Vertical Type, LF25-530

  1. Capacity(L/cu.ft): 528/18.64
  2. Temperature range(℃): -25°C~-10°C
  3. Advanced Cooling System: coil evaporator,reasonable refrigeration layout,more stable refrigerant
  4. Independent & precise control of 2 chambers: one refrigeration unit can realize independent & precise control of upper and lower chambers
  5. Convenient after-sales service: 2 years warranty

Share the product


Key Features

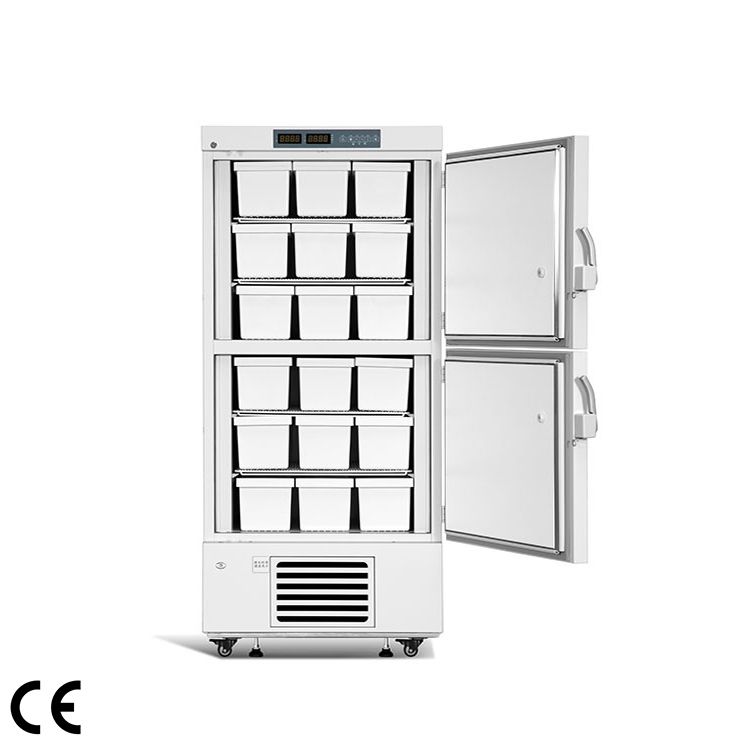

1.Upright side door with build-in handle for easy-opening; limit door hinge to prevent collision when door open.
2.Lockable caster design for customer to move as needed.
3.Wide voltage tolerance design with applicable voltage range of 187~242V/AC, two separate storage rooms for a total of 18 storage drawers.

1.Multiple malfunction alarms including high and low temperature, sensor error, power off, temperature controller malfunction, door ajar.
2.Two types of alarm indications: audible buzzing and visible flashing light.
3.Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from damage.
4.Controller password protect function to avoid change running parameter randomly.

1.Chemically stable, CFC-free, commercially available and environmentally, safe refrigerant.
2.High density CFC-free urethane foam insulation for rigidity and stable storage temperature.
3.Microprocessor control, digital display adjustable temperature range: -25℃~-10℃.
4.LED digital display for clear observation.


Model LF25-530
Specifications Shelf (drawer) Shelves/drawers
Cooling method Direct cooling
Defrost Manual
Refrigerant R290
Power consumption (kWh/24h) 3.4
Noisedb) 55
Ambient temperature(℃) 10~32°C
Temperature range(℃) -25°C~-10°C
Cooling system Compressor brand/QTY MEIZHI/2
Sensor NTC
Temperature controller Microprocessor
Display Digital display
Power Voltage/frequency(V/Hz) 220/50Hz
Power(W) 260W
Current(A) 1.9A
Material Inside material Color sprayed steel
Outside material Color sprayed steel
Insulation PURF
Size Capacity(L/cu.ft) 528/18.64
NW./GW.(kg) 151/184
Exterior size(W×D×H)(mm) 910×845×1875
Interior size(W×D×H)(mm) (651×631.5×635)×2
Package size(W×D×H)(mm) 930×970×2000
CBM 1.8
20GP/40GP/40HQ 12/ 24/24
Alarm High/low temperature Y
Power off Y
Sensor malfunction Y
Ambient temperature(℃) Y
Abnormal voltage /
Temperature controller malfunction Y
Door ajar Y
Power failure backup system(alarm) 8H
Accessories Caster Y
Test hole 2/25MM
USB port Y
Data logger Optional
Remote alarm Y
