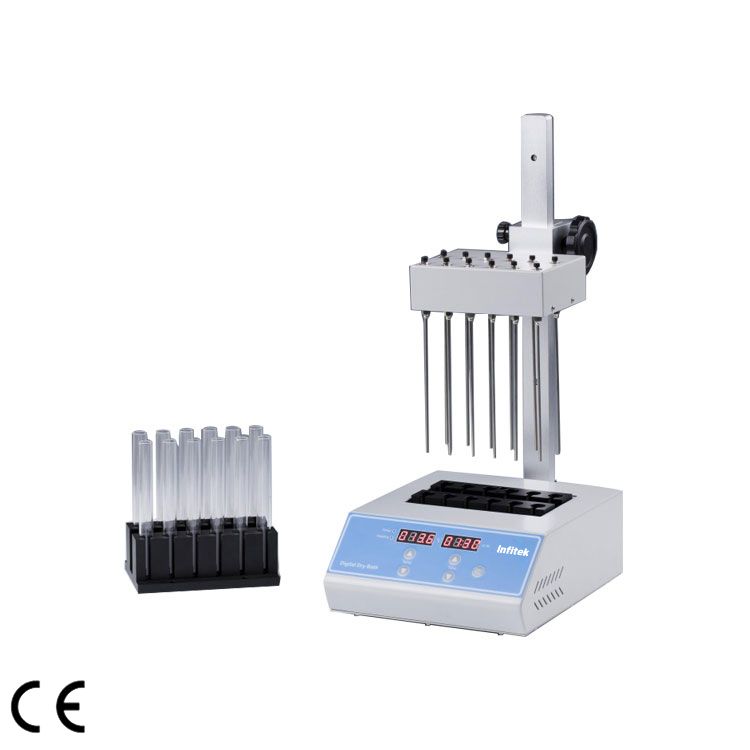

Nitrogen Evaporator, NEC160-1C

  • Independent blowpipes, without cross contamination
  • Slot on each test tube hole, convenient for observing the concentration status of the sample in real time.
  • Gas needle channel can be used in combination or individually
  • High precision and wide range of temp. control.
  • Lifting seat can be adjusted steplessly with one hand

Share the product



NEC160-1C Nitrogen Evaporator/Sample Concentrator (visible) is a high precision temperature control instrument with microprocessor controlled and PID fuzzy controlled technique, its working principle is to blow nitrogen rapid, continuous on the heating surface of the sample. Instead of traditional water bath device, this adopts heat-conducting medium, which is high purity aluminum with good heat transfer. The Test tubes are held in a block, and blowing a large number of samples at one time.


  1. High precision and wide range of temp.control.
  2. Blowing a large number of samples at one time.
  3. Blowing each sample independently.
  4. Amount of airflow can be adjusted.With special slotting-design block, surface location of concentrated samples can be observed.
  5. Easy operation; safe and reliable to use.


Model NEC160-1C
 Temp range  RT.+5°C -160°C
 Temp accuracy  ±0.5℃(@40℃)
 Temp accuracy  ±1℃(@120℃)
 Temp uniformity  ±0.5℃
Display accuracy 0.1℃
Time range 1-99h59min/∞
Heating time ≤15min(from 25℃ to 160℃)
Max vertical travel 200mm
Max gas usage 15L/min
Max gas pressure 0.1Mpa
Block qty 1
Max. power 500W
Electricity AC220V or AC110V /50~60Hz
Dimensions 260*220*475mm
Weight 7.3kg

Product accessories

Model Diameter(mm) Depth(mm) Capacity
RC02 027 001 10.5 50 12
RC02 027 002 12.5 50 12
RC02 027 003 13.5 50 12
RC02 027 004 15.5 50 12
RC02 027 005 16.5 50 12
RC02 027 006 19.5 50 12
RC02 027 007 20.5 50 12

Sample Concentrator, NEC160-1C
