- Independent blowpipes, without cross contamination
- Gas needle channel can be used in combination or individually
- High precision and wide range of temp. control.
- Lifting seat can be adjusted steplessly with one hand

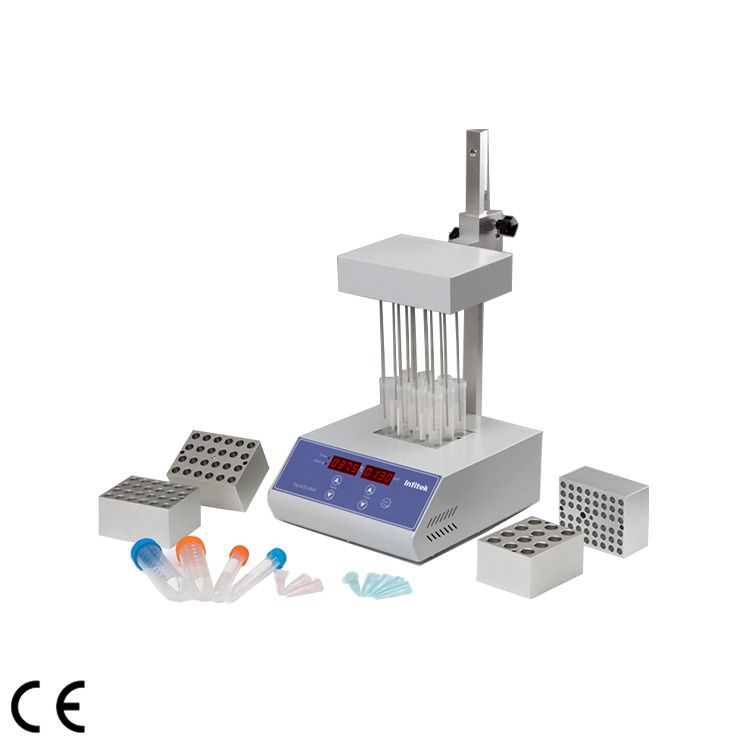

Nitrogen Evaporator, NEC160-1
Description
NEC160-1 Nitrogen Evaporator/ sample concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The test tubes are held in a block, and blowing a large number of samples at one time. It can used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.
Features:
- High precision and wide range of temp. control.
- Blowing a large number of samples at a time.
- Blowing each sample independently.
- Amount of airflow can be adjusted.
- Easy operation; safe and reliable to use.
Specifications
| Project | Parameters |
| Temp range | RT.+5°C -160°C |
| Temp accuracy | ±0.5℃(@40℃) |
| Temp accuracy | ±1℃(@120℃) |
| Temp uniformity | ±0.5℃ |
| Display accuracy | 0.1℃ |
| Time Range | 1-99h59min/∞ |
| Heating time | ≤15min(from 25℃ to 160℃) |
| Needle length | 150mm |
| Max gas usage | 15L/min |
| Max gas pressure | 0.02Mpa(Gas pin≤ 16pcs) |
| 0.05Mpa(Gas pin＞1pcs) | |
| Block qty | 1 |
| Max power | 300W |
| Voltage | AC220V or AC110V/50~60Hz |
| Dimension(WxDxH) | 260x220x450mm |
| Package Dimension(WxDxH) | 600x470x460mm |
| N.W. | 7kg |
| G.W. | 11kg |
Product accessories
| Model | Tube diameter | Tube quantity |
| MD03 | 10mm | 24 |
| MD04 | 12mm | 24 |
| MD05 | 13mm | 24 |
| MD06 | 15mm | 16 |
| MD07 | 16mm | 16 |
| MD08 | 19mm | 12 |
| MD09 | 20mm | 12 |
| MD10 | 26mm | 8 |
| MD11 | 28mm | 4 |
| MD12 | 40mm | 3 |
| MD15 | 1.5ml centrifuge tube | 24 |
| MD16 | 2.0ml centrifuge tube | 24 |
