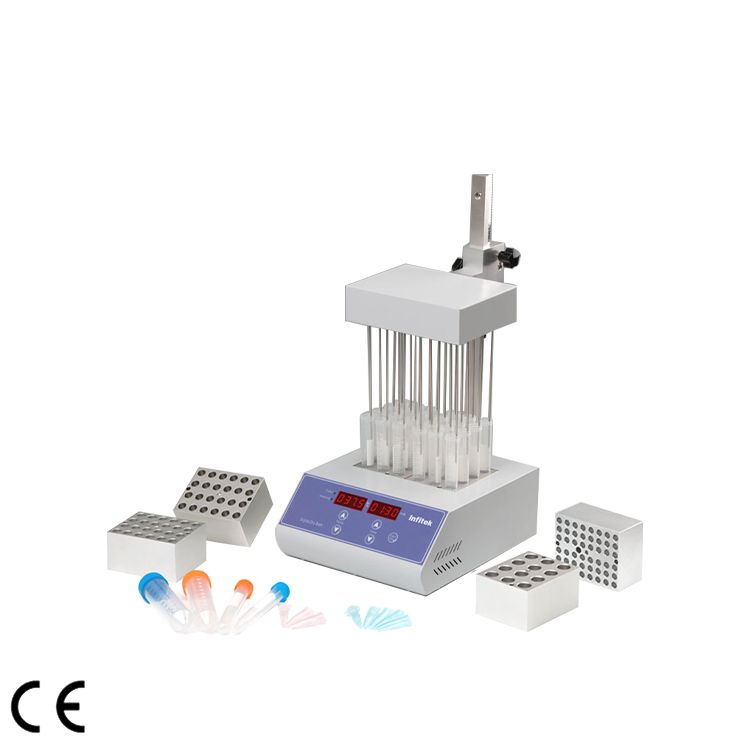

Nitrogen Evaporator, NEC160-2

  • Independent blowpipes, without cross contamination
  • Gas needle channel can be used in combination or individually
  • High precision and wide range of temp. control.
  • Lifting seat can be adjusted steplessly with one hand

Share the product

Description

NEC160-2 Nitrogen Evaporator/sample concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The Test tubes are held in block, and blowing a large number of samples at one time.

It can used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.

Features:

  1. High precision and wide range of temp. control.
  2. Blowing a large number of samples at one time.
  3. Blowing each sample independently.
  4. Amount of airflow can be adjusted.
  5. Easy operation; safe and reliable to use.

Specifications

Project Parameters
 Temp range  RT.+5°C -160°C
 Temp accuracy  ±0.5℃(@40℃)
 Temp accuracy  ±1℃(@120℃)
 Temp uniformity  ±0.5℃
Display accuracy 0.1℃
Time Range 1-99h59min/∞
Heating time ≤15min(from 25℃ to 160℃)
Needle length 150mm
Max gas usage 15L/min
Max gas pressure 0.02Mpa(Gas pin≤16pcs)
0.05Mpa(Gas pin>1pcs)
Block qty 2
Max power 500W
Voltage AC220V or AC110V /50~60Hz
Size 260 x 220 x 450mm
Weight 7.5kg

Product accessories

Model Tube diameter Tube quantity
MD03 10mm 24
MD04 12mm 24
MD05 13mm 24
MD06 15mm 16
MD07 16mm 16
MD08 19mm 12
MD09 20mm 12
MD10 26mm 8
MD11 28mm 4
MD12 40mm 3
MD15 1.5ml centrifuge tube 24
MD16 2.0ml centrifuge tube 24
