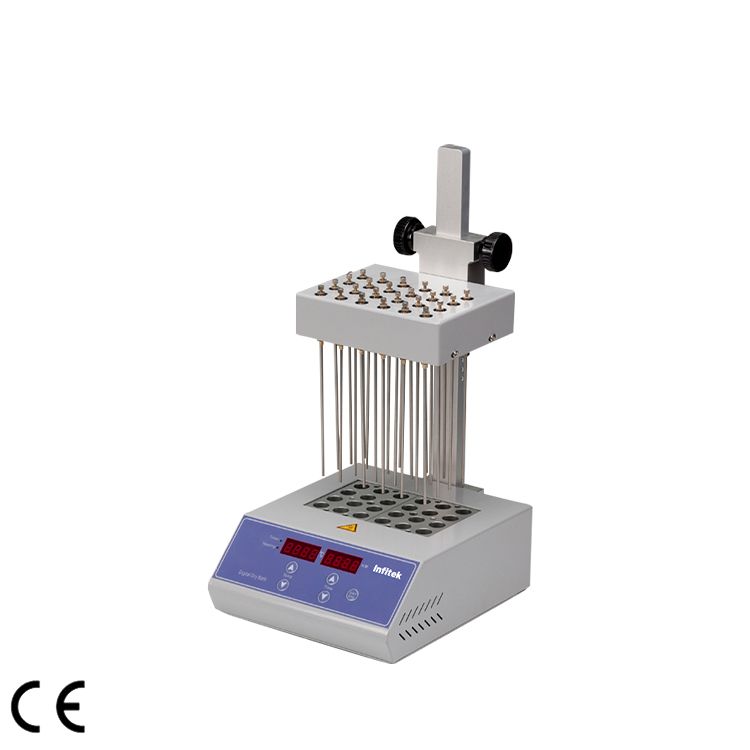

Nitrogen Evaporator, NEC160-2A

  • Gas needle can be opened and closed independently
  • Lifting seat can be adjusted steplessly with one hand

Share the product


NEC160-2A Nitrogen Evaporator/ Sample Concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The Test tubes are held in a block, and blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.


1.High precision and wide range of temp control.
2. Blowing a large number of samples at one time.
3. Blowing each sample independently.
4. Amount of airflow can be adjusted.
5. Easy operation; safe and reliable to use.


Project Parameters
 Temp range  RT.+5°C -160°C
 Temp accuracy  ±0.5℃(@40℃)
 Temp accuracy  ±1℃(@120℃)
 Temp uniformity  ±0.5℃
Display accuracy 0.1℃
Time Range 1-99h59min/∞
Heating time ≤15min(25℃ to 160℃)
Needle length 150mm
Max gas usage 15L/min
Max gas pressure 0.1Mpa
Block qty 2
Max power 500W
Voltage AC220V or AC110V/50~60Hz
Size 260x220x475mm
Weight 7.5kg

Product accessories

Model Tube diameter Capacity
MD50 10mm 12
MD51 12mm 12
MD52 13mm 12
MD53 15mm 12
MD54 16mm 12
MD55 19mm 12
MD56 20mm 12
