Nitrogen Evaporator, NEC160-1B

  • Independent blowpipes, without cross contamination
  • Gas needle channel can be used in combination or individually
  • High precision and wide range of temp. control.
  • Lifting seat can be adjusted steplessly with one hand

Share the product

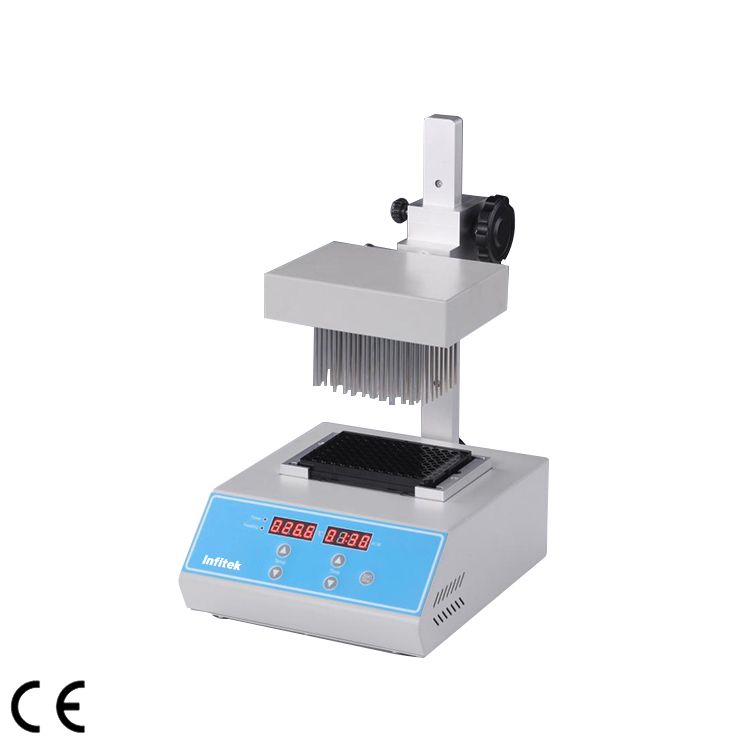

NEC160-1B Nitrogen Evaporator/ Sample concentrator is a high precision temperature control instrument with microprocessor controlled and PID fuzzy controlled technique. It works by blowing nitrogen in the surface of sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of rotary evaporation instrument, nitrogen sample concentrator can efficiently concentrate a large of samples simultaneously.


  • High precision and wide range of temp control.
  • Blowing a large number of samples at one time.
  • Blowing each sample independently.
  • Easy operation; safe and reliable to use.


Model NEC160-1B
Temp. range RT+5°C -160°C
Temp. accuracy ±0.5°C(@40°C)
Temp. accuracy ±1°C(@120°C)
Temp. uniformity ±0.5°C
Display accuracy 0.1°C
Time Range 1-99h59min/∞
Heating time ≤15min(25°C to 160°C)
Max. vertical travel 150mm
Max. gas usage 15L/min
Max. gas pressure 0.05Mpa
Block qty 1
Max. power 500W
Electricity 220V or 110V 50/60Hz
External dimension(W*D*H) 310*220*385(mm)
Net weight 7.5kg



Type Test tube diameter Capacity Dimension(mm)
MD17 0.2ml PCR plate 96 153*95.5*60
MD18 Elisa plate 96 153*95.5*60

Sample Concentrator, NEC160-1B
