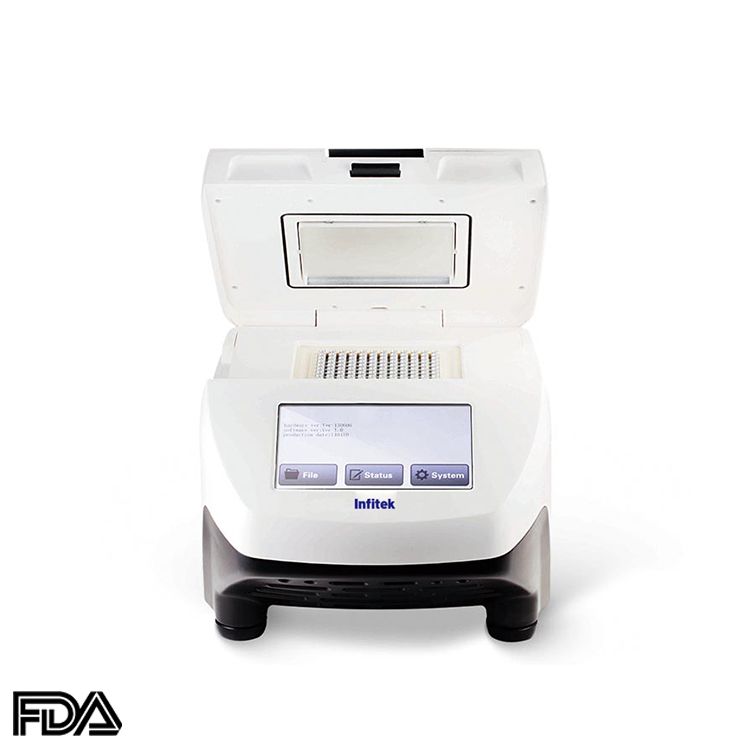

PCR Standard Thermo Cycler, PCRTC-S

  • Sample Capacity: 96×0.2mL PCR tube
  • Max. Heating/Cooling rate:5℃/Sec
  • Temperature uniformity: ≤±0.3℃
  • 7 inch Large color touch panel screen
  •  High performance DSP and temperature control
  • Large user program storage

Share the product



  • Reliable  heating/cooling  elements  and  precise temperature control
  • Unique  design  of  block  ensur es  the temperature uniformity and repeatable results
  •  7 inch Large color touch panel screen for easy programming with user friendly software
  •  High performance DSP and temperature control
  • Fast heating and cooling rate
  • Large user program storage


Specifications PCRTC-S

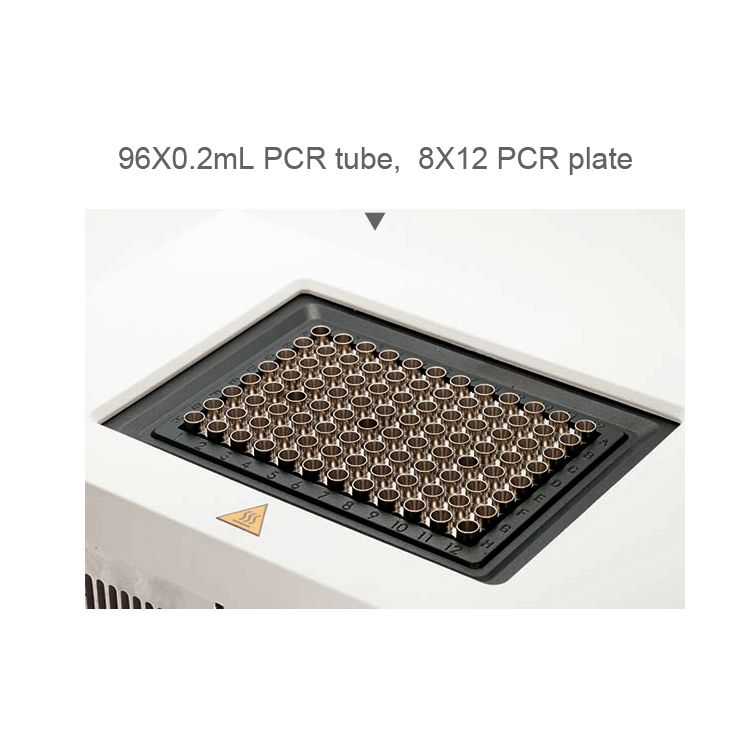

Sample Capacity 96X0.2mL PCR tube,  8X12 PCR plate or 96 well plate
Heating Temperature Range 4-105℃
Lid Temperature Range 30-110℃
Temperature Display Accuracy ±0.1℃
Temperature Control Accuracy [at 55℃] ±0.3℃
Temperature uniformity[at 55℃] <0.3℃
Max. Heating/Cooling Rate 5℃/Sec
Adapter block material aluminum
Display 7” LCD 800×480
Input Touch panel
User defined file system Max. 30 segments 99 cycles  max. 16 folder and 16 files each folder
Power off protection Yes
Power Supply 100-120V/200-240V,50/60Hz
Dimension [D×W×H]
( without the heating block )
600*420*440 mm
Net /Gross weight 10/13 kg
