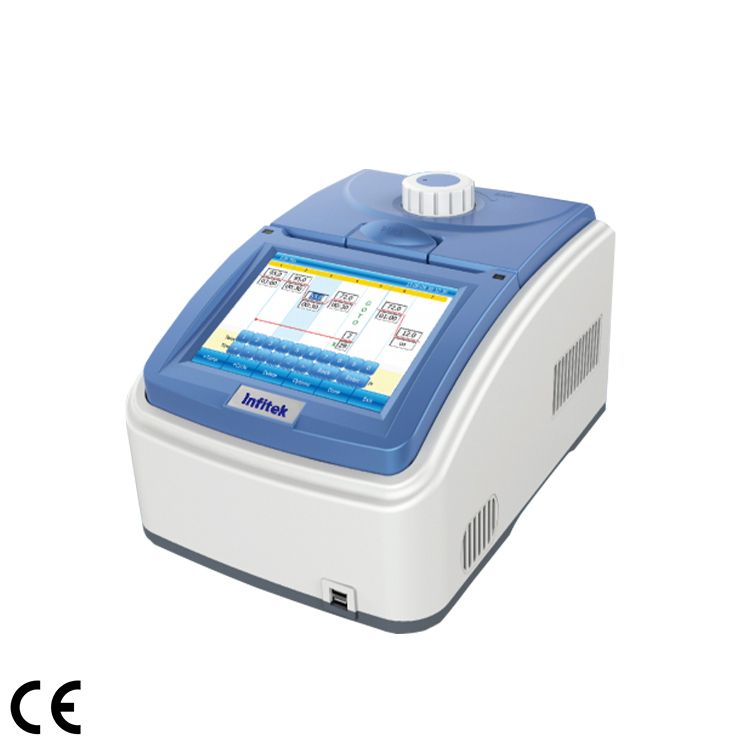

PCR Machine, PCR-96S

This PCR machine uses long service life peltier. Its max. ramping rate is 4.5 ℃/s and cycle times is more than 1000,000. The product combines a variety of advanced technologies: Android system; Color capacitive touch screen; several block as options; built-in WIFI module, mobile APP and PC software control function; email notification function; big storage capacity and etc. All above functions allow PCR’s excellent performance and meet higher experiment’s need.

• Six pieces of long service life Peltier heating units and form 3 circuits to control 3 temperature zones
• Reinforced aluminum module with anodizing technology can keep rapid heating conducting property and have enough corrosion resistance
• High heating and cooling rate, max. Ramping rate 4.5 ℃/s, can save your precious time
• Stepless adjustable hot lid, fit tubes of different heights to avoid tube melt and evaporation
• Android operating system, capacitive touch screen, high-definition TFT display (8”, 800×600 pixels, 16 colors) with graphical interface provides easy use for setting up and monitoring
• Built-in 11 standard program file template, can quickly edit the required files
• Folder management, user can build directory
• Running program and left time can be displayed in real time,allow to edit file when program is running
• One-click quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA
• Internal flash memory for 10000 typical PCR files in free configurable folders
• Hot lid temperature and hot lid work mode can be set to meet different experiment’s need
• Automatic restart after power failure. When power is restored it can continue to run unfinished program
• GLP report records every step to provide accurate data support for experiment result analysis
• User Login Management, three-tier permission, password protection function to ensure data security
• Support U disk to get PCR data, to update software, and USB mouse can also be used to control the PCR instrument
• Built-in WIFI module, one machine can control multiple PCR machines at the same time through mobile APP or PC software
