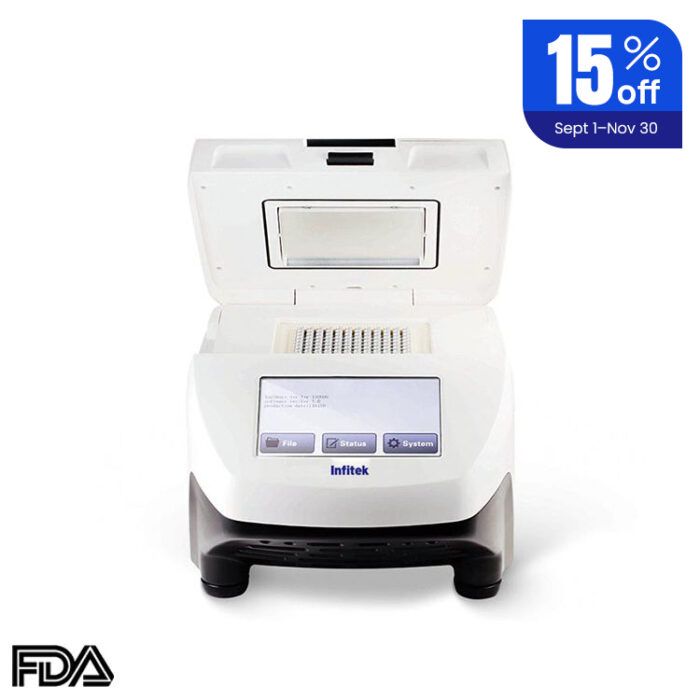

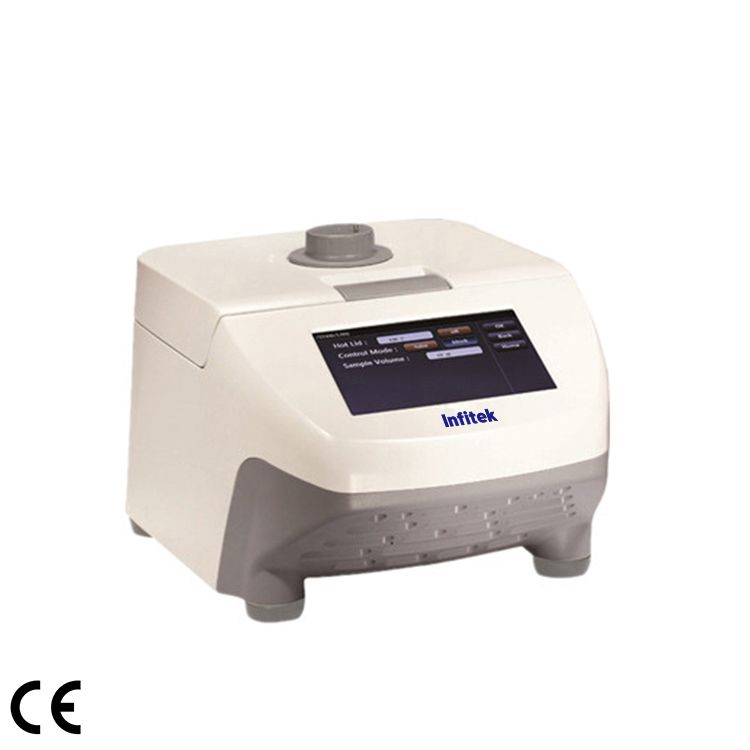

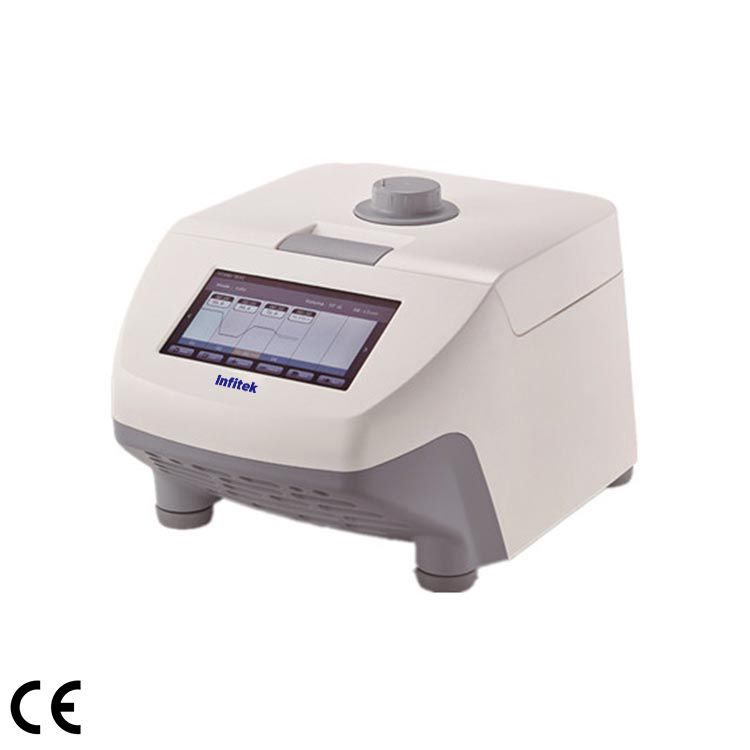

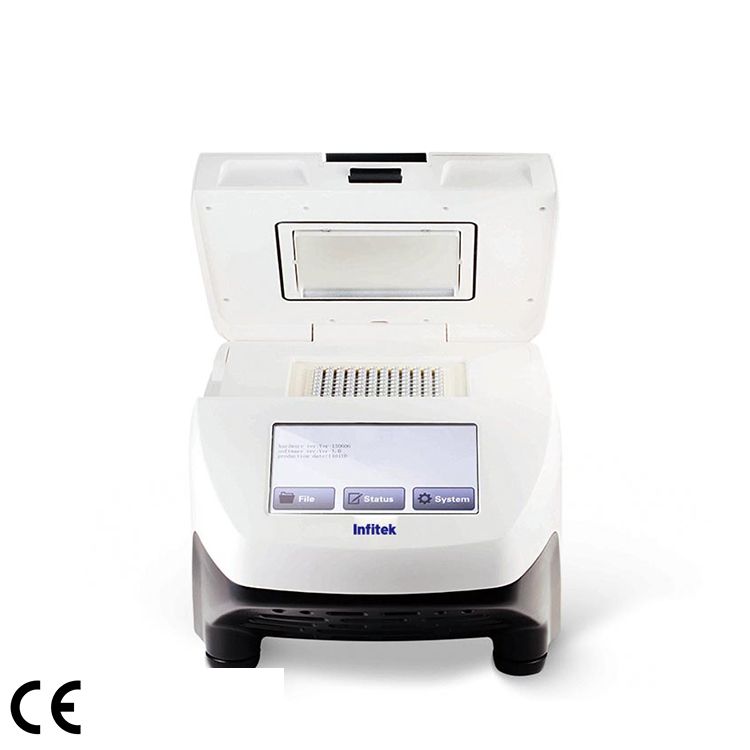

Gradient PCR Machine, PCRTC-GP

DESCRIPTION

Reliable heating/cooling elements and precise temperature control
Unique design of block ensures the temperature uniformity and repeatable results
7 inch Large color touch panel screen for easy programming with user friendly software
High performance DSP and temperature control
Fast heating and cooling rate
Large user program storage
Built-in WIFI module, connecting via LAN with a PC host computer, simultaneous control of multiple PCR instruments with one computer
USB interface, support for saving/retrieving PCR data on U disk, support for updating software on U disk and LAN, customisable programs, file customization, multi-file storage.

Specifications	PCRTC-GP
Sample Capacity	96×0.2mL PCR tube \| 12×0.2mL PCR-8 strips \| 1×0.2mL 96-well PCR plate
Heating Temperature Range	0-105℃
Lid Temperature Range	30-115℃
Temperature Display Accuracy	±0.1℃
Temperature Control Accuracy	±0.1℃
Temperature uniformity[at 55℃]	±0.2℃
Max. Heating/Cooling Rate	5℃/Sec
Gradient Temperature Setting Range	30-105℃
Gradient Range	1-42℃，Turn off gradient on input 0
Adapter block material	Aluminum
Display	7″ LCD 1024×600
Input	Touch panel
Communication interface	USB/Wifi
Number of program storage	20000+（USB FLASH）
User defined file system	Up to 30 steps and 99 cycles in a single program
Power off protection	Yes
Power Supply	100~120V/200~240V，50/60Hz 600W
Dimension [D×W×H]	296x370x295mm
Weight	9.5kg

Category	Title	File type/size	Download
Brochure	Brochure – PCR Machine	PDF(1 MB)	download
