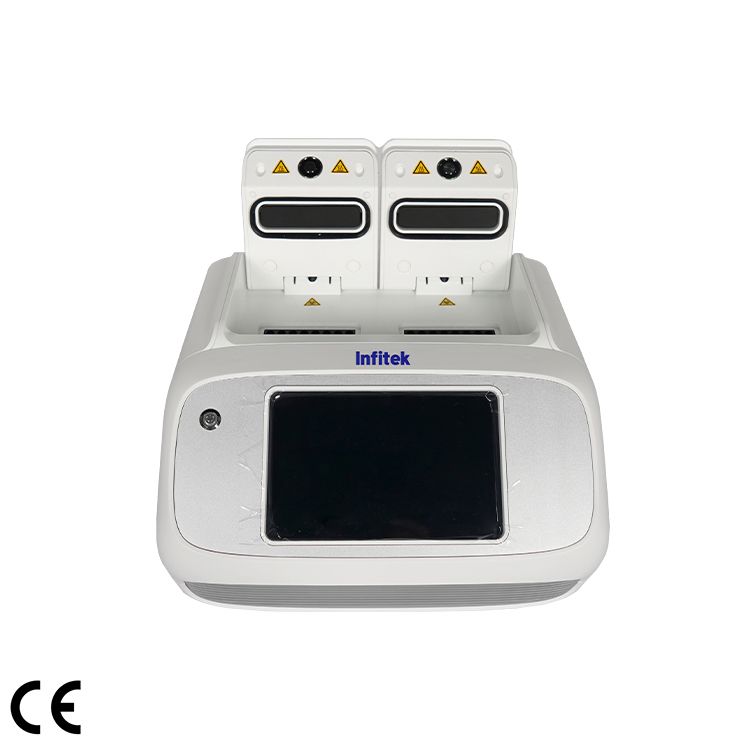

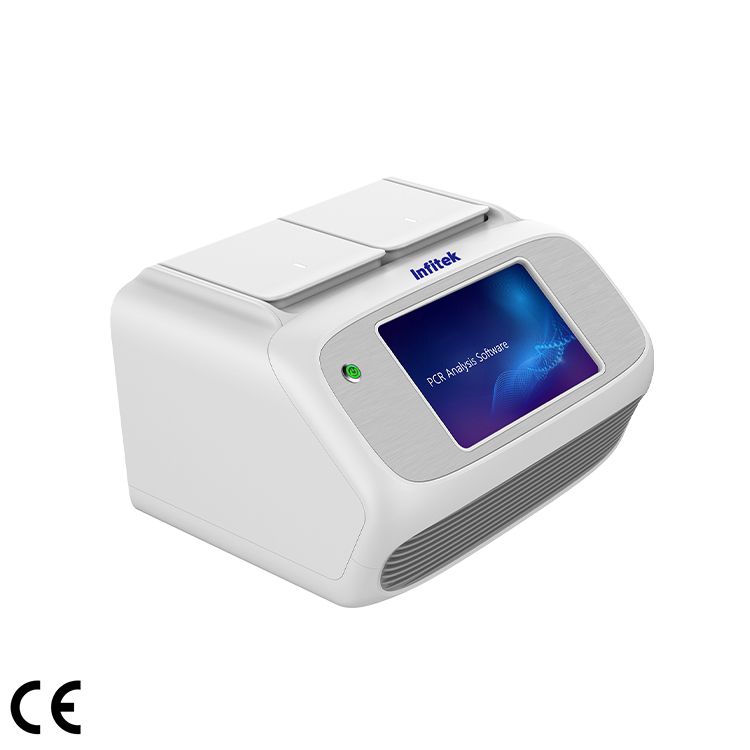

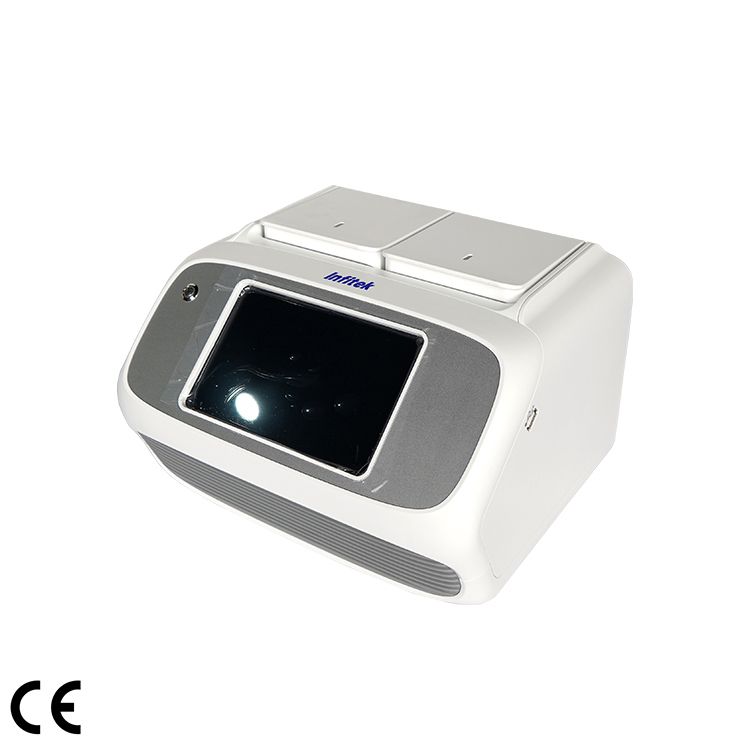

Real Time PCR System, PCR-Q16 Series

  • Fluorescent channels: 1, 4
  • Sample Capacity: 16×0.2ml
  • Reaction Volume: 15-100μL
  • Temperature Range: 0-100℃
  • MAX. Ramp Rate: 6℃/s
  • 7 inch color TFT touch screen

Share the product



PCR-Q16 Series Real  Time PCR System is a portable fluorescence quantitative PCR instrument. This product adopts dual-channel and double 8-well blocks, which can run two different files simultaneously. The product combines a variety of advanced technologies: 7-inch high-definition TFT color touch screen, Win10 operating system with analysis software, complete quantitative analysis and printing report without computer. It adopts American Marlow custom-made peltier, high sensitivity photoelectric detector and side scan technology, to ensure superior performance and stable detection results.


  • Double 8-well blocks design, can run two different programs at the same time.
  • Small size, light weight, easy to carry.
  • Powerful software analysis function, which can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, 7-inch high-definition TFT color touch screen, and embedded win 10 operating  system.
  • 20G flash memory can save 40,000 experimental data.
  • Printer as an optional which can print the records directly, no need to connect the computer.
  • Adopting side scan technology, the detection distance is close, and the fluorescence acquisition signal is stable.
  • Black reaction block to avoid background noise.
  • Adopt the same acquisition optical path to improve the repeatability.
  • LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.
  • The electromagnetic lock cover technology prevents the hot lid from accidentally opening. Front shutdown button makes file data more secure.
  • Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy.
  • It has the protection functions of over-current, over temperature, power-off data self recovery.
  • Forward and backward air vent design, can be placed side by side, saving laboratory


Model PCR-Q16-1B PCR-Q16-4F
Sample Capacity 16×0.2ml(2×8well, dual block)
Consumable Clear 0.2 ml PCR tube /8-tube strips
Reaction Volume 15-100μL
Temperature control technology Marlow customized Peltier allow 1,000,000 cycles
Temperature Range 0-100℃ (Resolution:0.1℃)
MAX. Ramp Rate 6℃/s 8℃/s
Temperature fluctuation ±0.1℃
Uniformity ±0.25℃
Accuracy ±0.25℃
Hot Lid Temperature 30-110℃((Adjustable, default 105℃))
Temperature Control Block/Tube
Excitation Wavelength 460-550nm 460-650nm
Emission Wavelength F1: 520-540 nm F1: 520-540nm

F2: 540-580nm

F3: 571-612nm

F4: 628-692nm

Factory Calibrated Dyes F1:FAM/SYBR Green I; F1: FAM/SYBR Green I; F2: HEX/VIC/JOE/TET; F3: ROX; F4: CY5
Excitation Long life LED
Detection High sensitivity photoelectric detector
Dynamic Range 1-1010 Copies
Sensitivity 1 copy
Feature function Quantitative/qualitative analysis, Melting curve, Genotyping
Date Export Formats Excel, CSV, Txt
Printing Report can be printed (optional USB thermal printer)
Control Method 7 inch color TFT touch screen, Can be connected to computer control
Communication USB2.0
Dimension  (L×W×H) 300×267×198mm
Net Weight 8 Kg
Electricity 220VAC, 50Hz; DC15V, 255W
