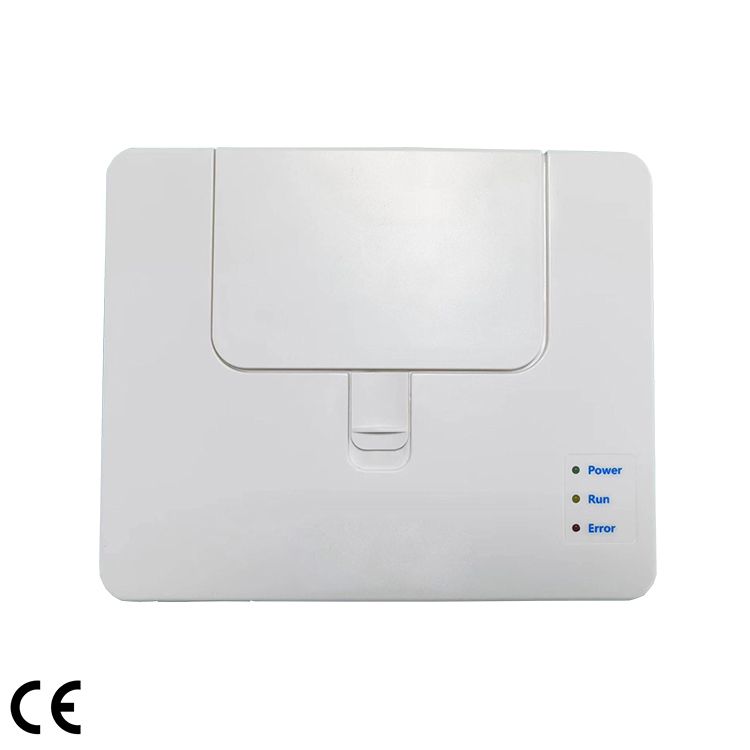

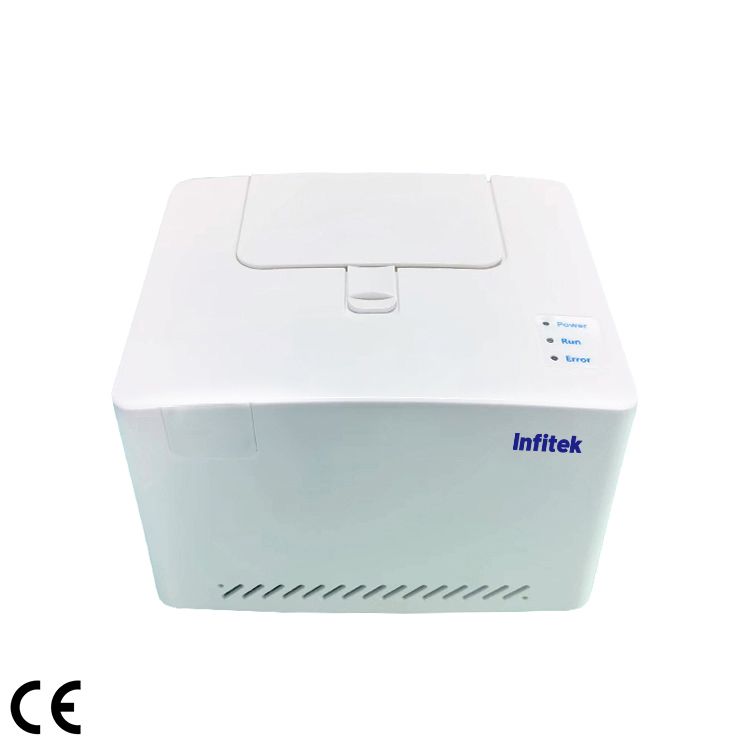

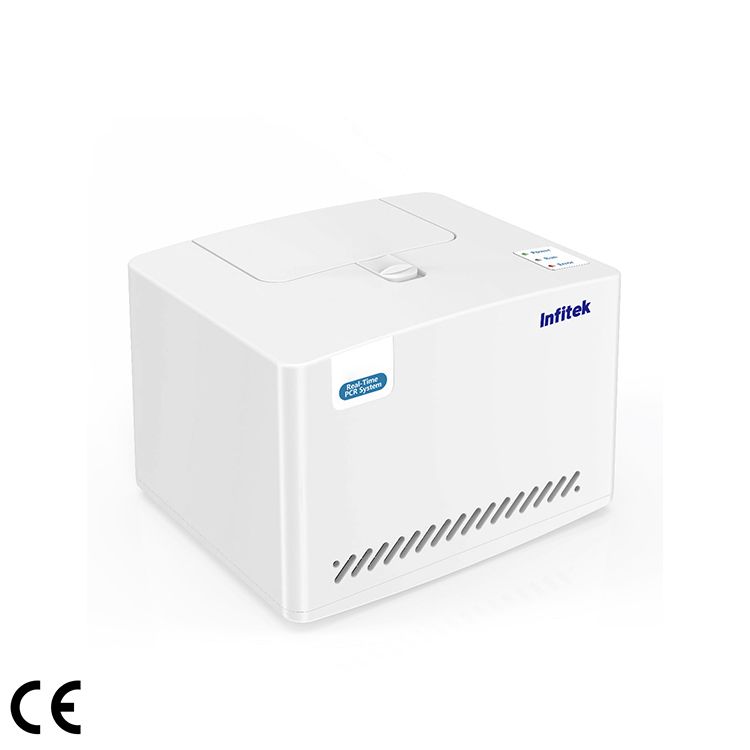

Real Time PCR System, PCR-Q88-4

  • Max. Ramp Rate: 8℃/s
  • Fluorescent channels: 4
  • Sample Capacity: 8×0.2ml (8 well)
  • Powerful software analysis Small and light, Easy to carry
  • Constant current circuit, High temperature control accuracy
  • Battery power supply, Quick detection

Share the product



The product can be used for real-time detection in pasture forest farm, breeding farm and water source. It is used for rapid diagnosis of disaster and epidemic disease, inspection and quarantine in the field of food safety, and scientific research in biological laboratories.


  1. Small size, light weight, easy to carry.
  2. Powerful software analysis function, which can perform quantitative analysis, melting curve analysis, genotyping, etc
  3. Adopting side scan technology, the detection distance is short, and the fluorescence collection signal is stable.
  4. Black reaction block to avoid background noise.
  5. Adopt the same acquisition optical path to improve the repeatability.
  6. LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.
  7. Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy.
  8. It has the protection functions of over-current, over temperature, power-off data self recovery, etc.
  9. Forward and backward air vent design, can be placed side by side, saving laboratory space.
  10. Support lithium battery power supply, especially suitable for quick inspection and field inspection.


Model PCR-Q88-4
Sample Capacity 8×0.2ml (8 well)
Consumable Clear 0.2 ml PCR tube /8-tube strips
Reaction Volume 15-100μl
Temperature control


Marlow customized Peltier allow 1.000.000 cycles
Temperature Range 0-100℃(Resolution:0.1℃)
Max. Ramp Rate 7℃/s
Temperature fluctuation ±0.1℃
Uniformity ±0.25℃
Accuracy ±0.25℃
Hot Lid Temperature 30-110℃ (Adjustable, default 105℃)
Temperature Control Block/Tube
Excitation wavelength 460-628nm
Emission wavelength F1: 520-540nm

F2: 540-580nm

F3: 571-612nm

F4: 628-692nm


Factory Calibrated Dyes F1: FAM/SYBR Green I



F4: CY5


Excitation Long life LED
Detection High sensitivity photoelectric detector
Dynamic Range 1-1010 Copies
Sensitivity 1 copy
Feature function Quantitative/qualitative, melting curve, genotyping
Date Export Formats Excel, CVS, Txt
Printing Report can be printed (optional USB thermal printer)
Communication WIFI/USB2.0
Dimension0(L×W×H) 195×165×140 mm
Net Weight 3Kg
Electricity 220VAC, 50Hz; DC15V, 225W
