- Temp.Range: -10/ -15/ -20/ -30/ -40~RT
- Fully enclosed compressor cooling system
- With external circulating pump
- With timing shutdown function
- Intelligent PID control

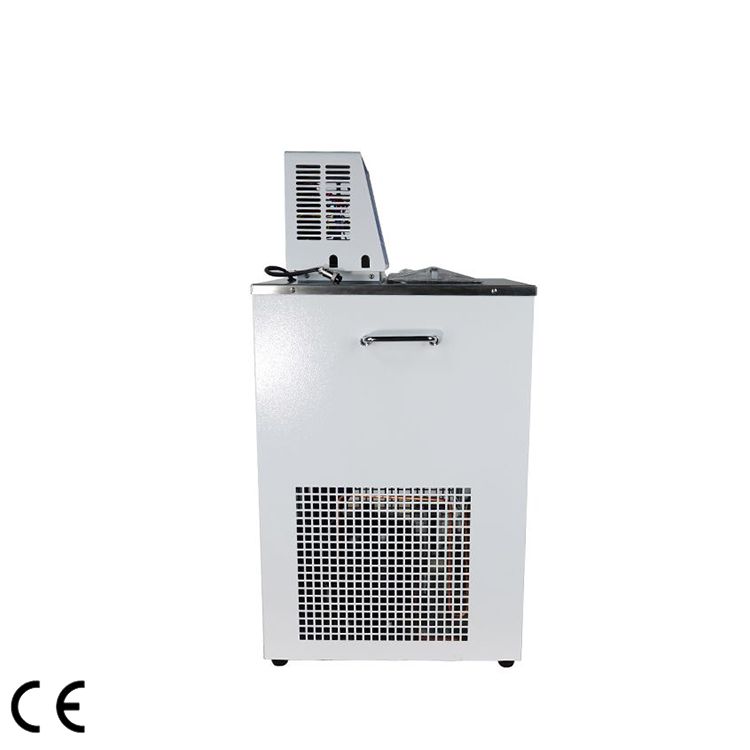

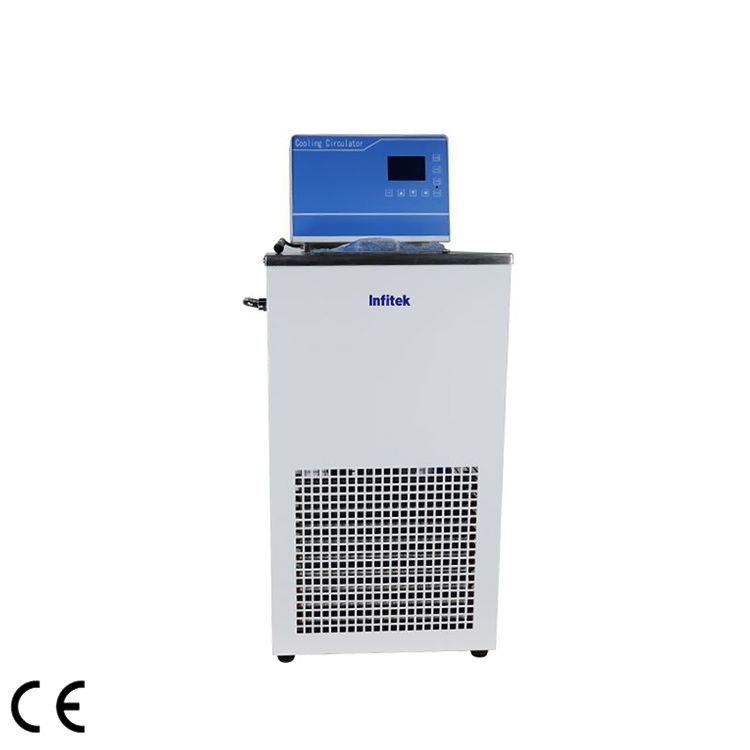

Recirculating Chiller, RCHL-L Series
Description
DESCRIPTION
DESCRIPTION
Recirculating Chiller
- Built-in new generation temperature control program to ensure stable operation of the equipment.
- Fully enclosed compressor cooling system withoverheating and over current protection.
- With external circulating pump, can be established the second constant temperature field.
- Withtiming shutdown function, shutdown time can be arbitrarily setwithin 0 to 999 hours.
- Intelligent PID control, continuous work, easy operation.
SPECIFICATIONS
SPECIFICATIONS
| Model | Temp.Range(℃) | Volume(L) | Cooling Consumption(W) | Whole Consumption（W) | Temp. Stability (℃) |
Pump Flow (L/min) |
Limit Temp. (℃) |
Opening Dimension (L*W)(mm) |
Internal Dimension (L*W*H)(mm) |
External Dimension (L*W*H)(mm) |
N.W. (kg) |
| RCHL-L10-5 | -10~RT | 5 | 350 | 300 | ±0.5 | 15 | -15 | 180*140 | 280*220*120 | 400*320*660 | 22 |
| RCHL-L10-15 | 15 | 800 | 600 | -20 | 180*140 | 300*230*200 | 400*345*820 | 30.5 | |||
| RCHL-L10-20 | 20 | 1000 | 800 | -20 | 300*220 | 400*320*180 | 485*400*925 | 43 | |||
| RCHL-L10-30 | 30 | 1500 | 1200 | -20 | 300*220 | 400*320*230 | 485*400*925 | 45 | |||
| RCHL-L10-50 | 50 | 3000 | 1800 | -20 | 330*320 | 500*400*250 | 630*560*1010 | 49 | |||
| RCHL-L15-5 | -15~RT | 5 | 300 | 600 | ±0.5 | 15 | -25 | 180*140 | 280*220*120 | 400*320*660 | 22 |
| RCHL-L15-10 | 10 | 600 | 600 | -25 | 180*140 | 280*220*120 | 400*345*820 | 30.5 | |||
| RCHL-L20-5 | -20~RT | 5 | 180 | 600 | ±0.5 | 15 | -25 | 180*140 | 280*220*120 | 400*320*660 | 22 |
| RCHL-L20-10 | 10 | 500 | 800 | -25 | 180*140 | 280*220*165 | 400*345*820 | 30.5 | |||
| RCHL-L20-20 | 20 | 1300 | 800 | -25 | 300*220 | 400*320*180 | 485*400*925 | 43 | |||
| RCHL-L20-30 | 30 | 1600 | 1200 | -25 | 300*220 | 400*325*230 | 485*400*925 | 45 | |||
| RCHL-L20-50 | 50 | 3500 | 1800 | -25 | 330*320 | 500*400*250 | 630*560*1010 | 49 | |||
| RCHL-L30-5 | -30~RT | 5 | 150 | 1000 | ±0.5 | 15 | -35 | 180*140 | 280*220*120 | 400*345*820 | 34.5 |
| RCHL-L30-10 | 10 | 300 | 1000 | -40 | 180*140 | 280*220*165 | 400*345*820 | 35 | |||
| RCHL-L30-20 | 20 | 1400 | 1200 | -40 | 300*220 | 400*320*180 | 485*400*925 | 49 | |||
| RCHL-L30-30 | 30 | 1700 | 1200 | -40 | 300*220 | 400*320*230 | 485*400*925 | 51.6 | |||
| RCHL-L30-50 | 50 | 3800 | 1800 | -40 | 330*320 | 500*400*250 | 630*560*1010 | 52 | |||
| RCHL-L40-5 | -40~RT | 5 | 200 | 1000 | ±0.5 | 15 | -45 | 180*140 | 280*220*120 | 400*345*820 | 34.5 |
| RCHL-L40-10 | 10 | 400 | 1000 | -45 | 180*140 | 280*220*165 | 400*345*820 | 35 | |||
| RCHL-L40-20 | 20 | 1700 | 1200 | -50 | 300*220 | 400*320*180 | 485*400*925 | 49 | |||
| RCHL-L40-30 | 30 | 4200 | 1800 | -50 | 300*220 | 400*320*230 | 485*400*925 | 51.6 | |||
| RCHL-L40-50 | 50 | 4800 | 2100 | -50 | 330*320 | 500*400*250 | 630*560*1010 | 54 |
