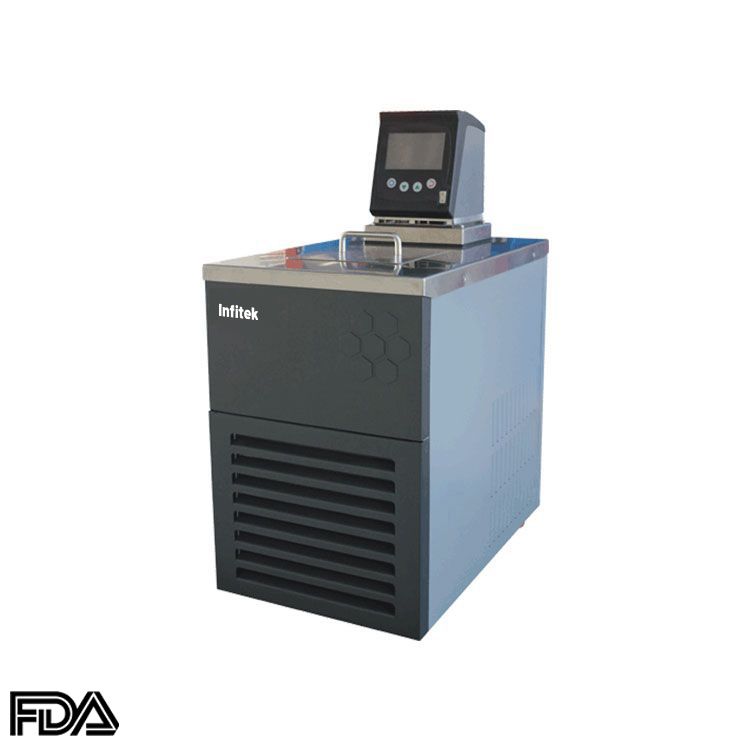

Recirculating Chiller, RECL5-10

  1. Temperature Control Range: 5℃ to 100℃
  2. Temperature Control: Fuzzy PID
  3. Cooling capacity: 1500W
  4. Refrigerant: R134a
  5. Pump flow rate: 10L/min

Share the product


  • High-brightness, large color 5.5-inch LCD display.
  • Molded water tank, uni-body with 316 stainless steel, anti-rust, anti-corrosion.
  • Motor driven mold turbine quiet pump 10L/min, fully realized hydro-power separation.
  • Compact structural layout with removable grille for easy maintenance and drainage.
  • Using advanced fuzzy PID temperature control technology, it can accurately and quickly achieve stable temperature control effect.
  • Compressor refrigeration, R134a environmentally friendly refrigerant, avoiding environmental pollution and harm to experimenters.
  • Multiple protection design: over current protection, high and low temperature protection, over temperature protection, low liquid level sound and light alarm, prevent dry burning protection.


Model RECL5-10
Temperature Control Range 5℃ to 100℃
Temperature Stability ±0.05℃
Temperature Control Fuzzy PID
Temperature sensor PT100
Display resolution 0.1 °C
Pump flow rate 10L/min
Cooling capacity 1500W
Refrigerant R134a
Pump capacity Pressure 0.35bar
Dimensions L*W*H (cm) 555mm*350mm*750mm
Power supply 220 VAC ±10% 50Hz
Working condition 10℃~25℃
Weight 40kg
