Refrigerated Centrifuge, High Speed, CFGR-24JL/CFGR-24J

  • Max. speed/RCF: 23000 rpm/36795×g, 24000 rpm/40217×g
  • Max. capacity: 4×300 mL, 4×750 mL
  • Temperature range: -20℃-40℃

Share the product


1. Universal centrifuge with selectable options (optional fixed-angle rotor, swing-bucket rotor, microplate rotor).

2. Silent operation.

3. Microprocessor controlled centrifuge with variable speed and time setting.

4. LCD display for easy setting and readability across multiple parameters (rotor model, temperature, time, RCF and RPM).

5. Soft touch keypad for parameters setting, special key for RCF.

6. Brush-less AC motor for maintenance free long life.

7. Double lids and double locks, lid locking and holding during rotor run for safe operation.

8. User programmable-user can save and run up to 20 user-defined programs.

9. Adjustable ramp & brake speeds (up to 15 speed selection).

10. Count down at set RPM & one touch short spin operation.

11. Automatic imbalance detection with audible alarm & overspeed protection.

12. User can set parameters when centrifuge is in operation (not program).

13. The shortest acceleration/braking time less than 30s.

14. Pre-cooling function, quick cooling function- rotor chamber attains 4°C from ambient temperature in 10 minutes.

15. Stand-by function maintains the constant temperature.

16. Danfoss compressor.


   High Speed Refrigerated Centrifuges CFGR-24JLCFGR-24J (1) High Speed Refrigerated Centrifuges CFGR-24JLCFGR-24J (2)

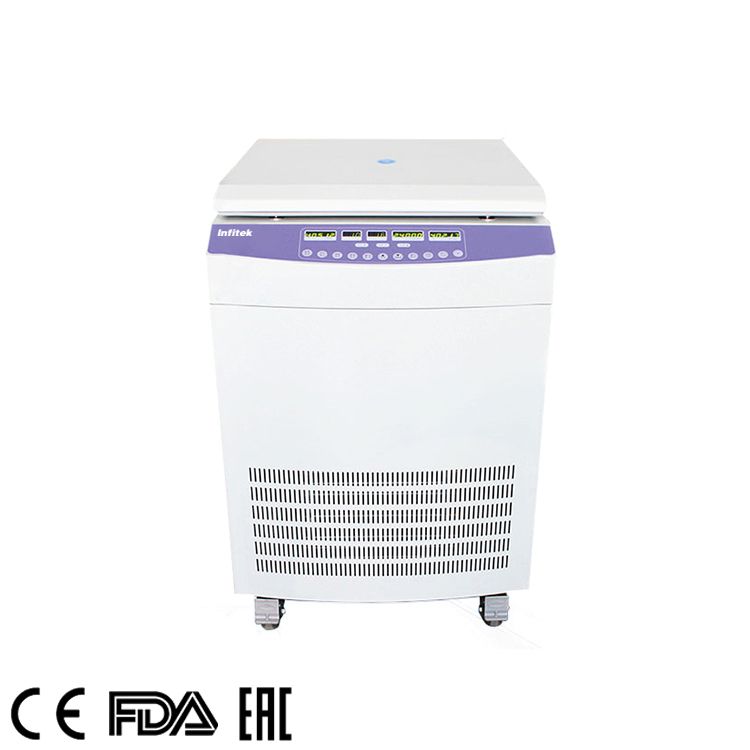

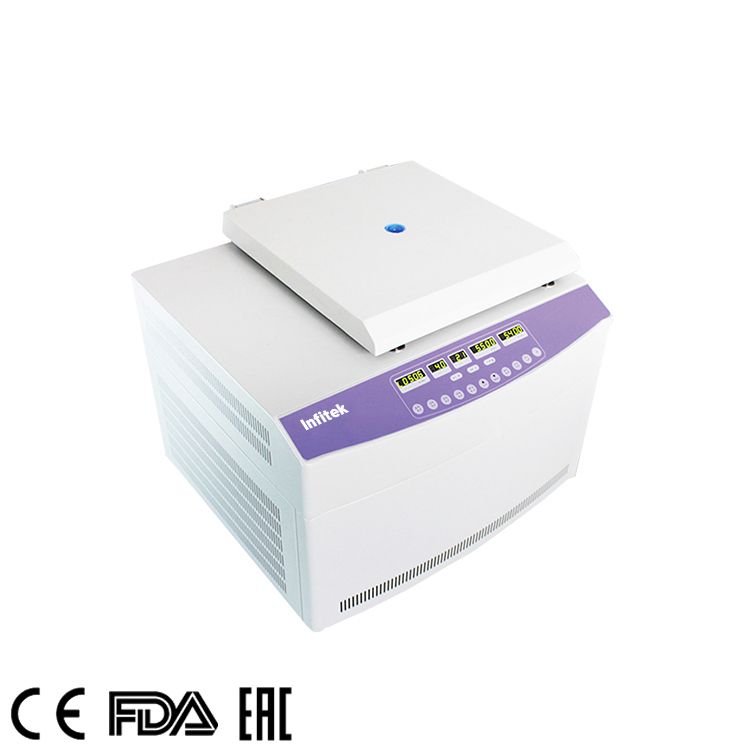

 CFGR-24JL             CFGR-24J
Model CFGR-24J CFGR-24JL
Max. speed 23000 rpm 24000 rpm
Max. RCF 36795×g 40217×g
Max. capacity 4×300 mL 4×750 mL
Speed accuracy ±20 rpm
Timer 1 s-99 min, continuous operation, one touch short spin operation
Noise ≦60 dB
Temperature range -20℃-40℃
Power 220V 50Hz
Weight 95 kg 150 kg
Dimensions (W×D×H) 570mm×590mm×490mm 600mm×790mm×890mm

Rotor configuration

Fixed-angle rotor model Max. capacity Parameter CFGR-24J CFGR-24JL
H0.512 12×0.5 mL Max. rpm 23000 rpm 24000 rpm
Max. RCF 32625×g 32625×g
H0.524 24×0.5 mL Max. rpm 18000 rpm 18000 rpm
Max. RCF 24631×g 24631×g
H0212 12×1.5 mL/2.2 mL Max. rpm 22000 rpm 23000 rpm
Max. RCF 36795×g 40217×g
H0224 24×1.5 mL/2.2 mL Max. rpm 16500 rpm 16500 rpm
Max. RCF 25871×g 25871×g
H0236 36×1.5 mL/2.2 mL Max. rpm 14000 rpm 14000 rpm
Max. RCF 34237×g 34237×g
H0512 12×5 mL Max. rpm 16500 rpm 16500 rpm
Max. RCF 25871×g 25871×g
H1012 12×10 mL Max. rpm 15000 rpm 15000 rpm
Max. RCF 22891×g 22891×g
H1508 8×15 mL Max. rpm 12500 rpm 12500 rpm
Max. RCF 15721×g 15721×g
H30068 6×30 mL Max. rpm 15000 rpm 15000 rpm
Max. RCF 21885×g 21885×g
H5006 6×50 mL Max. rpm 13000 rpm 13000 rpm
Max. RCF 19838×g 19838×g
H8504 4×100 mL Max. rpm 12000 rpm 12000 rpm
Max. RCF 16904×g 16904×g
H0.548 48×0.5 mL Max. rpm 16000 rpm 16000 rpm
Max. RCF 22324×g 22324×g
H0.232 32×0.2 mL Max. rpm 12000 rpm 12000 rpm
Max. RCF 10464×g 10464×g
H8506 6×100 mL Max. rpm 12000 rpm 12000 rpm
Max. RCF 19320×g 19320×g


Model CFGR-24J CFGR-24JL
Swing out rotor 4×300 mL, 4500 rpm, 3781×g 4×750 mL, 4200 rpm, 3550×g
Adapter1: (bucket) 4×250 mL, 4×100 mL, 12×50 mL (round bottom), 40×10 mL(round bottom),20×15 mL (conical), 56×5 mL 4×500 mL, 4×250 mL, 12×100 mL (round bottom), 20×50 mL (conical),  56×15 mL/20 mL (round bottom), 76×15 mL, 96×5 mL, 144×5 mL
Microplate 2×2×96
