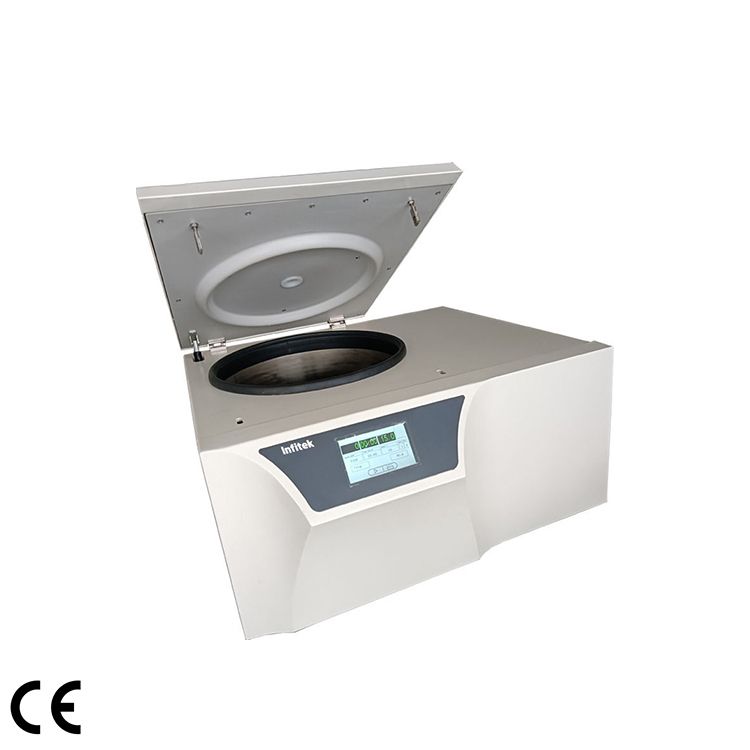

Refrigerated Centrifuge, High Speed, CFGR-B21B

  1. Max. Speed: 21000r/min
  2. Max. RCF: 30640×g
  3. Max.Capacity: 4×750ml
  4. Speed Accuracy: ±30r/min
  5. Temperature Control Range: -20℃~40℃

Share the product

Description

It is suitable for experiments in biopharmaceuticals, pharmaceuticals, cell biology and other fields, for the isolation and purification of microbial organisms, cellular proteins, mycobacteria and immune.

Advantages

1. Display: 5-inch high-definition touch screen, simple operation, intuitive display;

2. Security: Automatic identification of 9 different rotors, eliminate the user misuse of security risks (Optional function);

3. Control: It has 9 files of acceleration and 10 files of deceleration level, which can effectively prevent secondary suspension and have a good centrifugal effect;

4. Program: 15 groups of programs can be stored for users to use;

5. Performance: AC frequency conversion motor, high precision speed control;

6. Safety: There are various protections such as Overspeed, door protection, imbalance protection, etc. to ensure the safety of human and machine;

7. Convenience: Free switching of speed and RCF;

8. Particularity: Special air duct to ensure the rotor works under normal temperature;

9. Speciality : Airtight rotor, effectively prevent aerosols.

Specifications

Model CFGR-B21B
Max. Speed 21000r/min
Max. RCF 30640×g
Max.Capacity 4×750ml
Speed Accuracy ±30r/min
Time Setting 1min~99 min59sec,Continuous centrifuge : Hold
Temperature Control Range -20℃~40℃
Temperature Control Accuracy ±1℃
Compressor Imported high-performance compressor unit, CFC-free refrigerant
Power Supply AC220±22V,50/60Hz,16A or AC110±20V,50/60Hz,32A
Noise ≤60dB(A)
Dimensions(L*W*H) 720×743×410mm
Net Weight 110Kg
Package Dimension (W*D*H)(mm) 960*810*590

Rotor (optional)

Rotor Type Max Speed(rpm) Max RCF(×g) Max Capacity Tube Size(mm)
Angle Rotor 21000 26750 18×0.5ml Φ8×32
Angle Rotor 21000 30640 12×1.5/2ml Φ10×42
Angle Rotor 16500 24890 24×1.5/2ml Φ10×42
Angle Rotor 15000 25650 32×1.5/2ml Φ10×42
Angle Rotor 15000 24270 48×1.5/2ml Φ10×42
Angle Rotor 16500 19170 12×5ml Φ13×53
Angle Rotor 15000 23120 12×10ml Φ16×83
Angle Rotor 15000 23640 8×15ml Φ17×121
Angle Rotor 14000 22022 12×15ml Φ17×121
Angle Rotor 15000 23640 6×50ml Φ29×120
Angle Rotor 12000 15610 8×50ml Φ29×120
Angle Rotor 12000 15465 4×100ml Φ37.9×119
Angle Rotor 10000 11808 6×100ml Φ37.9×119
Swing Rotor 4200 3500 4×250ml Φ29×120
Swing Rotor 4000 3040 4×500ml Φ80×137
Swing Rotor 4000 2810 4x8x15ml Φ17×121
Swing Rotor 4000 2810 4×100ml Φ37.9×119
Swing Rotor 4000 3500 4×750ml Φ99×137
Swing Rotor(microplate) 4000 2300 2×2×96well
