- Max. Speed: 6000rmp/min
- Max. RCF: 4390×g
- Max. Capacity: 4×750mL
- Temperature Setting: -20℃-40℃

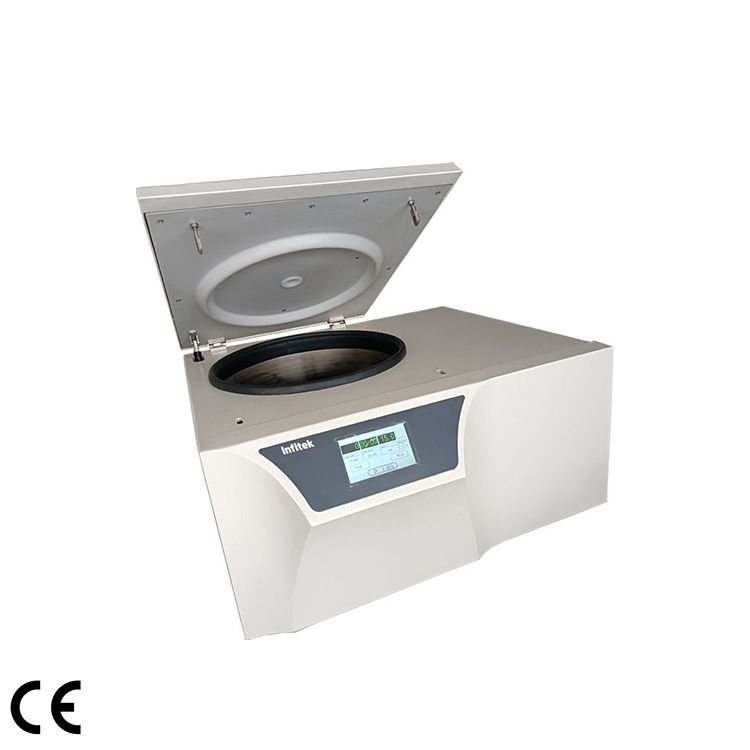

Refrigerated Centrifuge, Low Speed, CFGR-5BL
Description
It is widely used in clinical, biology, genetic engineering, immunology and other fields, and is suitable for separation of solutions such as radioimmunity, water treatment, biology, chemistry, biopharmaceutical, blood product, etc.
Advantages
1. 5-inch high-definition touch screen, easy to operate and intuitive display;
2. Automatically identify 4different rotors to eliminate potential safety hazards caused by user misoperation(Optional function);
3. It has 9 files of acceleration and10 files of deceleration level,which can effectively prevent secondary suspension and have a good centrifugal effect.
4. 15 groups of programs can be stored for users to use;
5. AC variable frequency motor, high speed control precision, imported environmental protection compressor;
6. There are various protections such as overspeed, door protection, imbalanceprotection, etc. to ensure the safety of human and machine;
7. Free switching of speed and RCF;
Specifications
Model | CFGR-5BL |
Max. Speed | 6000rmp/min |
Max. RCF | 4390×g |
Max. Capacity | 4×750mL |
Motor | AC frequency conversion motor |
Speed Accurancy | ±30r/min |
Time Setting | Timed centrifugation: 1min~99 min59sec
Continuous centrifugation: Hold |
Temperature Setting | -20℃~+40℃ |
Temperature Accuracy | ±1.0℃ |
Power Supply | AC220±22V 50/60Hz 16A |
Noise | < 60dB(A) |
Dimensions(L×D×H) | 720×743×410(mm) |
Net Weight | 110kg |
Package Dimension (W*D*H) | 960*810*600mm |
G.W. | 125kg |
Rotor
No. | Max. speed (rpm/min) | Max. RCF
(×g) |
Rotor Type | Capacity | Dimension of Test Tube (mm) |
NO.1 | 4000 | 2810 | Swing Rotor | 4x2x100ml
(It can be equipped with adapter) |
Φ37.5×123 |
4000 | 2810 | 4x100ml
(It can be equipped with adapter) |
Φ37.5×123 |
||
4000 | 2810 | 4x2x50ml | Φ29×107 | ||
4000 | 2810 | 4x50ml | Φ29×107 | ||
4000 | 2810 | 4x8x15ml | Φ17×118 | ||
4x6x15ml | Φ17×118 | ||||
4x4x15ml | Φ17×118 | ||||
NO.2 | 4200 | 3500 | 4x250ml | Φ62×110 | |
NO.3 | 4000 | 3040 | 4×500ml | Φ80×137 | |
Adapter | 4*4*50ml | ||||
NO.4 | 4000 | 3180 | Swing Rotor | 4×750ml | Φ99×130 |
NO.5 | 4000 | 2000 | Microplate Rotor | 2×2×96 well plate | Microplate |
NO.6 | 5500 | 3170 | Angle Rotor | 6×50ml | Φ29×120 |
NO.7 | 6000 | 4390 | Angle Rotor | 12×10ml | Φ16×83 |
Adapter
