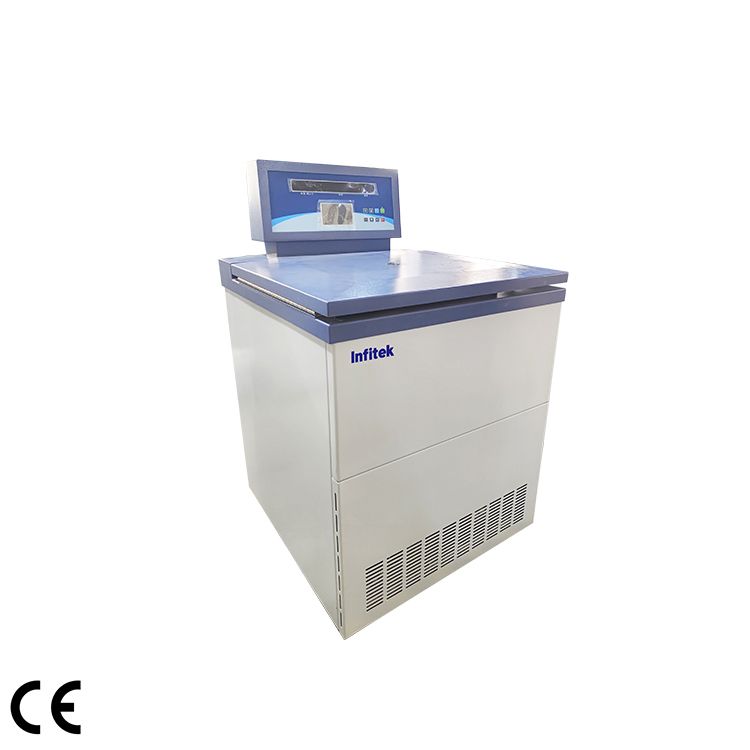

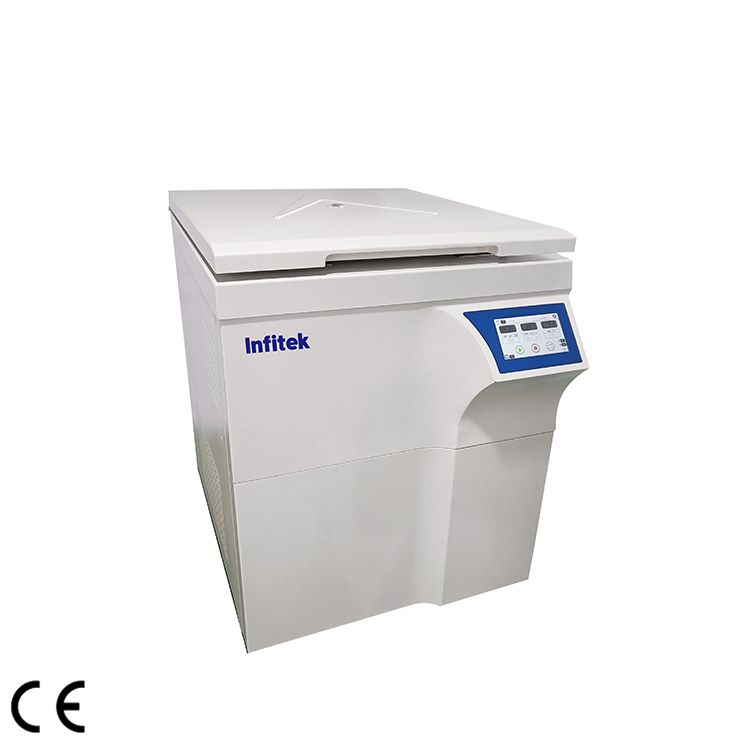

Refrigerated Centrifuge, Low Speed, CFGR-6DL

Max Speed: 6000r/min
Max RCF: 6680×g
Max Capacity: 6×1000ml

Share the product


This series of centrifuges is an advanced intelligent instrument with large capacity and refrigeration system. It is widely used for technology research and development in the fields of biochemistry, medical care, food safety, farming, blood bank, biological pharmacy, medicine productivity and so on.


Drive: Drived by brushless AC frequency motor with SOFT brake to avoid suspension.

Speed Control: The acceleration time to the maximum rotational speed is approx 14 s; The deceleration time from maximum rotational speed is approx 15 s.

Display: Microcomputer controlled with touching pad and LED & LCD display. The programs are stored automatically and RCF can be directly set.

Cooling: Totally CFC-free compressor with controlling valve for environment protection. It has features such as small vibration, fast cooling, low noise.

Rotor: With standby cooling, the rotor remains at the required temperature. Rotors are autoclavable at 121℃ for 20 minutes.

Body Structure: Premium steel housing and stainless steel chamber.

Safety Protection: Rotor recognition system(Optional function).It contains various safety protections including lid locking and holding during rotor on, over speed, over temp., unbalance.

Control: 10 rates of acceleration and deceleration (brake). 40 programs storage and recall. It offers hold-on and transient functions for diverse centrifugation.


Model CFGR-6DL
Max Speed 6000r/min
Max RCF 6680×g
Max Capacity 6×1000ml
No.34 Angle Rotor 6×300ml(6000r/min)RCF:5650×g
No.38 Angle Rotor 6×500ml(6000r/min)RCF:6680×g
No.70 Swing Rotor 6×1000ml(4200r/min)RCF:5100×g(Circular cup)
No.70 Swing Rotor 6×1000ml(4200r/min)RCF:5100×g(Square cup)
Speed Accuracy ±20r/min
Time Setting 1s~99h59min59s
Temp. Range -20℃~40℃
Temp. Accuracy ±1℃
Compressor High-performance compressor with CFC-free refrigerant
Noise ≤65dB
Motor Brushless AC frequency motor and microcomputer control
Power Supply AC 220V 50Hz 35A
Dimension (W×D×H) 830×720×1250mm
Weight 268kg
