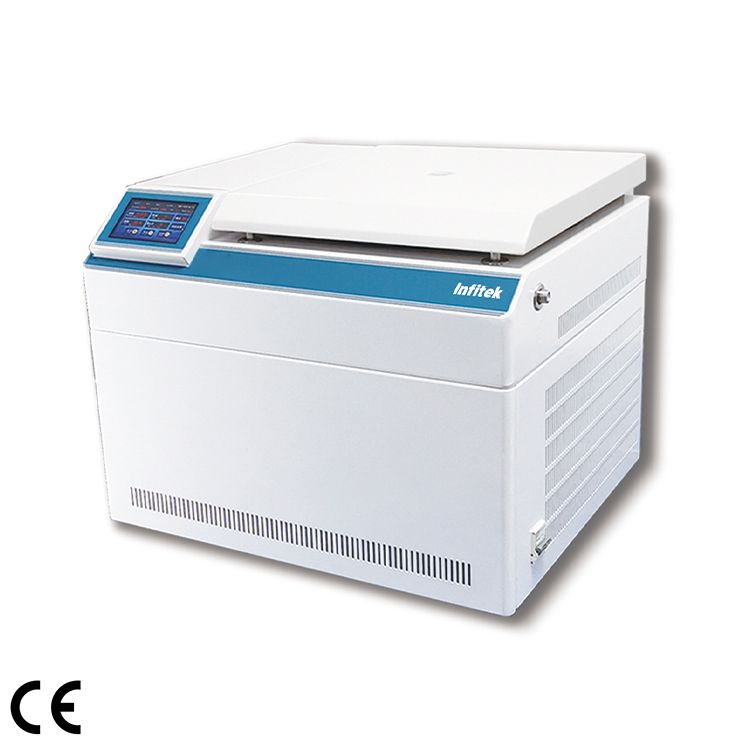

Low Speed Refrigerated Centrifuge, CFGR-B550JP

  • Max Speed: 6000rpm
  • Max RCF: 5502xg
  • Max Capacity: 300mlx4

Share the product

Category:

Description

Description

The centrifuge adopts microcomputer control, large-screen color LCD display, and full touch-screen operation interface to directly set the working program, RCF, speed, time, acceleration and deceleration, and rotor model.

Features

  • Brushless AC variable frequency motor drive and special drive module ensure the reliability of the circuit.
  • Double door cover lock system, starting means locking, ensuring safe operation.
  • Provides 20 kinds of working program storage, users can freely program and call theirworking parameters, which is easy to use and improves work efficiency.
  • Provide 15 kinds of acceleration/deceleration; User can set one group of acceleration and deceleration arbitrarily according to the sample requirements.
  • Two timing functions: at set rpm and start timing, and the jog is short spin function.
  • Differential centrifugation: Five differential centrifugation programs are reserved, and users can set them according to their needs.
  • Double-layer steel structure and stainless steel centrifugal chamber to avoid corrosion.
  • Automatic balance and imbalance protection. When an error or imbalance occurs, an audible alarm signal will be issued and the centrifuge will automatically stop running.
  • Easily adjust speed, RCF, time and temperature during operation without
  • The shortest acceleration / deceleration time≤
  • Countdown function : The countdown in seconds,real time display of remaining working time.
  • The centrifuge chamber is equipped with a condensate drainage hole to prevent water accumulation in the centrifuge chamber.
  • Prefabricated cooling function:In standby mode, the centrifuge can be continuously cooled to the set temperature.
  • Automatic standby function: When the temperature drops to the set temperature, the compressor will automatically standby to reduce energy consumption and extend the life of the compressor.
  • Quick cooling function:When the temperature drops from 21℃ to 4 ℃of biological zero, the cooling time is≤5 minutes.
  • The rotor can be autoclaved at 121°C for more than 2 hours. The rotor is a sealed angle and has high biological safety.Airtight angle rotor with high biological safety.
  • Automatically recognizes the magnetic rotor without manually setting the rotor model, and has over-speed protection function.
  • Can customize 485 communication interface function.

Specifications

Model CFGR-B550JP
Max.Speed 6000rpm
Max.RCF 5502xg
Max.Capacity 300mlx4
Speed Accuracy ±10rpm
Temp.Range -20℃~40℃
Temp.Accuracy ±1℃
Timing Range 1s~99h59min59s/Jog (short spin)
Sound Emission ≤60dB
Electricity AC 220V, 50Hz, 15A
Power 1500W
Dimension(W*D*H) 570*615*504mm
N.W./G.W. 95kg/130kg
Package Dimension(W*D*H) 790*790*670mm

Rotor Configuration

Rotor Capacity Max. Speed Max.RCF
NO1:

Swing Rotor

Cross

300mlx4 4500rpm 3645xg
Adapter:250mlx4,100mlx4, 50mlx12

10ml Vacuum Tube x40, 15ml(conical)x20

3/5/7ml Vacuum Tube x56, 5mlx76(RIA tube)

NO2:

Swing Rotor

Cross

100mlx8 4500rpm 3645xg
Adapter: 100mlx8, 50mlx8, 10ml Vacuum Tube x32
NO3:

Low Speed

Angle Rotor

50mlx6 6000rpm 5502xg
Microplate 96well×2 5000rpm 3530xg
96well×2×2 5000rpm 3530xg
