It is suitable for experiments in biology, medicine, agriculture and other fields, and is the first choice for genetic gene, protein nucleic acid PCR experiments.
- Max. Speed: 16500r/min
- Max. RCF: 21500×g
- Max.Capacity: 6×50ml
- Safety Protection

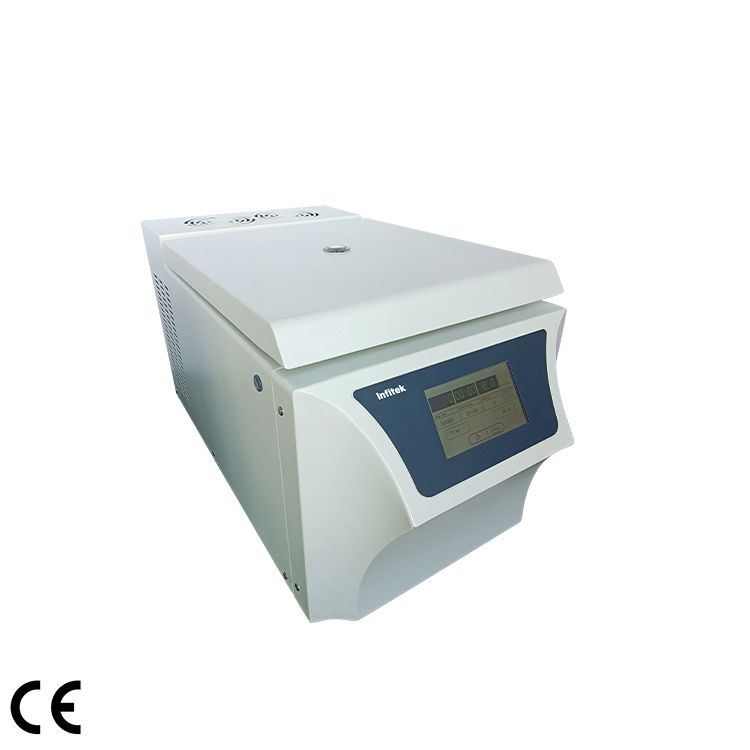

Refrigerated Centrifuge, High Speed, CFGR-B16B
Description
DESCRIPTION
DESCRIPTION
It is suitable for experiments in biology, medicine, agriculture and other fields, and is the first choice for genetic gene, protein nucleic acid PCR experiments.
Advantages
1. Display: 5-inch high-definition touch screen, easy to operate and intuitive display;
2. Safety Protection: Automatically identify 7 different rotors to eliminate potential safety hazards caused by user misoperation(Optional function);
3. Control: It has 9 files of acceleration and 10 files of deceleration level, which can effectively prevent secondary suspension and have a good centrifugal effect.
4. Scheme：15 groups of programs can be stored for users to use;
5. Performance: AC variable frequency motor, high speed control precision, imported environmental protection compressor;
6. Safety:There are various protections such as overspeed, door protection, imbalance protection, etc. to ensure the safety of human and machine;
7. Convenience:Free switching of speed and RCF；
8. Particularity：Special air duct to ensure the rotor works under normal temperature;
9. Speciality : Airtight rotor, effectively prevent aerosols.
SPECIFICATIONS
SPECIFICATIONS
| Model | CFGR-B16B |
| Max. Speed | 16500r/min |
| Max. RCF | 21380×g |
| Max.Capacity | 4×100ml |
| Speed Accuracy | ±20r/min |
| Time Setting | Timing centrifugation：1min～99 min59sec
Continuous centrifugation: Hold |
| Temperature Control Range | -20℃～40℃ |
| Temperature Control Accuracy | ±1℃ |
| Compressor | Imported high-performance compressor unit, CFC-free refrigerant |
| Power Supply | AC 220V 50Hz 15A |
| Package Dimension (W*D*H) | 900mm*440mm*550mm |
| Net Weight | 50kg |
Rotor (optional)
| Rotor Type | Max Speed(rpm) | Max RCF(g) | Max Capacity | Tube Size(mm) |
| Angle Rotor | 16500 | 18400 | 12×1.5/2ml | Φ10×42 |
| Angle Rotor | 15000 | 21380 | 24×1.5/2ml | Φ10×42 |
| Angle Rotor | 13000 | 19270 | 32×1.5ml | Φ10×42 |
| Angle Rotor | 12000 | 15370 | 8×15ml | Φ16×102 |
| Angle Rotor | 12000 | 10100 | 12×5ml | Φ14×54 |
| Angle Rotor | 12500 | 16060 | 12×10ml | Φ16×87 |
| Angle Rotor | 12000 | 15130 | 6×50mL (round bottom) | Φ29×105 |
| Angle Rotor | 12000 | 15130 | 6×50mL (tip bottom) | Φ29×105 |
| Angle Rotor | 10000 | 10620 | 4×100mL | Φ38×125 |
| Swing Rotor(microplate) | 4000 | 2000 | 2×2×48 well |
