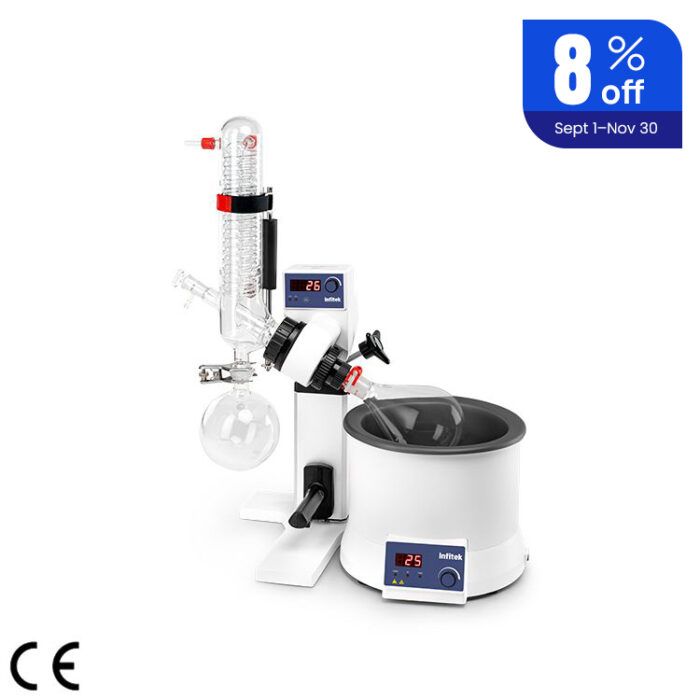

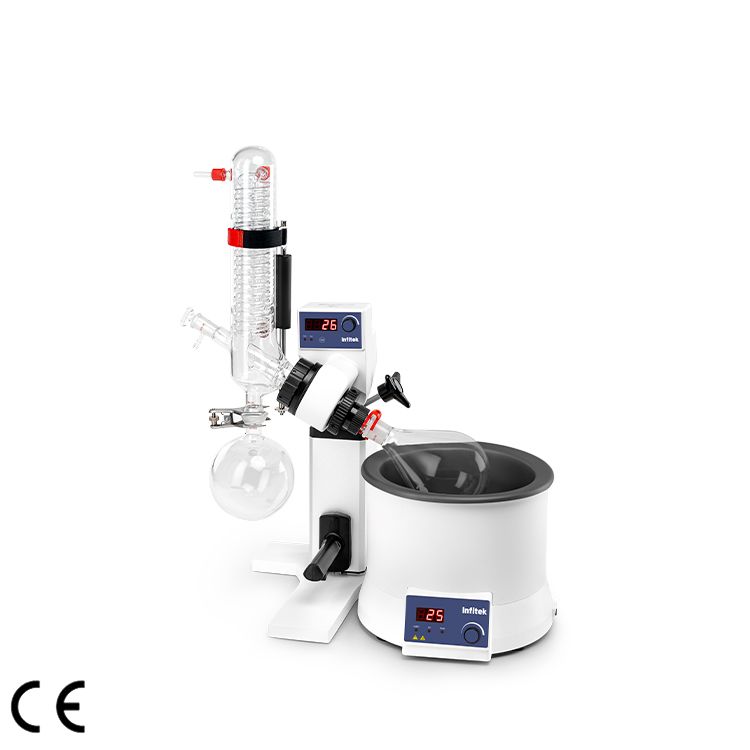

Rotary Evaporator, Lab Scale, REV100-S

  1. Evaporating Flask Volume: 50~3000ml
  2. Motor Type: Brushless motor
  3. Lift Mechanism: manual lifting
  4. LED Display

Share the product


• 5L heating bath with a wide temperature range (room temp.to180°C), independent temperature control,make it can be used separately.
• Water/oil heating mode can be changed only through a switch.
• Manual lift combined with auxiliary lift for precise positioning of the glassware.
• PID control ensures high temperature accuracy at ±1C (water).
• Overheating protection temperature at 220°C
• Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
• Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.
• Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
• Ejection mechanism ensures easy exchange of evaporating flask
• Adjustable immersion angle
• Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
• Remote function provides PC control and data transmission.
• Compatible with the entire range of REV100-P glassware.


Specifications REV100-S
Evaporating Flask Volume 50-3000ml

(Standard configuration-1000ml)(Optional thickened glass axis compatible with 3L evaporating flask)

Receiving Flask Volume 100-2000ml

(Standard configuration-1000ml)

Motor Type Brushless DC motor
Speed Range 20-200rpm
Display LED (speed, temperature, time)
Clockwise and Anti-clockwise Yes
Heating Temperature Range Room temp. to 180℃
Control Accuracy water: ±1℃ oil: ±3℃
Heating Power 1200W
Stroke Displacement Manual 110mm + auxiliary100mm
Time Setting Range 1-999min
Interval Time Setting Range 1~999s
Dimension (D×W×H) Main Unit: 440*320*450mm

Heating Bath: 300*300*240mm

Weight Main Unit: 7 kg

Heating Bath: 3 kg

Permissible Ambient Temperature 5~40℃
Permissible Relative Humidity 80%RH
Protection Class IP20
USB Interface Yes
Voltage/Frequency 100V~120V/200V~240V 50Hz/60 Hz
Power 1245 W
Supporting products REV100-S+ Diaphragm Vacuum Pump VACP-D410+Low Temperature Circulator RECL20-4.5+Vacuum Controller VACC100
