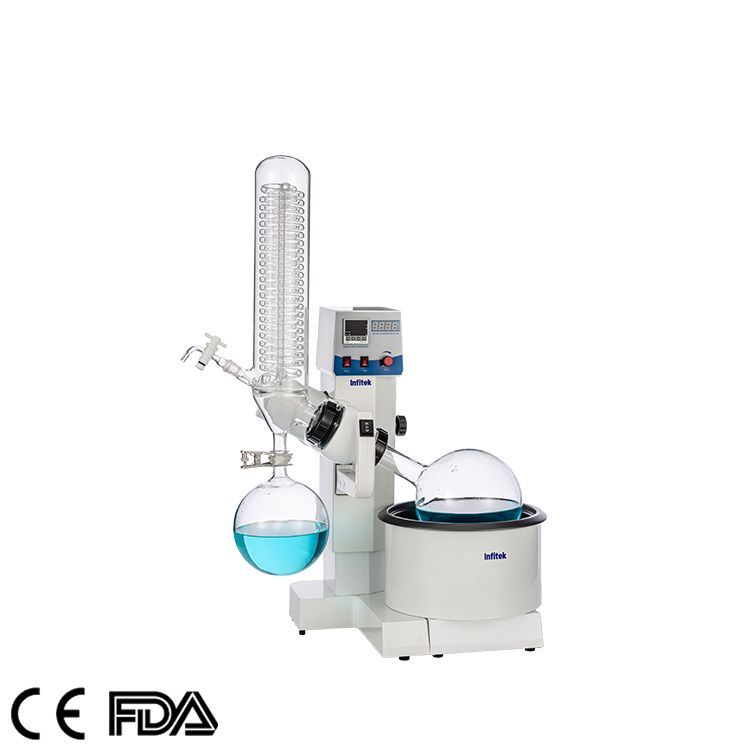

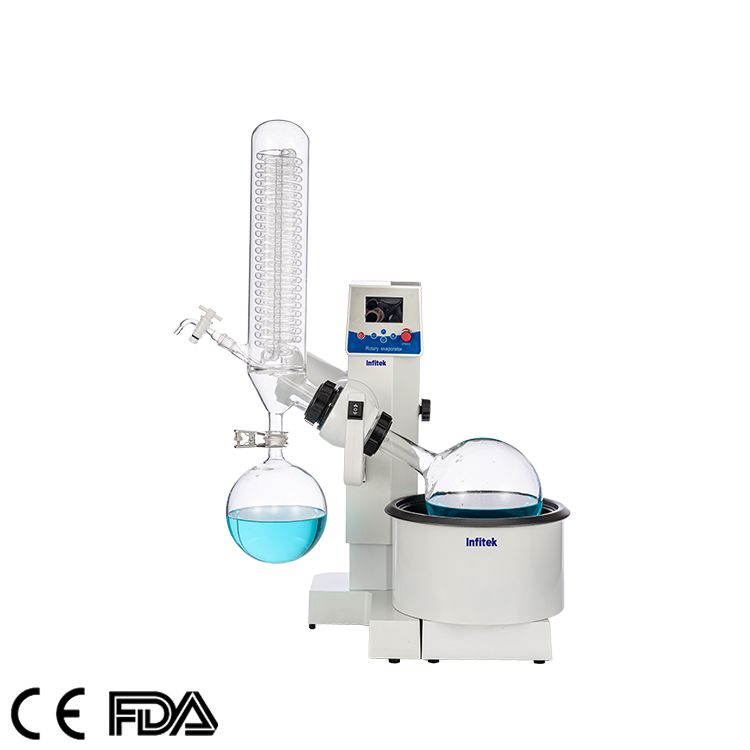

Rotary Evaporator, REV-3000 Series

  1. Rotary Flask Volume: 3L
  2. Rotation Speed: 0~200 RPM
  3. Temperature Range: RT ~99℃
  4. Lift Mechanism: Automatic
  5. LCD digital display

Share the product

Description

Introduction
The motor of REV-3000series has 0-200rpm step-less speed regulation and automatic lifting function, the main body uses the aluminum alloy material,smooth,safe,and beautiful.Revolving body is consisted of a set of stable and reliable micro motors,speed motors and integrated circuit control devices.In the role of electronic speed,it can be rotated stably in 0-200rpm range.

Characteristics

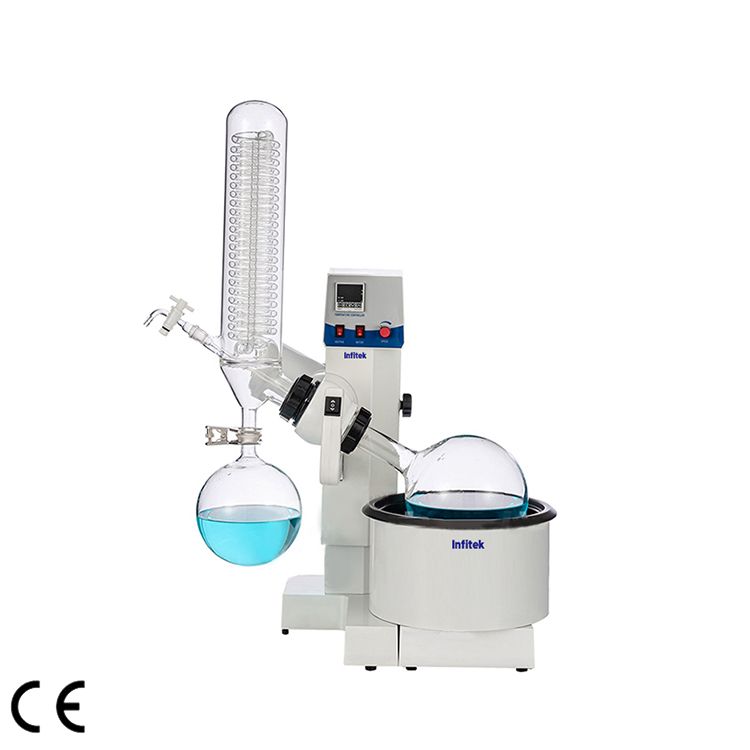

REV-3000A: temperature digital display

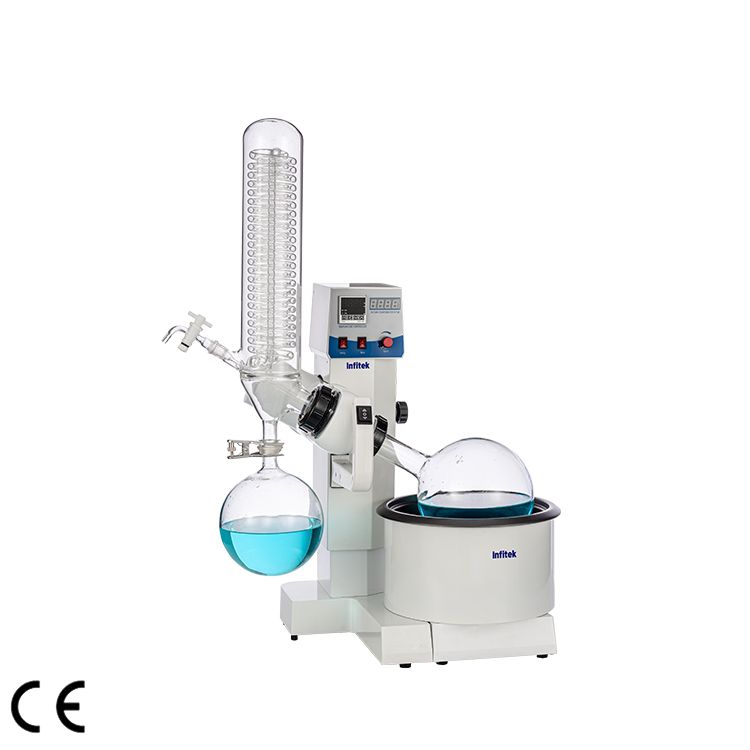

REV-3000B: temperature and speed dual-digital display

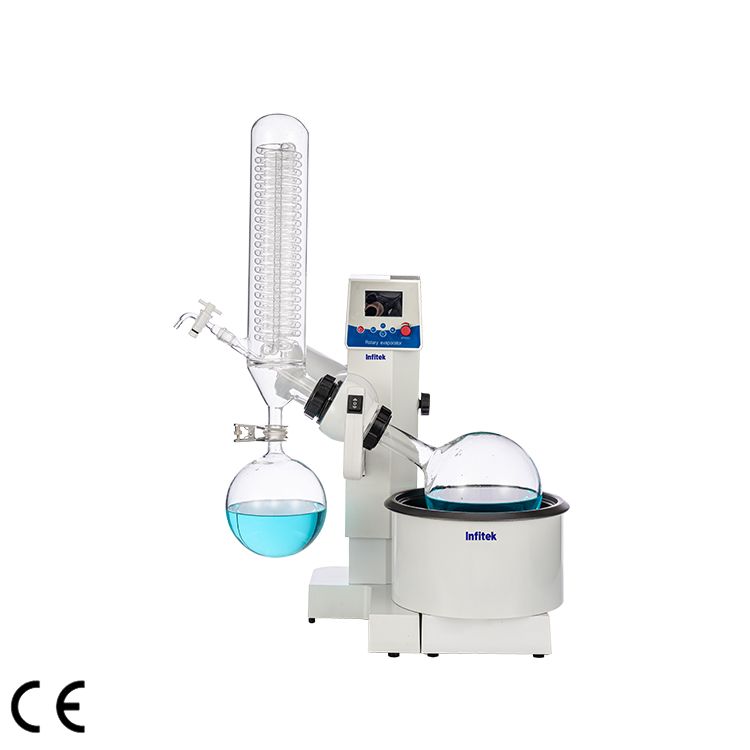

REV-3000C: temperature and speed LCD display

Specifications

Model REV-3000A REV-3000B REV-3000C
Screen Temperature digital display Temperature and speed dual-digital display Temperature and speed LCD display
Glass material GG-17
Stent material Aluminium alloy
Bath material Teflon composite pot, fully enclosed heating,

φ255mm*H155mm

Rotary flask volume 3L, standard mouth
Collecting flask volume 2L, ball mill mouth
Rotary power Brush motor 40W brushless motor
Rotary speed 0~200rpm
Heating power 1.2kW
Temperature control of bath Room temperature~99℃
Temperature precision ±1℃
Elevating power 20W
Elevating stroke 120 mm
Voltage/Frequency 220V/50Hz
Exterior Dimension (W*D*H)(mm) 690*490*830
Package Dimension (W*D*H)(mm) 640*640*500
 G.W.(kg) 27
Supporting products REV-3000A/REV-3000B/REV-3000C+Water Circulating Vacuum PumpVACP-WC3Y+Low Temperature Circulator RECL10-5
