Rotary Evaporator, REV-2000 Series

  1. Evaporating Flask Volume: 500~2000ml
  2. Motor Type: Brushless motor(2000B&C)
  3. Lift Mechanism: Automatic
  4. Rotation Speed: 0~180 RPM
  5. Temperature Range: RT ~99℃

Share the product


 REV-2000A                Rotary Evaporator, REV-2000 Series           Rotary Evaporator, REV-2000 Series
.REV-2000A                                      .REV-2000B                                  .REV-2000C

The motor of REV-2000series has 0-180RPM step-less speed regulation and automatic lifting function, the main body uses the aluminum alloy material, smooth, safe, and beautiful. Revolving body is consisted of a set of stable and reliable micro motors, speed motors and integrated circuit control devices. In the role of electronic speed, it can be rotated stably in 0-180RPM range.

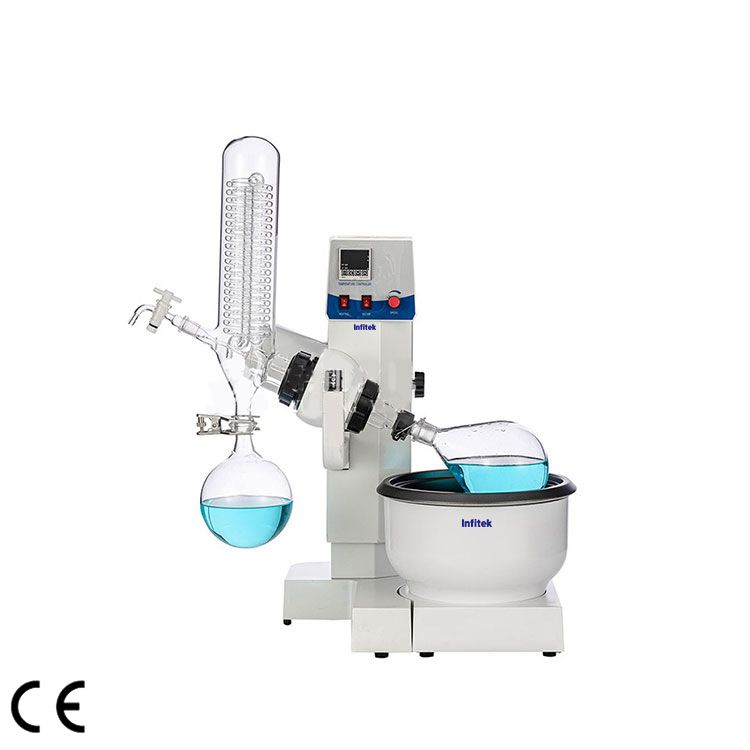

REV-2000A: temperature digital display

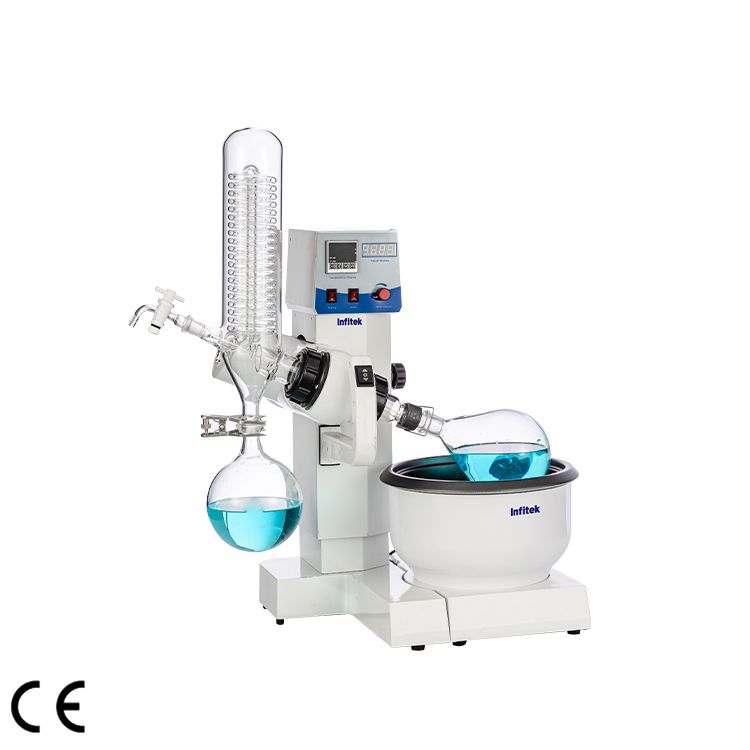

REV-2000B: temperature and speed dual-digital display

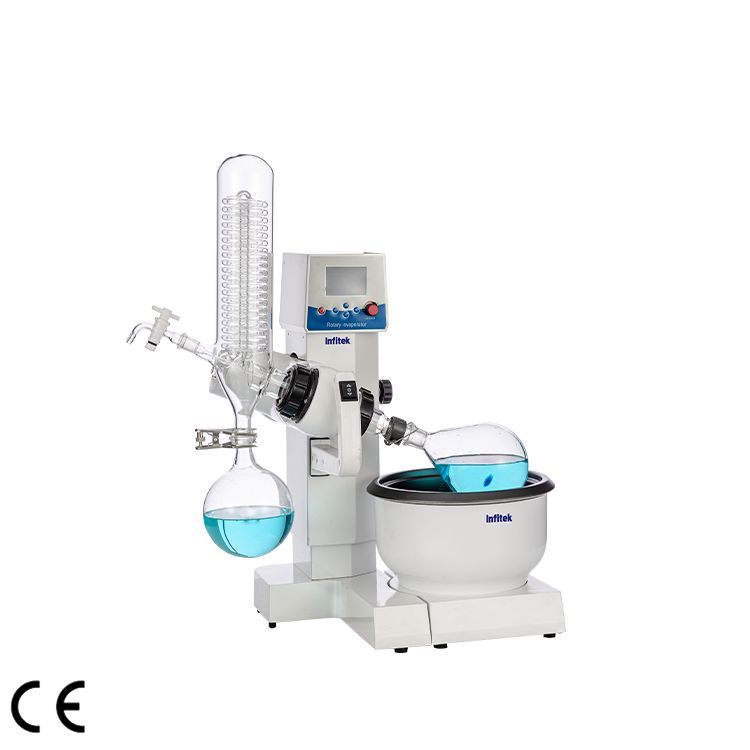

REV-2000C: temperature and speed LCD display


  1. Built-in vacuum controller, High vacuum performance
  2. PTFE sealing
  3. Adjust the ascending or descending of rotary flask automatically
  4. Digital display and control
  5. Easy assembling design: to be assembled within 30 minutes.
  6. Double layer cooling coils for improved condenser performance.
  7. High quality borosilicate glass 3.3 with excellent physical and chemical properties
  8. Cost-saving modular design and can be customized by clients’ requirements


Model REV-2000A REV-2000B REV-2000C
Glass material GG-17
Stent material Aluminium alloy
Bath material Teflon composite pot, fully enclosed heating
Rotary flask volume 0.5-2L 24# standard mouth
Collecting flask volume 1L 35# ball mill mouth
Rotary power 40W
Rotary speed 0-180rpm
Heating power 1.5 kW
Temperature control of bath Room Temperature~99℃
Temperature precision ±1℃
Elevating power 15W
Elevating stroke 120 mm
Voltage/frequency 220V/50Hz
Exterior size (L×W×H) (mm) 660×420×830
Packing size (L×W×H) (mm) 620×620×470
Packing weight (kg) 26
Supporting products  REV-2000A/REV-2000B/REV-2000C+Water Circulating Vacuum Pump VACP-WC3Y+Low Temperature Circulator RECL10-5
