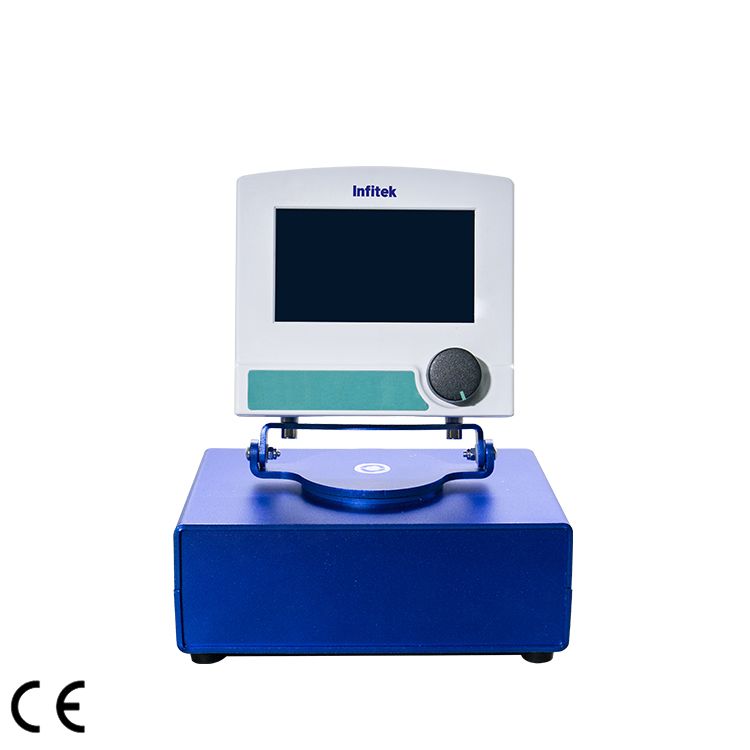

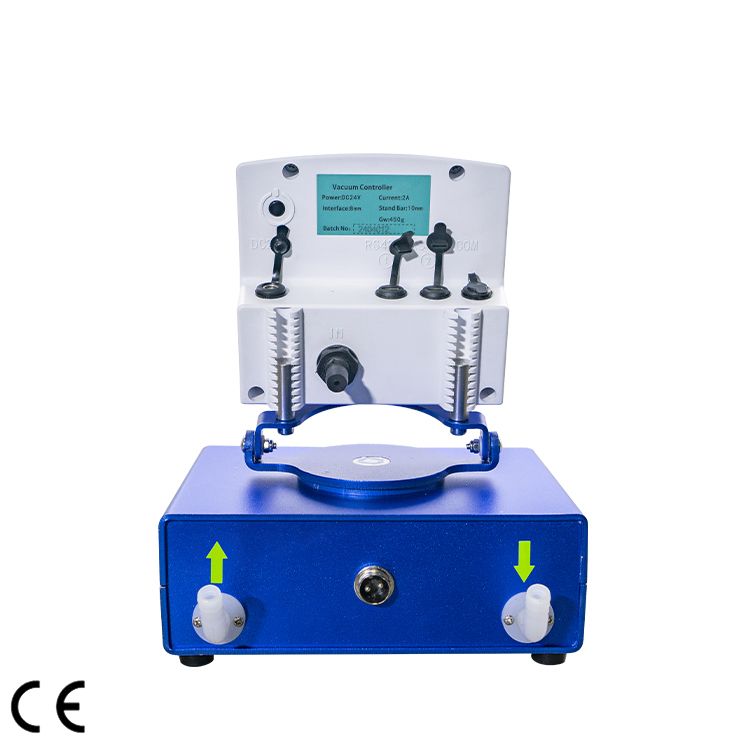

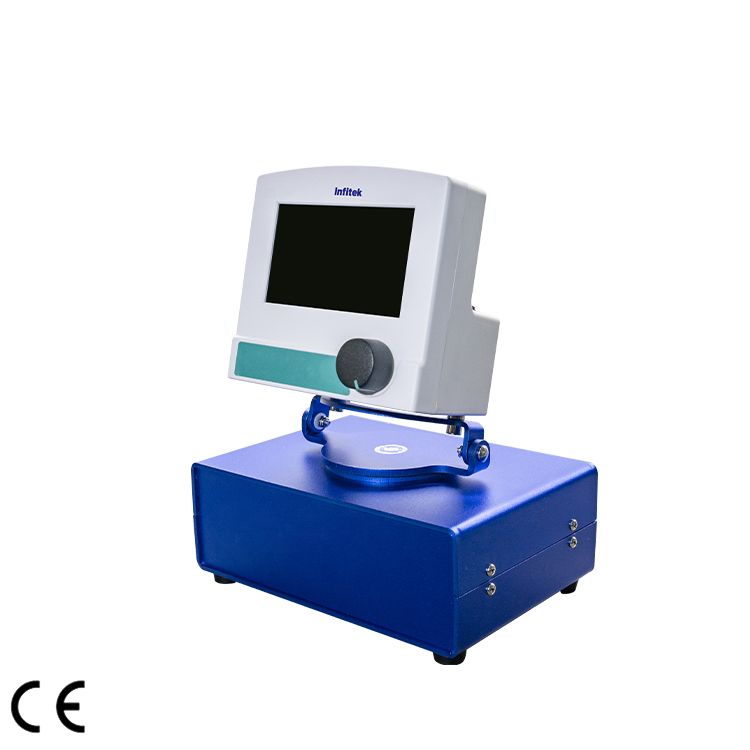

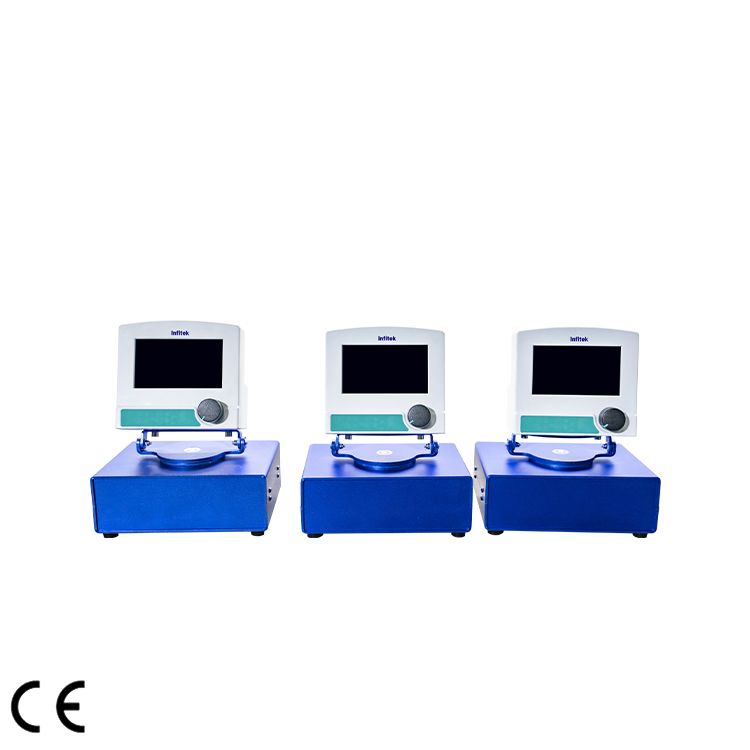

Vacuum Controller, VACC-Y1

  1. Measurement Range: 0mbar-1013mbar
  2. Adjustment Accuracy: ±1mbar
  3. Protection Class: IP21
  4. Pressure Unit:hPa, mbar, mmHg

Share the product

Category:

Description

The minimum controllable range of this product is 0.1kPa, which is mainly used by users to accurately adjust the saturation pressure during decompression reactions to meet users’ different application scenarios. It needs to match with diaphragm vacuum pumps, rotary vane vacuum pumps, circulating water vacuum pumps, or other vacuum equipment for usage.

Specifications

Model VACC-Y1
Measurement Range 0mbar-1013mbar
Adjustment Accuracy ±1mbar
Display 4.3-inch touch screen
Function Program control
Continuous pumping
One click pressure release
Connection 8mm Pagoda joint
Ambient Temperature 5-40 ℃
Relative Humidity 80%
Protection Class IP21
Pressure Unit hPa, mbar, mmHg
Language English
Overall Dimension(W*D*H) 130*100*164mm
N.W./G.W. 0.6kg/3kg
Package Dimension(W*D*H) 270*250*280mm
