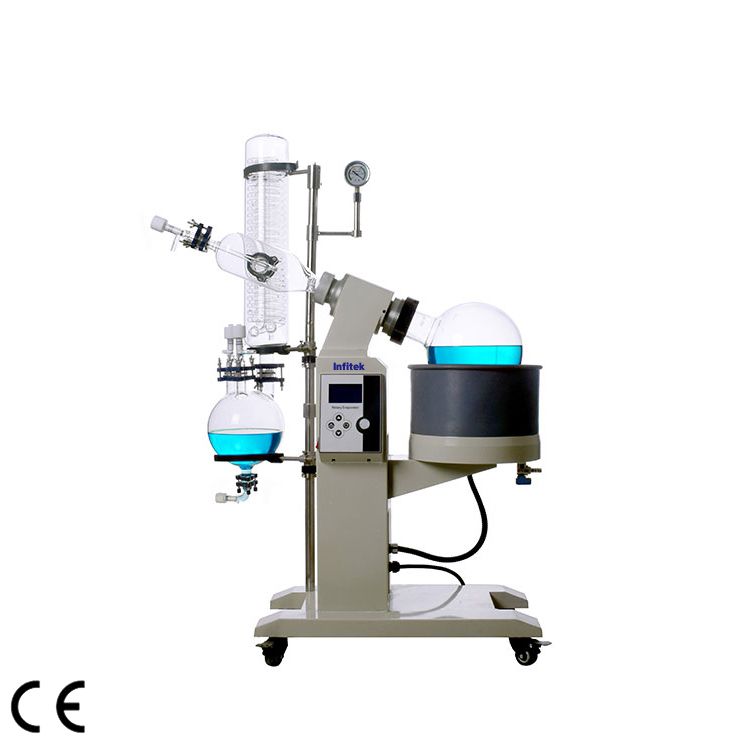

Rotary Evaporator, REV-1005II

  1. Evaporating Flask Volume: 5L
  2. Motor Type:Brushless motor
  3. Lift Mechanism: Automatic
  4. Rotation Speed: 0~120 RPM
  5. Temperature Range: RT ~180℃
  6. LCD Display

Share the product


  1. The parts in contact with the material are all made of high borosilicate glass (expansion coefficient 3.3) and PTFE materials, which have stable performance and are not easy to react with the materials.
  2. The stent is made of cold plate anti-corrosivespray + aluminum alloy material, and the bath is made of 304 stainless steel.
  3. The sealing system uses PTFE + fluororubber compound sealing.
  4. Oily vacuum pressure gauge shows real-time vacuum bypointer.
  5. The piston-type feeding valve is sleeved with PTFE extension tube, which can be continuously fed to the evaporation bottle under vacuum status.
  6. Uprightdouble-layer serpentine coil as condenser
  7. Large LCD display, which can control rotation, heating and lifting at the same time
  8. Using brushless deceleration booster motor as rotary motor, no spark and low noise. Lifting motor also uses this kind of motor
  9. Thermostat controlled bath, with PT100 sensor + stainless steel probe at the bottom of bath
  10. The bath can be lifted electrically. A silicone cover is equipped outside the bath for heat insulation and anti-scalding.
  11. Rotating and heating double fusessafety protection
  12. The collection bottle has a lower dischargingport, equipped with glass + PTFE independent discharge valve.
  13. There is a water dischargingvalve at the bottom of the bath to facilitate liquid discharge
  14. Vacuum switching valve can continuously collect and discharge materials without affecting the system vacuum and solution distillation
  15. Over-temperature protection function, when the actual temperature> setting temperature+5 ℃, the machine will automatically power off
  16. Anti-drying function, when the water level in the heating bath is lower than the heating tube, the machine will automatically power off
  17. If the power is suddenly cut off while the machine is working, the machine will automatically stop heating when the power is turned on again


Model REV-1005II
Voltage/Frequency 220V 50Hz/110V 60Hz
Total Power 2100W
Rotary motor power 60W
Lifting motor power 40W
Heating power 2000W
Vacuum 0.095Mpa
Rotary flask volume 5LΦ230mm/Φ80 flange port
Collecting flask volume 3LΦ195mm/upper Φ50 flange port×Φ35 flange port×2 pcs × lower Φ50 flange port
Rotary speed 0-120rpm/min
Temperature control range Room temperature-180℃
Temperature control accuracy ±1℃
Bath lifting stroke 140mm
Condenser dimension Φ120×600H(mm) side Φ50 flange port × lower Φ50 flange port
Condensing area 0.5㎡
Gas cylinder Left Φ35 flange port, side Φ50 flange port, rightΦ50 flange port
Material feeding valve Φ35 flange port, glass + PTFE valve, material feeding valve (pagoda joint) with 12mm outer diameter
Releasing valve Φ35 flange port×2, glass + PTFE valve, releasing valve (pagoda joint)with 12mm outer diameter
Material discharging valve Φ50 flange port, side discharging valve (pagoda joint) with 20mm outer diameter, 260mm from the ground
Vacuum nozzle Pagoda joint with 10mm outer diameter
In and out circulating nozzle of condenser coil Pagoda joint with 16mm outer diameter
Bath dimension/weight Φ295×175H(mm) about 12L
Overall dimension(W*D*H) 980×480×1260mm
Net weight 46KG
Packing dimension 800×450×1090mm wooden package 0.39m³
Packing weight 68KG
Supporting products REV-1005II+Water Circulating Vacuum PumpVACP-WC3Y+Low Temperature Circulator RECL10-5
