Description

Large LCD digital display with heatingtemperature, rotation speed, clockwise and Anti-clockwise, time information.
One-click automatic motor lifting (stroke180mm), smooth and silent.
Water/oil heating bath with widetemperature range from room temp. to 180°C.
Speed range from 10 to 150rpm, andinterval operation in clockwise and anticlockwise directions for drying process.
Three-layer high-efficiency condensing tubewith large condensation area and strong evaporation capacity, ensuring efficient sample recovery.
Patented connector for evaporating flask easy & quick installation.
PTFE double sealing ring with excellentsealing performance.
A switching valve for continuous collectionwithout compromising the system vacuum and solvent distillation.

Specifications

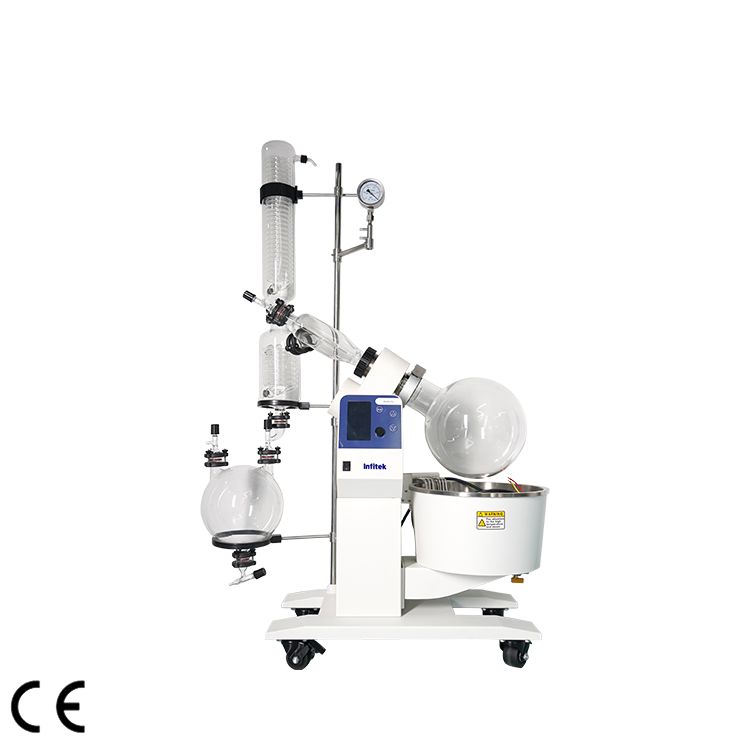

Model	REV200-P
Performance	Temperature range	Room temp. -180℃ (both water and oil)
	Control accuracy	Water: ±1℃ Oil: ±3℃
	Rotation speed	10rpm~150rpm
	Evaporation capacity	Max. 4.0L/h (water vapor volume)
	Ultimate vacuum	< 2.6 hPa
function	Temperature control method	Micro processer PID control
	Display	LCD (temperature/speed/clockwise and Anti-clockwise/time)
	Stroke displacement	Automatic 180mm
	Safely features	Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection
constitute	Sample flask	Round flask 20L
	Receiving flask	Round flask 10L with drain value
	Condenser	Two-section vertical triple serpentine condenser, cooling surface 1.2m²
specifications	Heating bath size	Φ450mm×240mm
specifications	Takeover caliber	Cooling/suction nozzle outer diameter 16mm, vacuum pump nozzle outer diameter 16mm
Dimension (D×W×H)		1160mm×600mm×1860mm
Power supply		220V/4600W/50Hz/60Hz
