- Heating mode: Surface heat conduction
- Surface Max. Temperature: 450℃
- Heating Element: Nickel chromium alloy wire

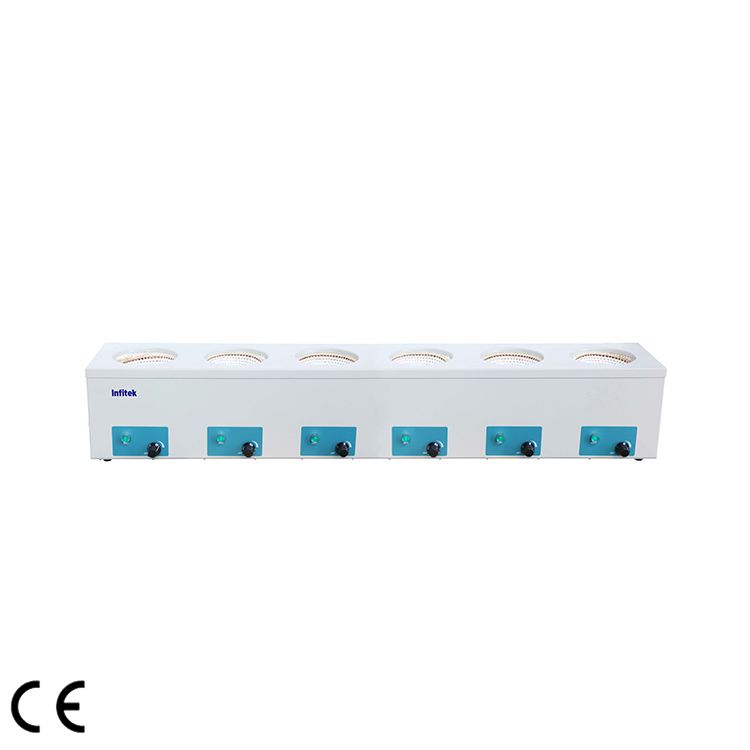

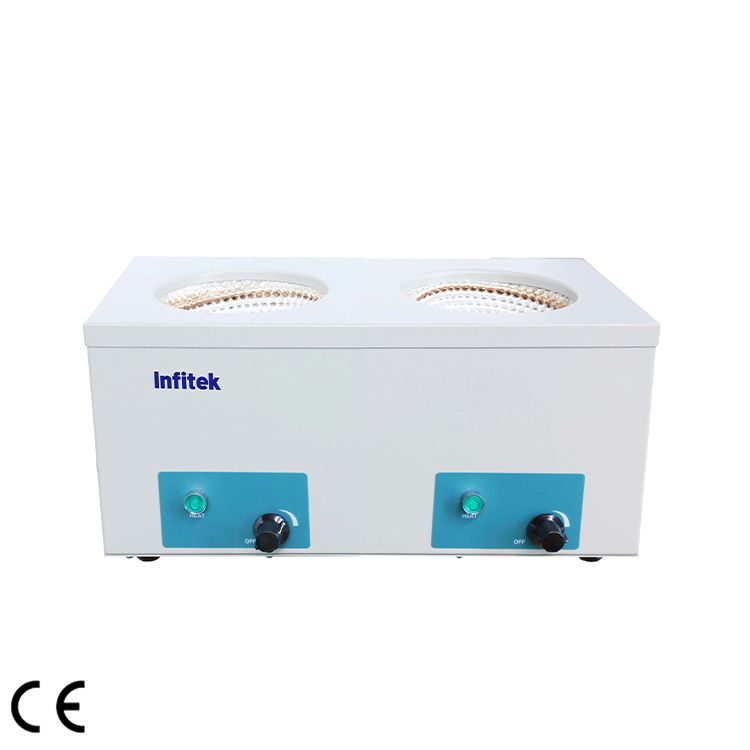

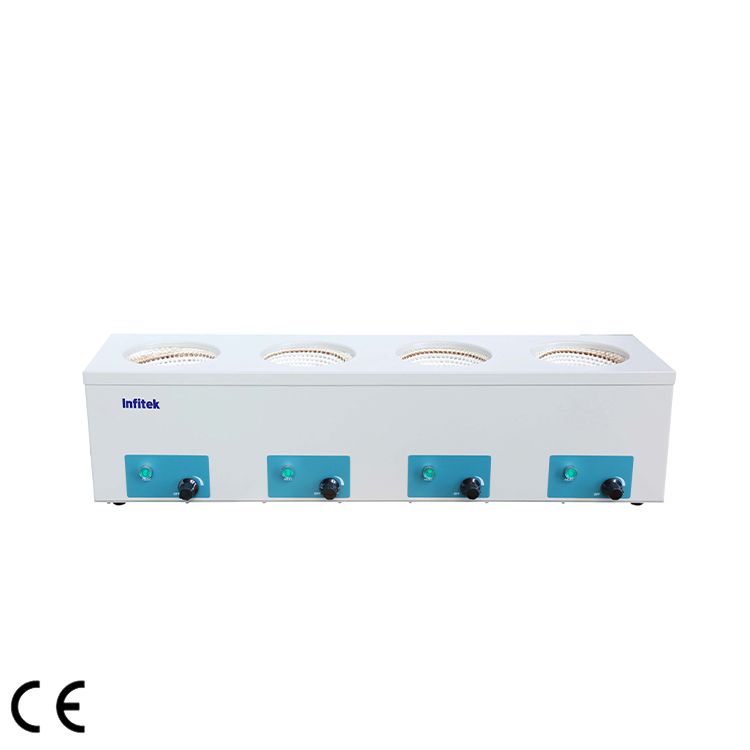

Several Rows Heating Mantles, HMD Series
Description
Electronic temperature regulation heating mode
Specifications
| Model | HMD-2P5 | HMD-2P10 | HMD-2P20 | HMD-4P5 | HMD-4P10 | HMD-4P20 | HMD-6P2 | HMD-6P5 | HMD-6P10 | HMD-6P20 | |
| Function | Specification (ml) |
2 × 250 |
2 × 500 |
2 × 1000 |
4 × 250 |
4 × 500 |
4 × 1000 |
6 × 100 |
6 × 250 |
6 × 500 |
6 × 1000 |
| Heating mode |
Surface heat conduction | ||||||||||
| Surface Max. temperature |
450℃ | ||||||||||
| Temp. range |
Rt+vfc20～250℃ | ||||||||||
| Structure | Heating element |
Nickel chromium alloy wire | |||||||||
| Outer shell |
Cold rolled steel plate, surface spraying | ||||||||||
| Heating Power （kW） |
2× 0.15 |
2× 0.25 |
2× 0.35 |
4× 0.15 |
4× 0.25 |
4× 0.35 |
6× 0.1 |
6× 0.15 |
6× 0.25 |
6× 0.35 |
|
| Controller | Work model |
Continuous | |||||||||
| Specification | Exterior Size (mm) |
320 *160 *170 |
360 *180 *180 |
420 *210 *200 |
610 *160 *170 |
690 *180 *180 |
810 *210 *200 |
820 *140 *160 |
940 *160 *170 |
1060 *180 *180 |
1240 *210 *200 |
| Packing size(mm) |
360 *190 *200 |
400 *220 *210 |
570 *180 *190 |
650 *190 *200 |
730 *220 *210 |
850 *250 *230 |
860 *180 *190 |
980 *190 *200 |
1090*280*240 | 1280 *250 *230 |
|
| Voltage | 100～120V or 200～240V | 200～240V | |||||||||
| N.W.(Kg) | 4 | 4 | 7 | 8 | 8 | 14 | 12 | 12 | 12 | 21 | |
| G.W.(Kg) | 5 | 5 | 8 | 10 | 10 | 16 | 15 | 15 | 14 | 24 | |
