- Heating Mode:Surface heat-conduction
- Surface Max. Temp.( ℃):450℃
- Temperature control range:RT+20～250℃
- Heating element:Nickel chromium alloy wire

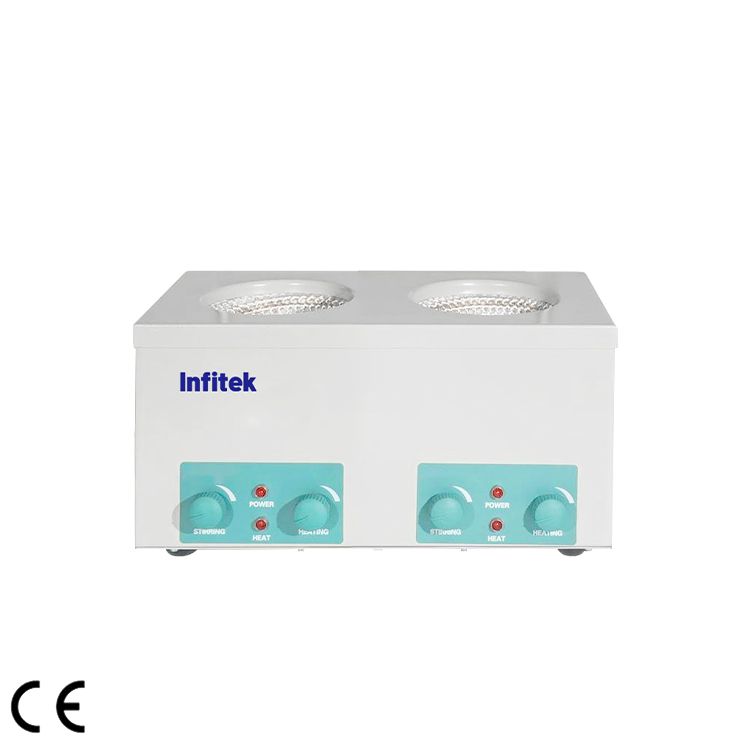

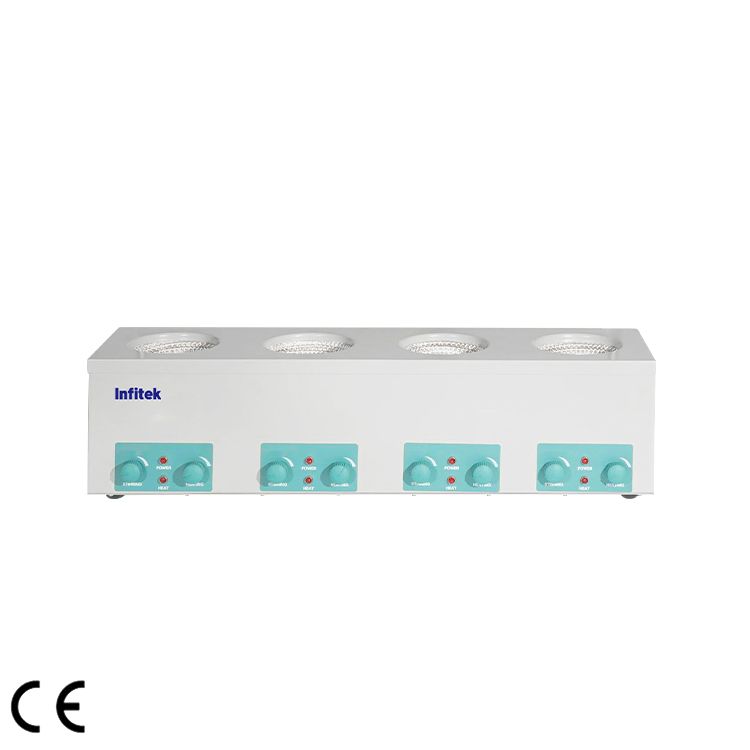

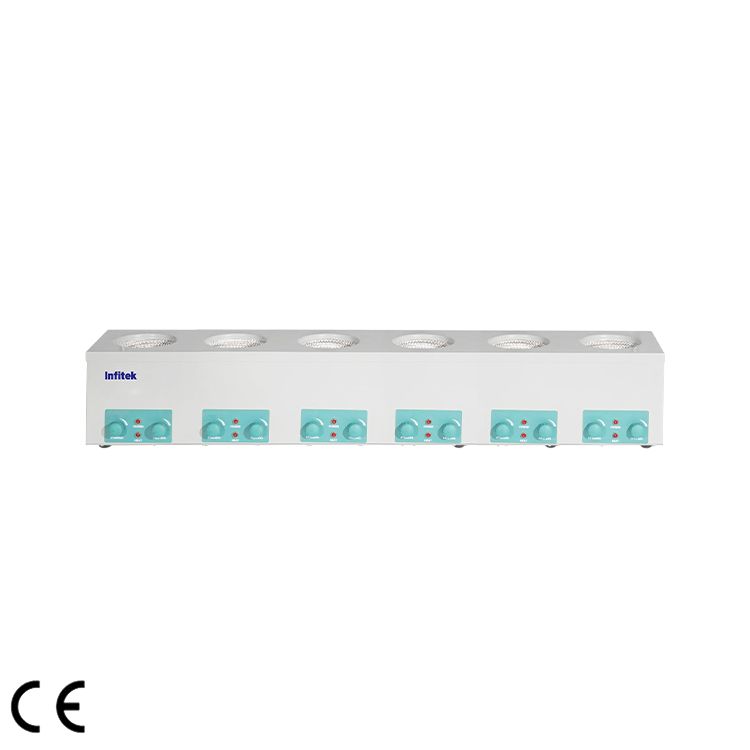

Several Rows Magnetic Stiring Heating Mantles, HMSD Series
Description
DESCRIPTION
DESCRIPTION
1.Electronic temperature regulation heating mode .Heating and stirring can proceed simultaneously; stepless speed adjustment.
2..within 100ml
SPECIFICATIONS
SPECIFICATIONS
| Model | HMSD-2P5 | HMSD-2P10 | HMSD-2P20 | HMSD-4P5 | HMSD-4P10 | HMSD-4P20 | HMSD-6P5 | HMSD-6P10 | HMSD-6P20 | |
| Function | Specification(ml) | 2×250 | 2×500 | 2×1000 | 4×250 | 4×500 | 4×1000 | 6×250 | 6×500 | 6×1000 |
| Heatingmode | Surface heat conduction | |||||||||
| Surface Max. temperature | 450℃ | |||||||||
| Temp.range | Rt+vfc20～250℃ | |||||||||
| Speedrange | 0～1600rpm | |||||||||
| Structure | Heatingelement | Nickel chromium alloy wire | ||||||||
| Stirbar | PTEF | |||||||||
| Outershell | Cold rolled steel plate, surface spraying | |||||||||
| Motorpower | 0.01kW | |||||||||
| HeatingPower（kW） | 2×0.15 | 2×0.25 | 2×0.35 | 4×0.15 | 4×0.25 | 4×0.35 | 6×0.15 | 6×0.25 | 6×0.35 | |
| Controller | Workmodel | Continuous | ||||||||
| Specification | ExteriorSize(mm) | 320*160*170 | 360*180*180 | 420*210*200 | 610*160*170 | 690*180*180 | 810*210*200 | 940*160*170 | 1060*180*180 | 1240*210*200 |
| Packingsize(mm) | 360*190*200 | 400*220*210 | 570*180*190 | 650*190*200 | 750*280*240 | 850*250*230 | 980*190*200 | 1100*220*210 | 1280*250*230 | |
| Voltage | 100～120V or 200～240V | 200～240V | ||||||||
| N.W.(Kg) | 4 | 4 | 7 | 8 | 8 | 14 | 12 | 12 | 21 | |
| G.W.(Kg) | 5 | 5 | 8 | 10 | 10 | 16 | 15 | 15 | 24 | |
