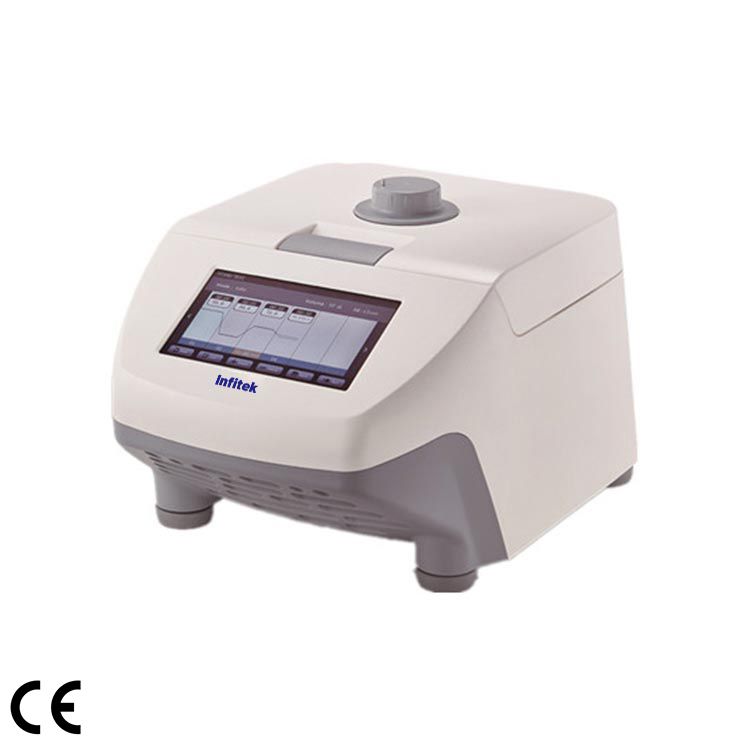

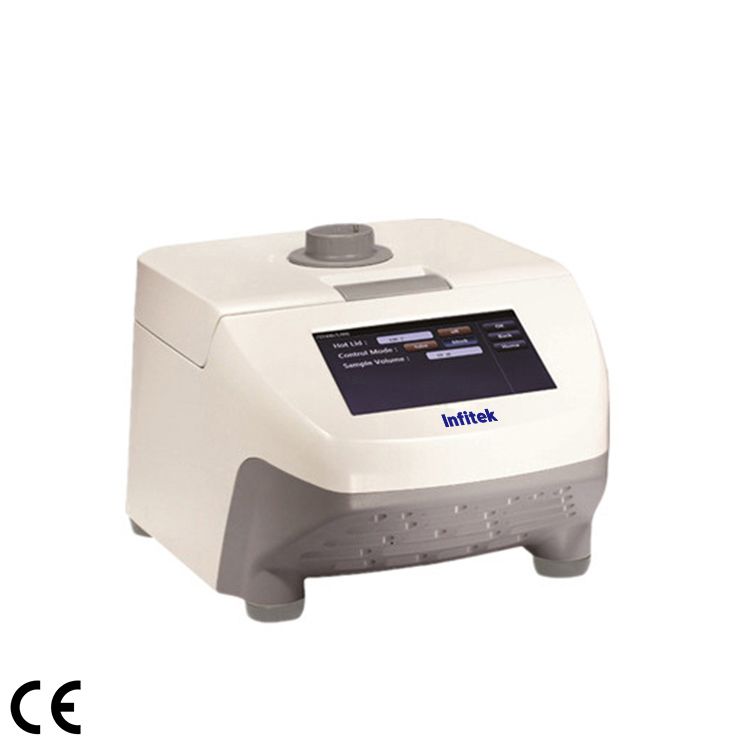

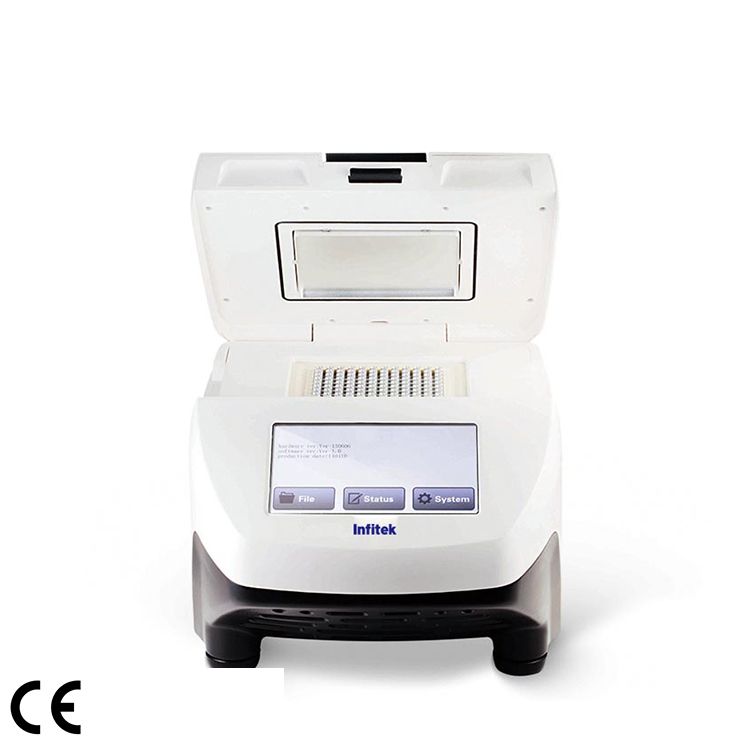

Standard PCR Machine, PCRTC-S

Reliable heating/cooling elements and precise temperature control
Unique design of block ensur es the temperature uniformity and repeatable results
7 inch Large color touch panel screen for easy programming with user friendly software
High performance DSP and temperature control
Fast heating and cooling rate
Large user program storage

Specifications	PCRTC-S
Sample Capacity	96X0.2mL PCR tube, 8X12 PCR plate or 96 well plate
Heating Temperature Range	4-105℃
Lid Temperature Range	30-110℃
Temperature Display Accuracy	±0.1℃
Temperature Control Accuracy [at 55℃]	±0.3℃
Temperature uniformity[at 55℃]	<0.3℃
Max. Heating/Cooling Rate	5℃/Sec
Adapter block material	aluminum
Display	7” LCD 800×480
Input	Touch panel
User defined file system	Max. 30 segments 99 cycles max. 16 folder and 16 files each folder
Power off protection	Yes
Power Supply	100-120V/200-240V,50/60Hz
Dimension [D×W×H] ( without the heating block )	280370250 mm
Package Dimension (WDH) (mm)	600440450
Net /Gross weight	11kg/13.2 kg
