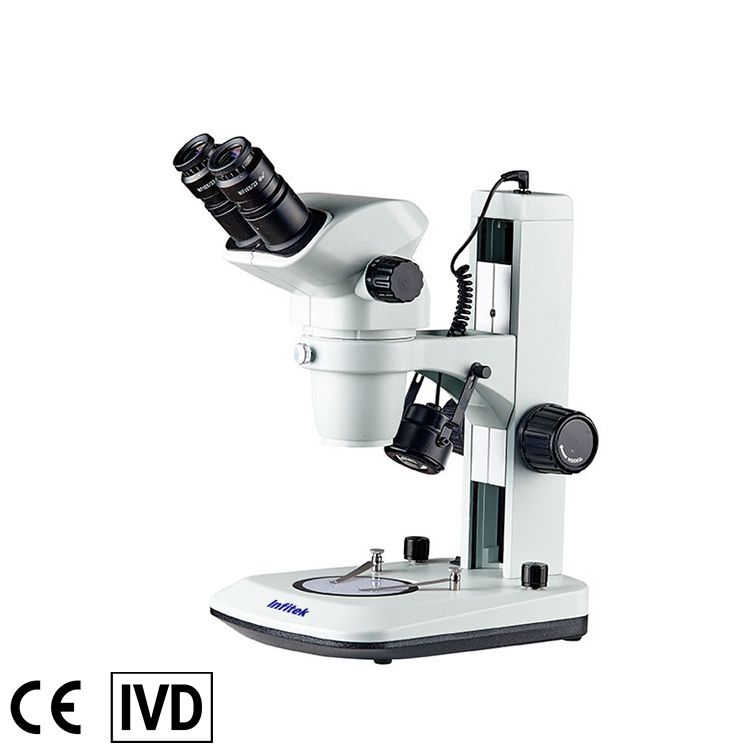

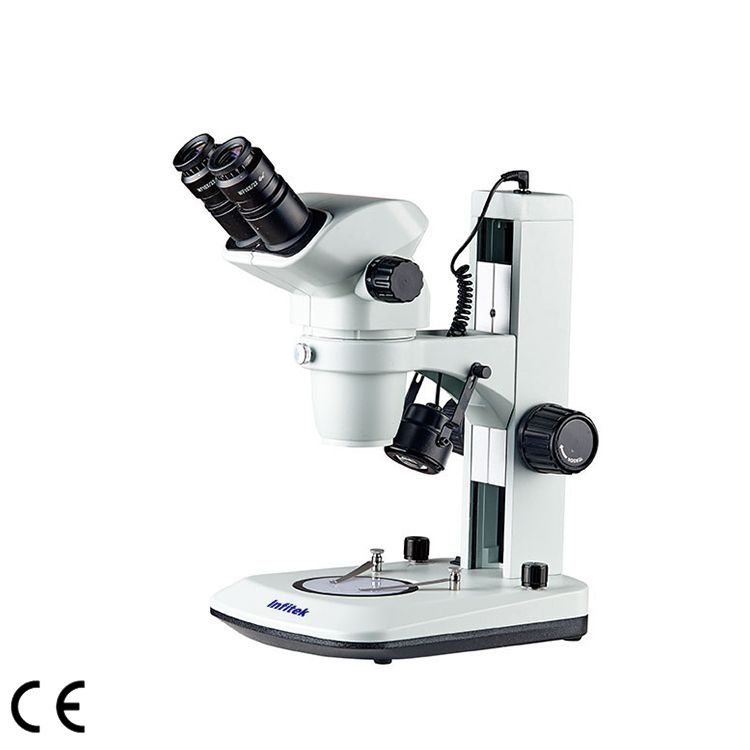

Stereo Microscope, MSC-ST7045

  1. Binocular head, 45° incline
  2. Wide Zoom Ratio:6.7:1
  3. LED Illumination

Share the product



Model MSC-ST7045
Magnification Zoom objective 6.7X-45X
Eyepiece WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses

*Optional Eyepiece15X/16mm,20X/12mm,25X/9mm,30X/8mm

Main Body


Binocular head,45° inclined, 360° rotatable, can be locked in any position desired. Diopter adjustment:±5 diopters
Interpupillary Distance adjustment:54-75mm
Objective 0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1
*Aux Lens:0.5X,2X
Focusing Mount Focusing track mount with vertical working distance 104mm
Stand Track Stand

Vertical Height: 300mm; Mounting Size: φ76mm; Focusing Distance: 106mm;

With φ95mm B/W Plastic & Perspex Plate and Paired Clips; Base Size: 205x275x40mm

Illumination Top and bottom LED Illumination with an independent control; Input Power:110v~240v
C-Mount MSC 1X C-Mount; *MSC 0.5X C-Mount;
Information:MSC-ST7045 3.35X-270X with optional eyepieces and objectives;
*Optional configuration
