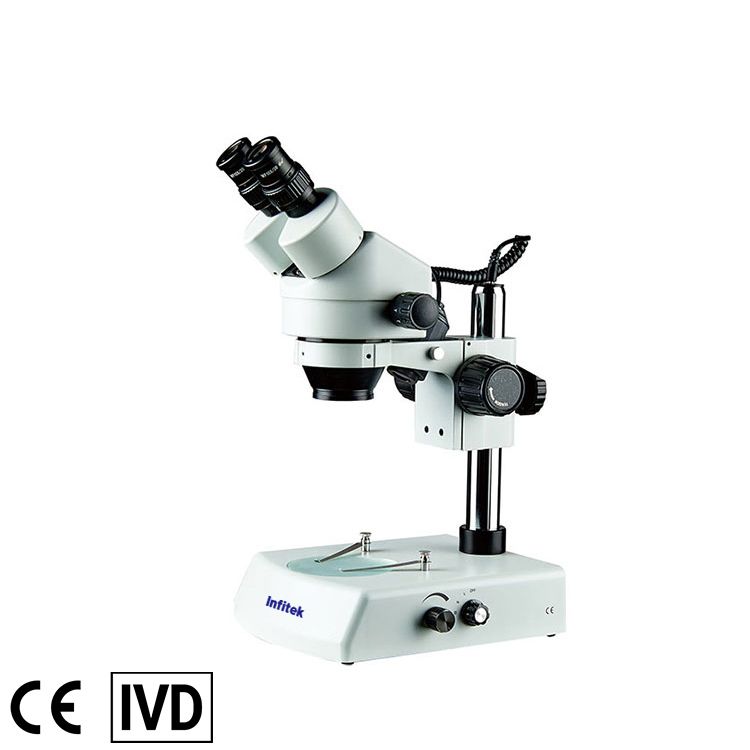

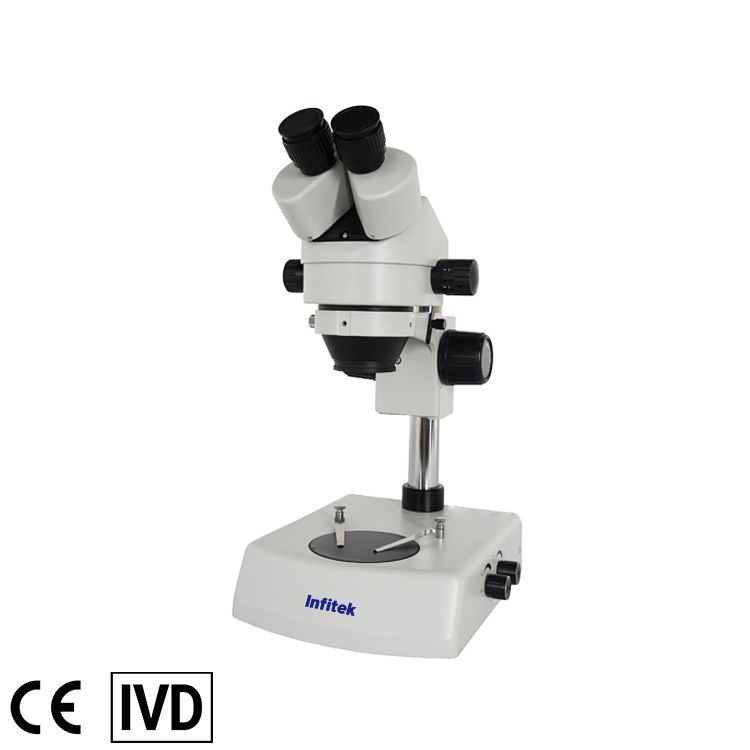

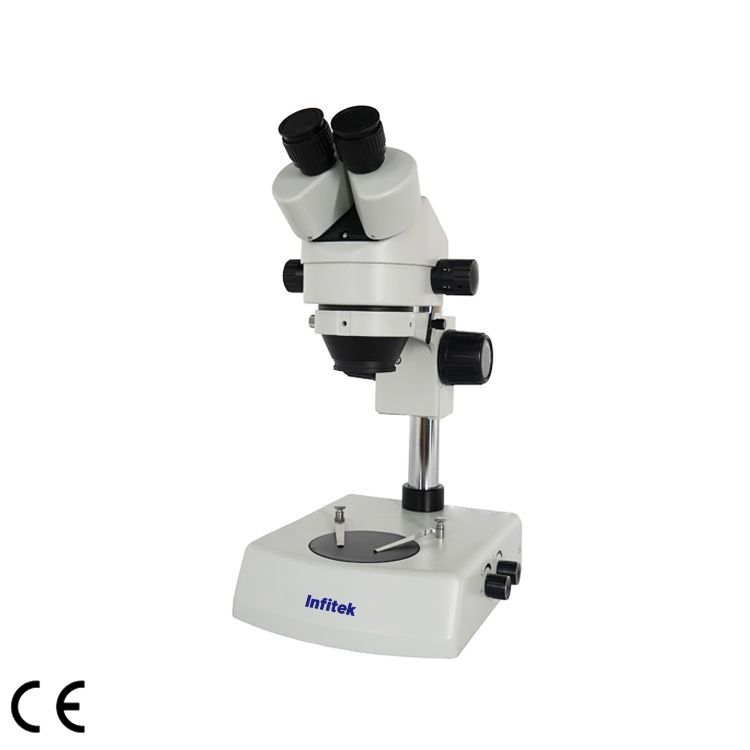

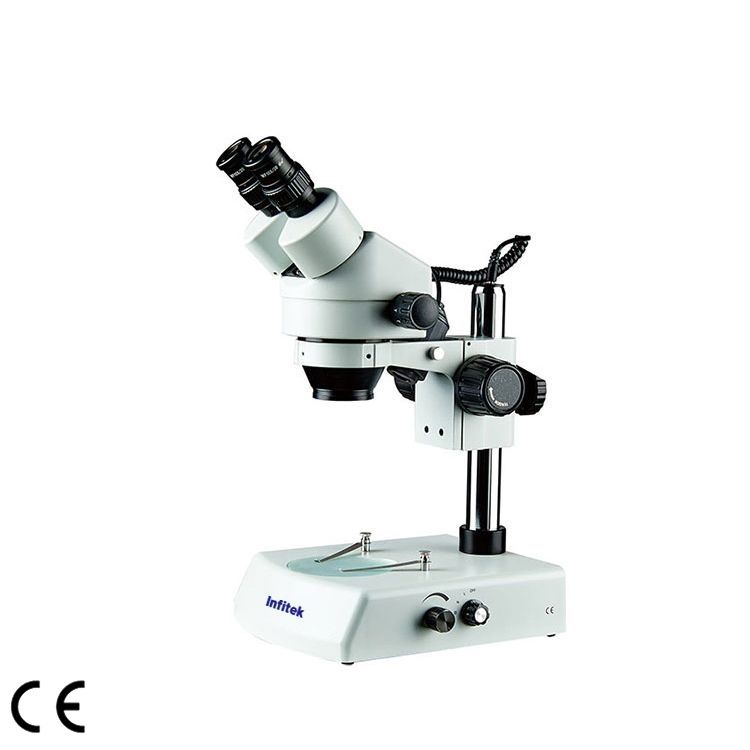

Stereo Microscope (Dissecting Microscope), MSC-ST45

  1. Binocular head
  2. Wide Zoom Ratio: 6.4:1
  3. Zoom objective: 7X-45X

Share the product

Description

SPECIFICATIONS

SPECIFICATIONS

Model MSC-ST45
Optics Finite Distance Optical System
Magnification Zoom objective 7X-45X
Observation Tubes Tilting binocular interpupillary distance adjustment: 54-76mm; Diopter adjustment: ±5 diopters
Viewing Head Seidentopf Head, inclined at 45°
Optical Coating Transmittance ≥ 95%
Eyepiece WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
*Optional eyepiece15X/15mm,20X/10mm,25X/9mm,30X/8mm
Objective 0.7X-4.5X stereo zoom; Zoom ratio:6.4:1
*Aux lens:0.5X,0.7X,0.75X,1.5X,2X
Focusing Focusing mount with vertical working distance 50mm
Stand Vertical post: 240mm ; Diameter: φ32mm; With φ95mm B/W plastic & Perspex plate and paired clips; Base size:200×255×60mm
Illumination Transmitted and reflected LED illumination
C-Mount 1X C-Mount; *0.5X C-Mount; *0.3X C-Mount
Electricity 100-240V AC,50/60Hz
Package Dimension (W*D*H) (mm) 510*280*390
Gross Weight (Kg) 7

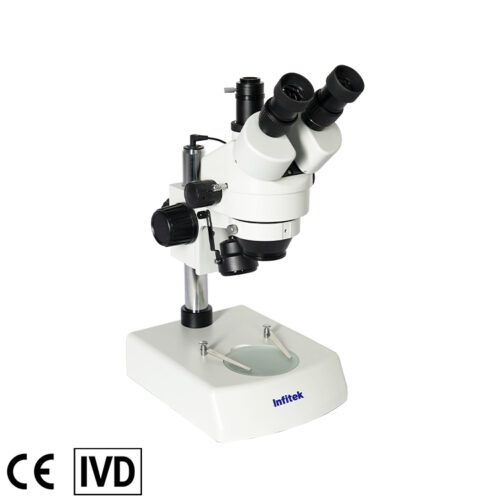

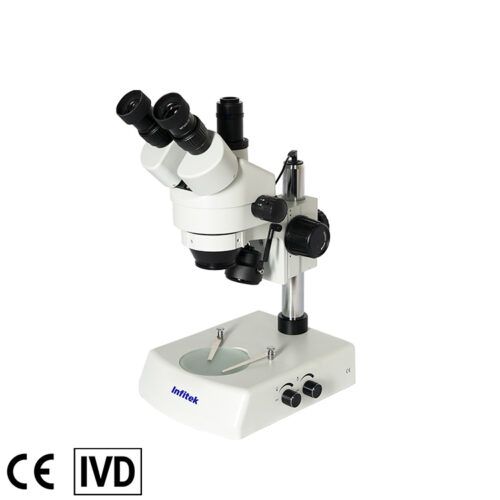

*Optional MSC-ST45T: microscope camera (Standard imaging software) / Win 10 Pad / Digital display
Notes: 3.5X-270X with optional eyepieces and objectives
*Optional Configuration
