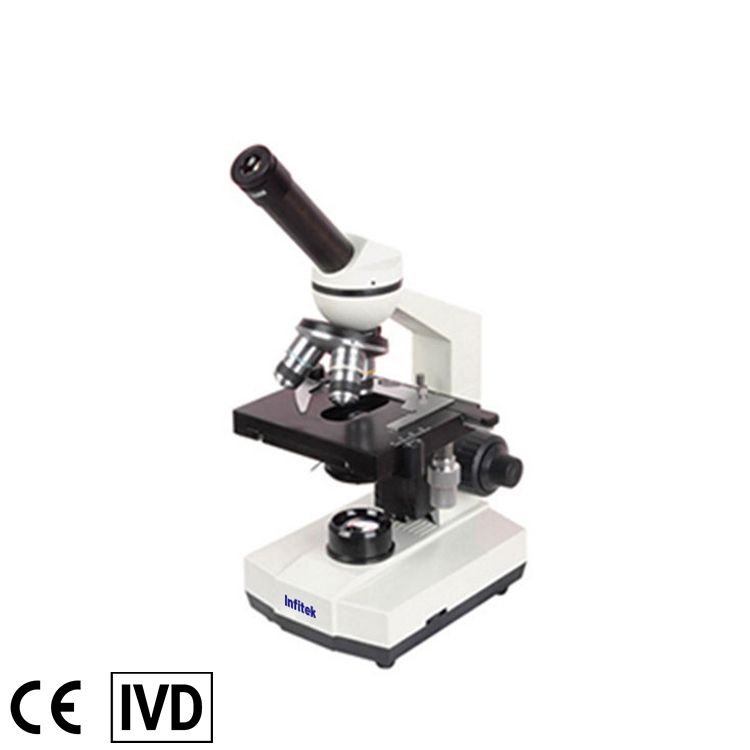

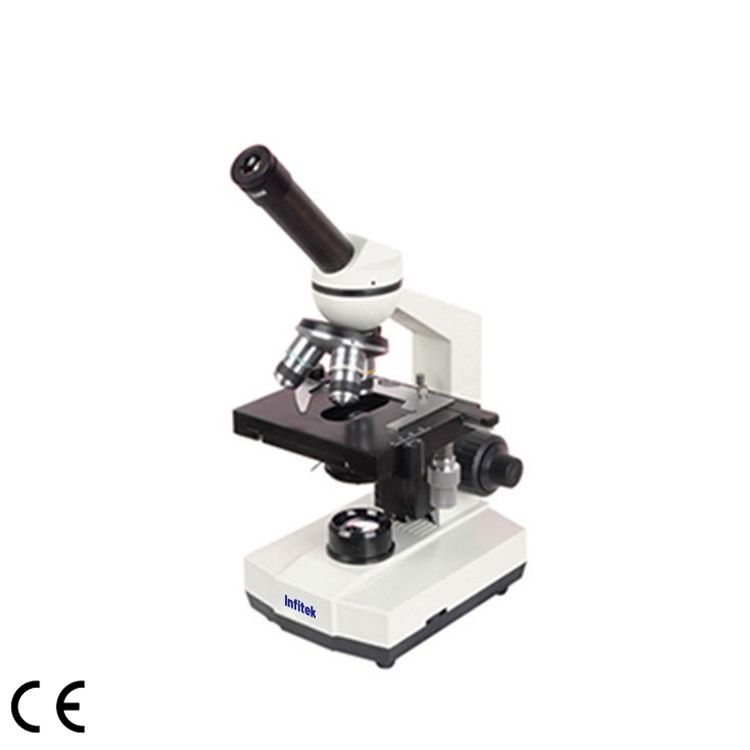

Teaching Microscope, MSC-T08

  1. Viewing Head: Monocular vertical tube
  2. Eyepiece: WF10× *WF16WF10×
  3. Objective: Achromatic Objective: 4x, 10x, 40x, 100x
  4. Nosepiece: Quadruple Nosepiece

Share the product



Model MSC-T08
Optics Finite Distance Optical System
Observation Tubes Monocular vertical tube
Optical Coating Transmittance ≥ 95%
Eyepiece WF10× *WF16WF10×
Objective Achromatic objective:4X,10X,40X,100X
Nosepiece Quadruple nosepiece
Stage Double layers mechanical stage 120×115mm/ 50×30mm
Condenser Abbe condenser N.A. 1.25
Focusing Coaxial coarse and fine adjustment, fine division 0.002mm
Illumination LED illumination,brightness adjustable
Electricity 100-240V AC,50/60Hz
Package Dimension (W*D*H) (mm) 340*240*470
Gross Weight (Kg) 4.1
