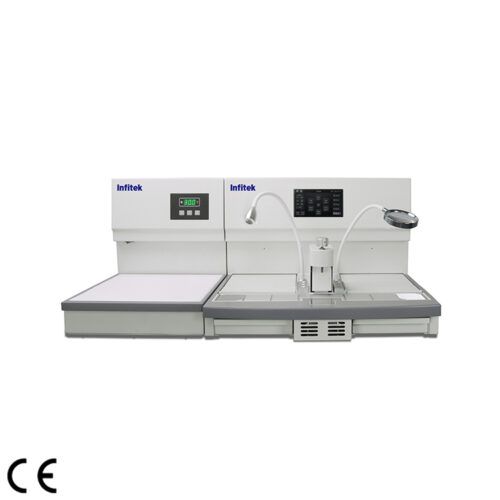

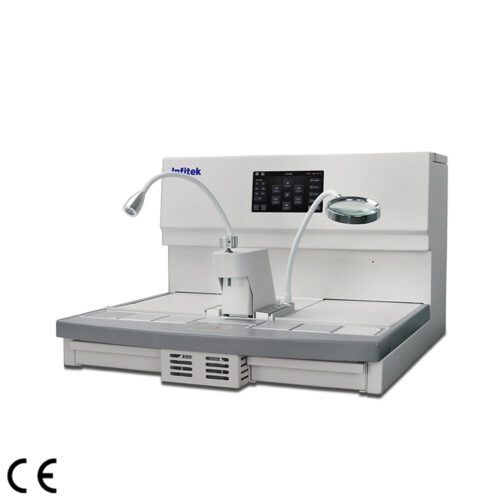

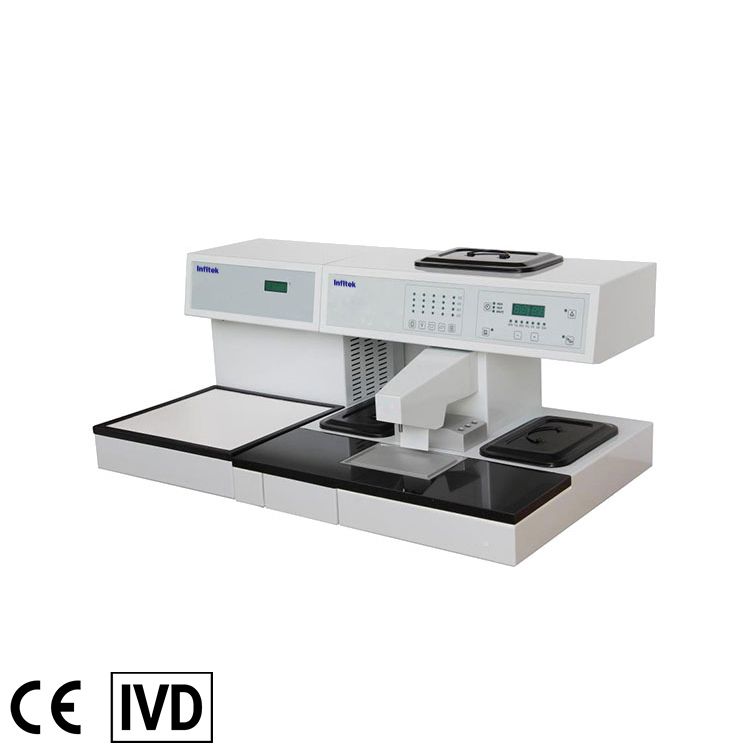

Tissue Embedding & Cooling System, EBD-1&CL1

  • Fully programmable computer controls
  • Automatic memory and restoration function
  • Flexible module configuration options

Share the product



1. Fully programmable computer controls allow automatic system start and stop anytime (weekly);
2. Temperature is controlled by microprocessors made in the USA and they are displayed using color-changing LEDs to enable clear visibility of working status;
3. Five heated areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, and heating plate (working area), are individually controlled and work independently without interference from each other;
4. Flexible heating mechanism overcomes the shortcomings of traditional technology that can result in excessive temperature differences. System provides fast heating and precise temperature control. In addition, the dual-protection from overheating is safe, reliable and energy-saving;
5. Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system;
6. Flexible module configuration options through a design which separates the Cryo Module from Embedding Module;
7. Safe and reliable low-voltage illumination system;
8. Heated working plate and forceps wells make tissue embedding more convenient;
9. Large granite working area eases the cleanup of excessive paraffin.


The paraffin-heating maximum temperature  70℃
Paraffin Chamber Capacity  3 liter
Temperature Range of Forceps Wells  55 – 70℃
Temperature Range of Paraffin-melting Chamber  55 – 70℃
Temperature Range of Thermal Storage Compartments  55 – 70℃
Temperature Range of Heated Working Areas  55 – 70℃
Temperature Range of Paraffin dispenser  55 – 70℃
Temperature Control Precision  ±1%
Paraffin Flow Control  Paraffin flow control via finger touch plate and optional foot pedal
Fully programmable ON/OFF control  Allows automatic system start and stop anytime weekly
Working Temperature of Cryo-Module ≤ -20℃,as low as -30℃
Working Voltage  AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power  650W (EBD-1), 300W (EBD-CL1)
Dimensions(W×D×H)  525×550×385 mm (EBD-1)
590×345×385 mm (EBD-CL1)
Net weight  26kg (EBD-1), 27kg (EBD-CL1)
