- Paraffin Chamber Capacity: ≥6 liters
- Temp Range: RT – 85℃
- Temp Control Precision: ±1℃
- Temp Range of Cryo Module: 0 to -20℃
- Equipped with magnifying glass

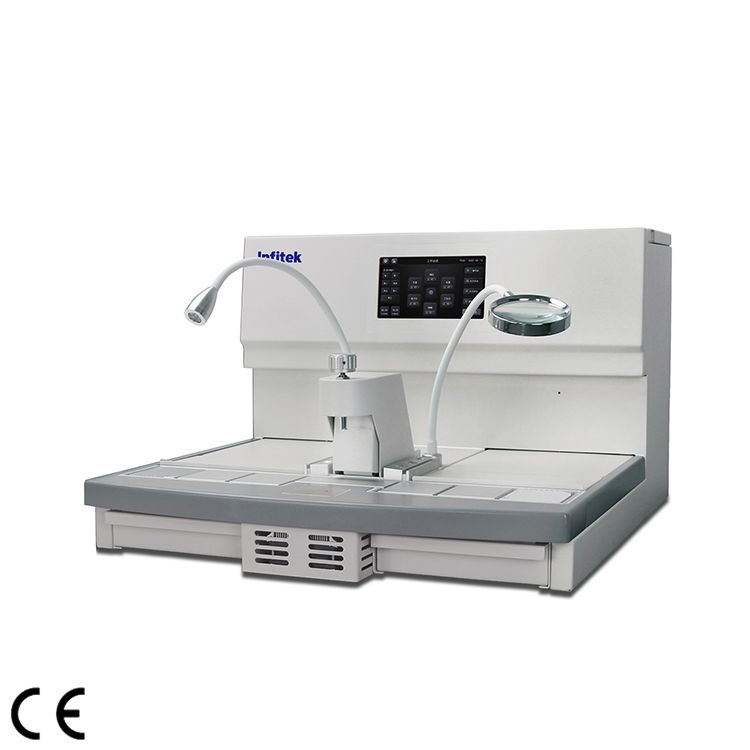

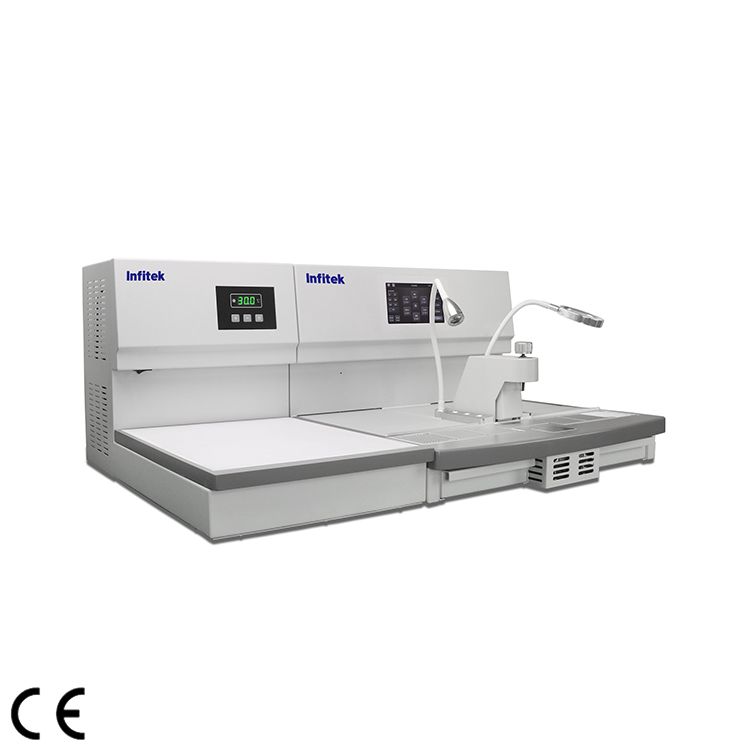

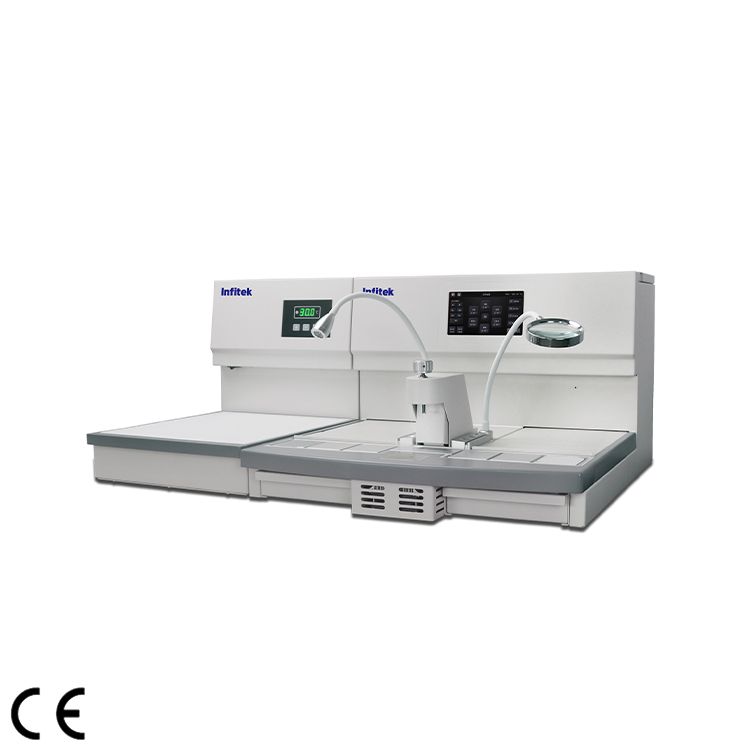

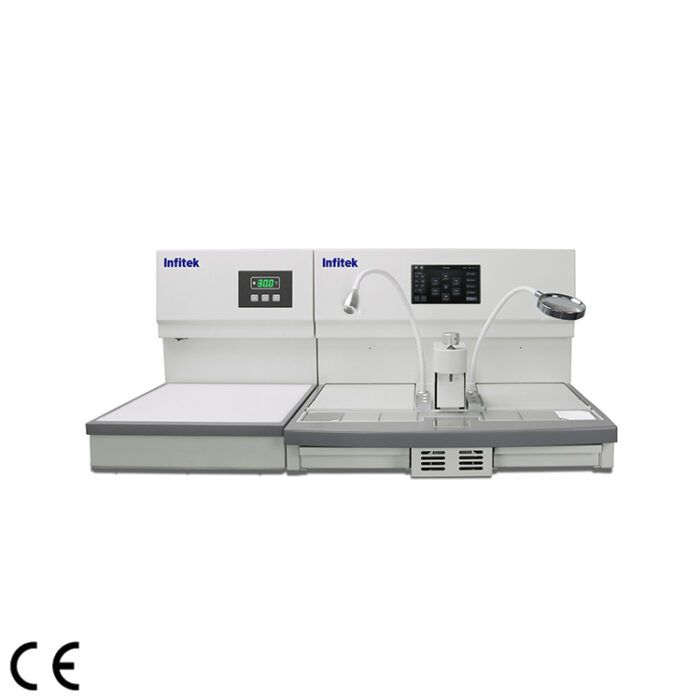

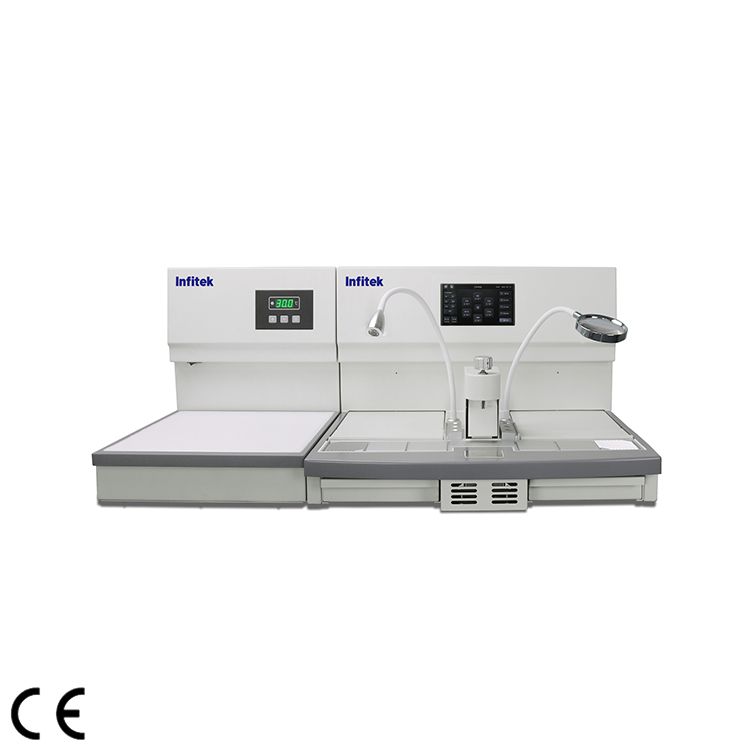

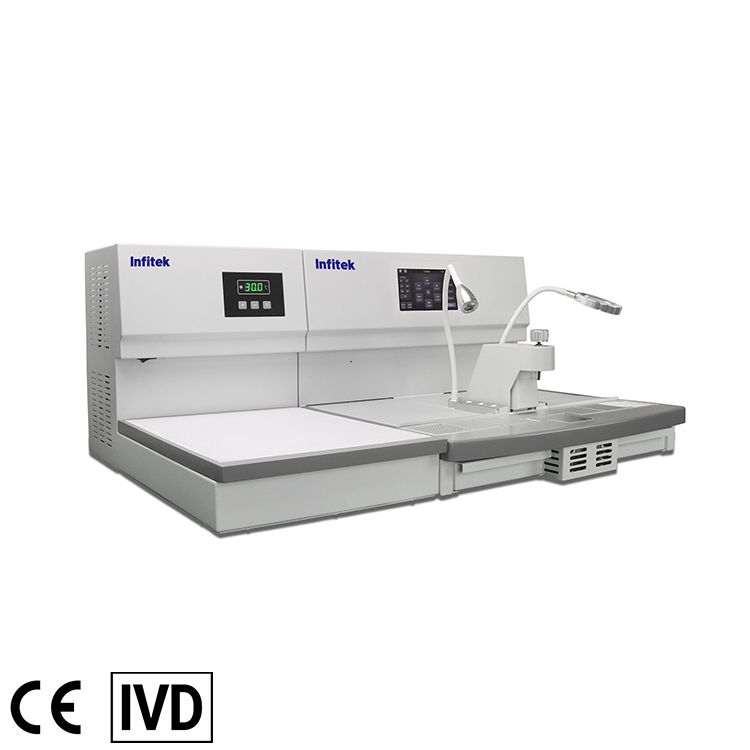

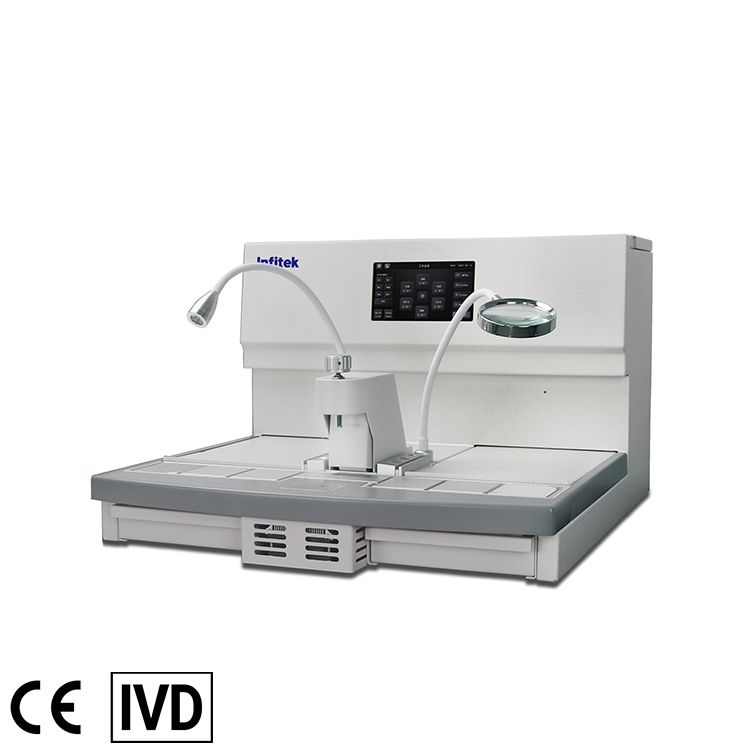

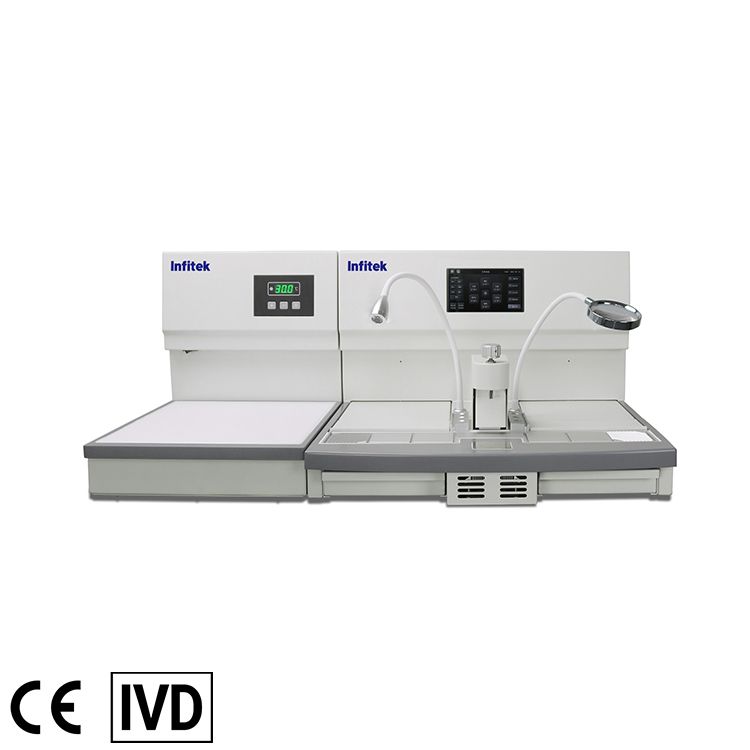

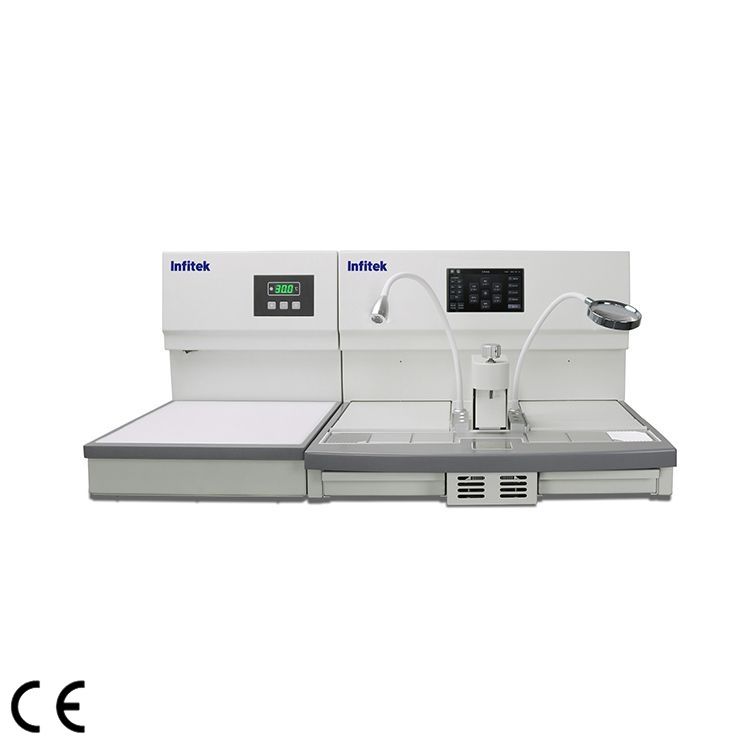

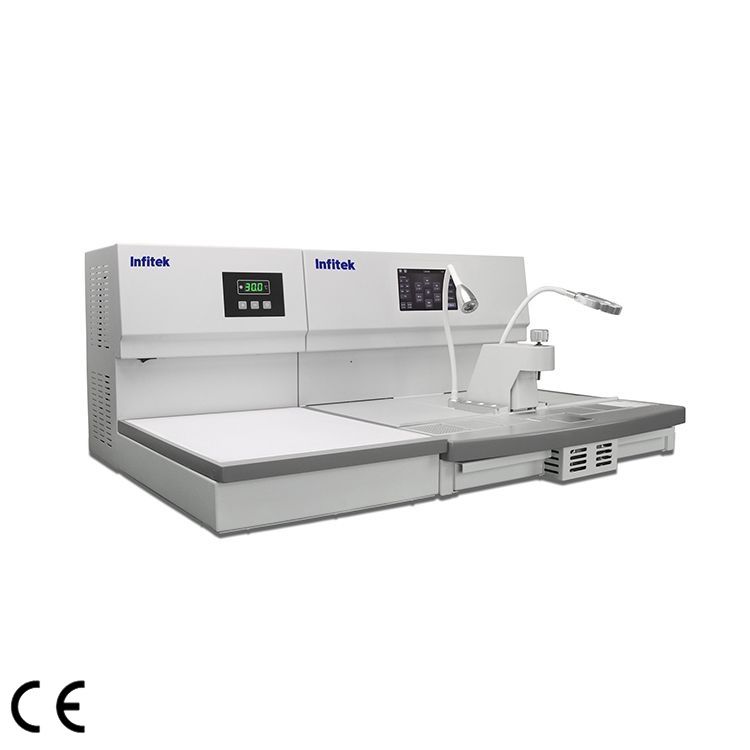

Tissue Embedding & Cooling System, EBD-4&CL4
Description
- Imported OLED module display screen, with clear characters and clear display data at any angle.
- The interface is reasonably distributed, with working status icons displayed and button LED prompts, making the working status clear at a glance.
- Fully computerized automatic program control, can be preset to start and shut down at any time every week.
- Adopts imported temperature measurement integrated block with high precision and reliable performance, and has seven independent PID temperature control channels without affecting each other.
- Adopts new flexible heating element, fast heating, uniform heating, energy saving and reliable.
- Double overheat protection device, safe and reliable.
- With memory and auto-recovery functions, the preset temperature is automatically retained after operation.
- Two running modes: manual mode with instant start and stop, automatic mode with power-off memory and automatic start upon call.
- The appearance is novel, the design is split, and the embedding machine and the freezing table can be combined at will.
- Enlarged left and right boxes, suitable for all kinds of dehydration baskets, separate design of inner and outer boxes, convenient for taking out, changing wax and maintenance.
- The larger forceps storage table can hold large and small forceps, and the unique guide groove design prevents paraffin from overflowing.
- The wide workbench is equipped with a wax repair device for multi-functional use.
- Equipped with a universal metal hose magnifier, the user can adjust it according to needs, suitable for the operation of extremely small specimen tissues.
- The freezing table uses an imported compressor and imported environmentally friendly fluorine-free refrigerant, which has excellent refrigeration effect.
- The freezing table has super cooling mode and temperature control mode, with high temperature control accuracy.
- Imported semiconductor random small cold stage, instant cooling, convenient for rapid positioning and embedding of specimens, and improves work efficiency.
- Ultra-large-capacity wax cylinder ensures that large quantities of tissue embedding can be completed at one time
- Cold light source low voltage lighting system adopts imported CPU constant current independent control, infinite brightness adjustment, no flicker.
- The lighting adopts a universal metal hose design, which can adjust the lighting angle at will, making it more convenient to observe tissue specimens.
- The inlet valve adjusts the wax nozzle flow, which is suitable for various tissue embedding processes.
- Automatic soft contact switch and foot switch dual control wax flow design, two methods can be selected at will.
- Perfect wax flow system design, automatic wax discharge, accurate positioning, and very convenient embedding operation.
- Equipped with a controlled power output socket to achieve timed power on/off control of other equipment such as the freezing table at the same time as this machine.
Specifications

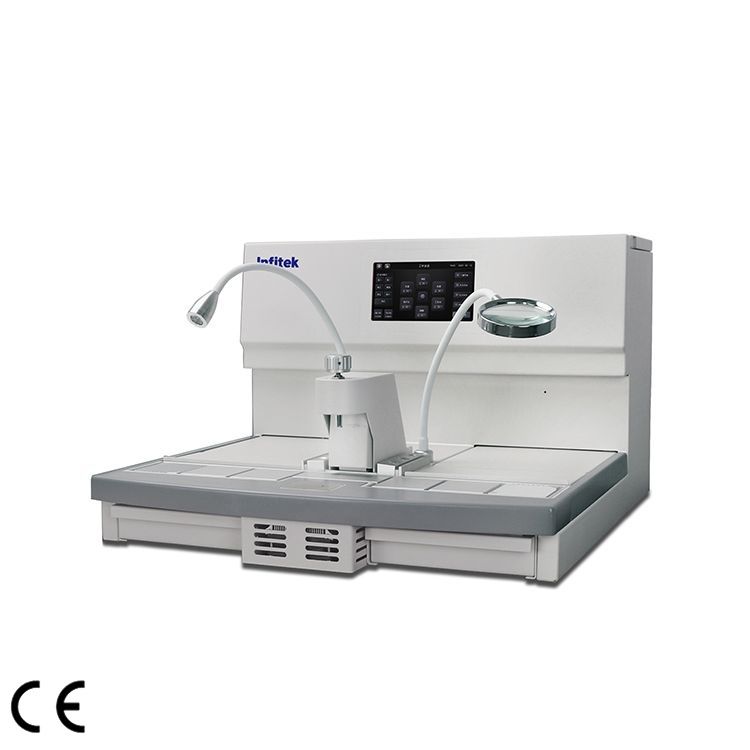

| EBD-4 Embedding center | |
| Paraffin Chamber Capacity | ≥6 liters |
| Temperature Ranges | RT – 85℃ |
| Temperature Control Precision | ±1℃ |
| Paraffin Flow Control | Paraffin flow control via finger touch plate and optional foot pedal |
| Fully programmable ON/OFF control | Allows automatic system start and stop anytime weekly |
| Dimensions of Paraffin Chamber (EBD-4) | 495×132×95mm (W x D x H) |
| Dimensions of Thermal Chamber (each of two) | 240×160×55 mm (W x D x H) |
| Working area of Embedding Module | 540mm×93mm |
| Dimensions of small cold plate | 60×50mm |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 1000W (EBD-4) |
| Dimensions(EBD-4) | 675×575×390mm(W x D x H) |
| Net weight | 39kg (EBD-4) |
| Package Dimension (W*D*H) | 790*690*580mm |
| G.W.(KG) | 60kg |

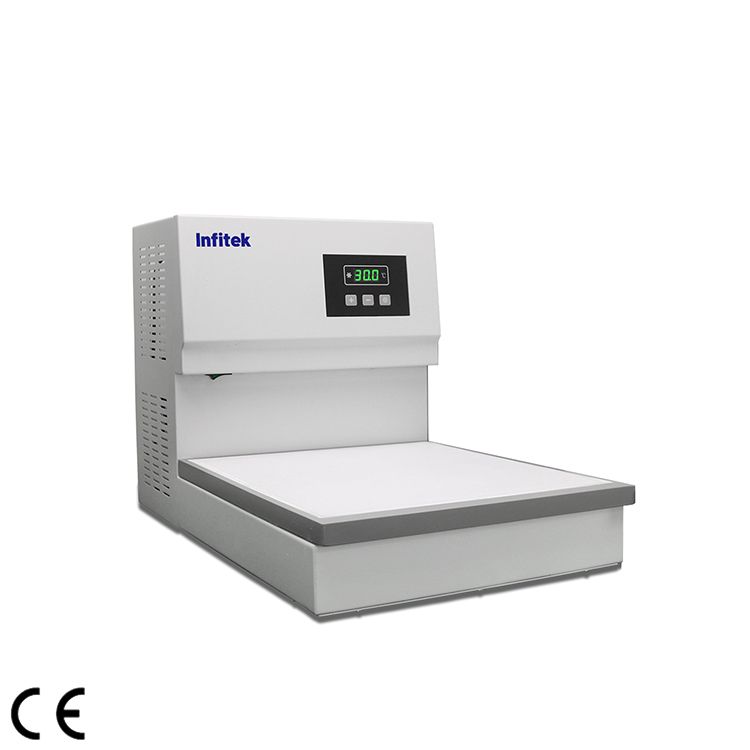

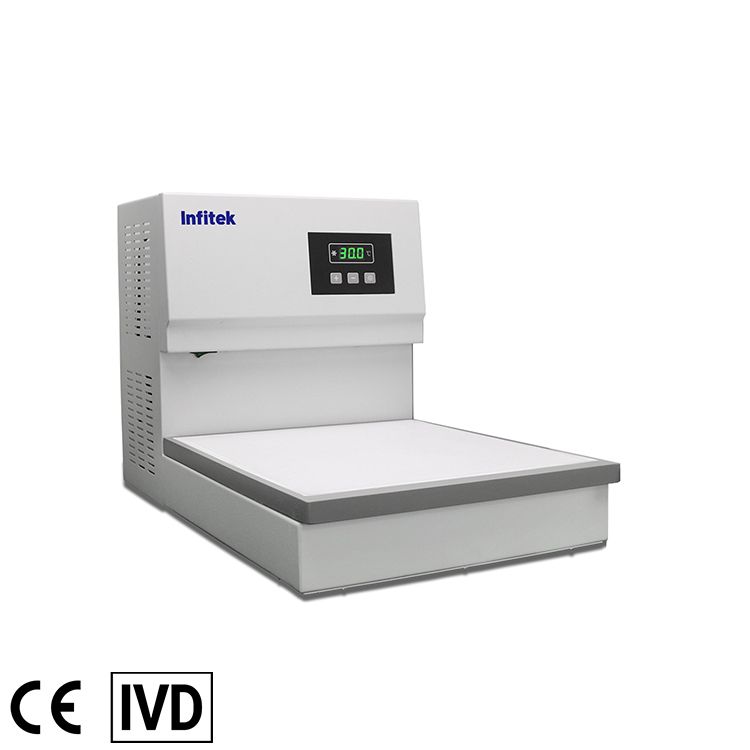

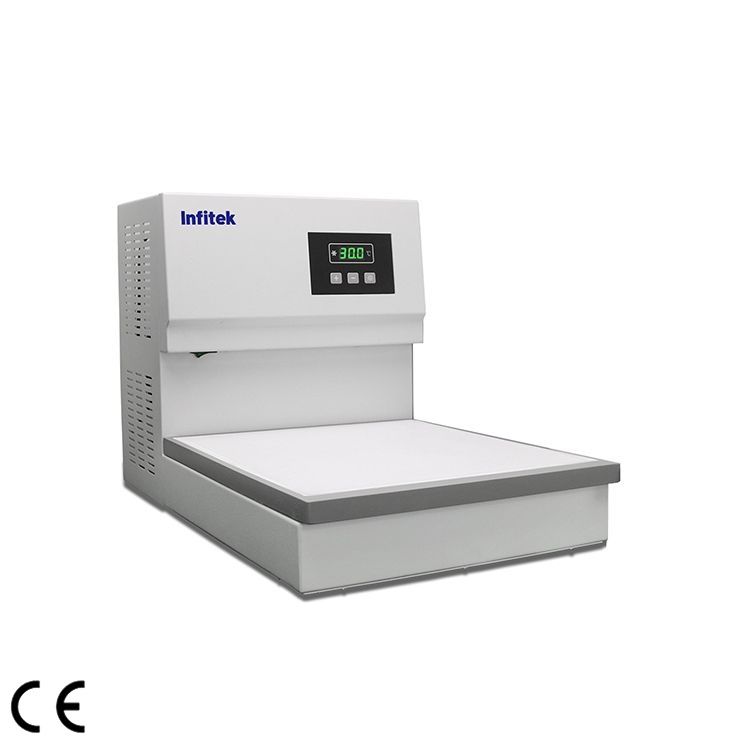

| EBD-CL4 Cooling system | |
| Temperature Ranges of Cryo Module | +5~ -20℃（Temperature control mode） The lowest temperature can reach -28℃ (Super cooling mode) |
| Temperature of Small Cold Plate | ﹤-5℃ |
| Temperature setting of Cryo Module | the optimal working temperature is approximately -10℃, and the temperature is under delay protection |
| Dimensions of Cryo Module | 315×380 mm |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 300W (EBD-CL4) |
| Dimensions | 710×350×390mm (W×D×H) (EBD-CL4) |
| Net weight | 25kg (EBD-CL4) |
| Package Dimension (W*D*H) | 770*470*550mm |
| G.W.(kg) | 42Kg |
