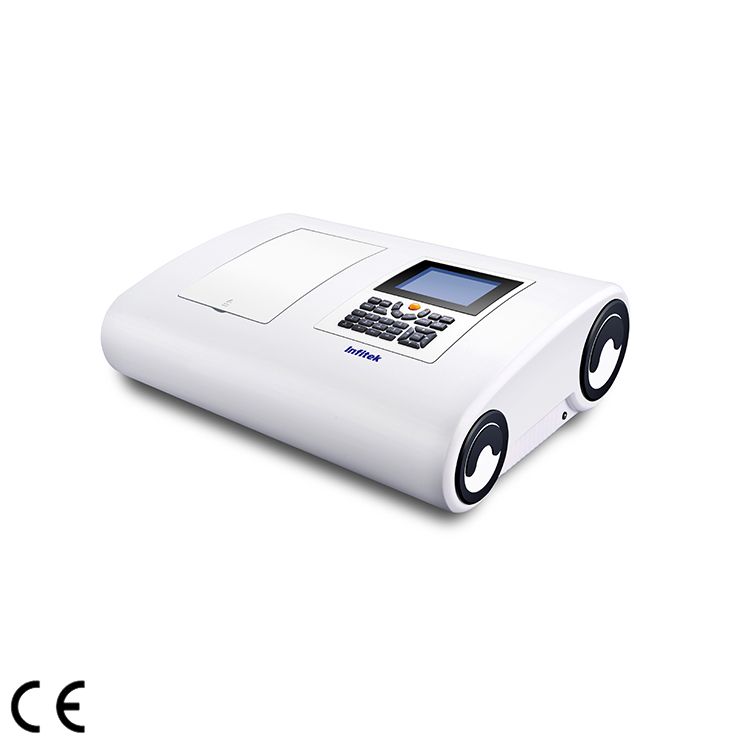

UV VIS Spectrophotometer, Double Beam, SP-MUV9000, 9000A, 9000S

  1. Wavelength Range: 190-1100nm
  2. Wavelength Accuracy: ±0.1nm(D2 656.1nm),±0.3nm
  3. Long path light design
  4. Multi functions
  5. 16mm optical base
  6. Perfect calibration system
  7. 6 inches LCD display

Share the product




UV Spectrophotometer

SP-MUV9000 series are widescreen double beam spectrophotometers. They adopt a double beam long light path design to ensure stability and accuracy; They are the best choice of high-quality spectrophotometers.


Lightpath design: double beam
SP-MUV9000 series’ double light path design can prevent circuit fluctuation and stray light to ensure the stability of the instrument.

Powerful software functions
Multi-functions like spectrum scanning, standard curve, kinetics, multi-wavelength scanning, DNA/Protein testing can be operated directly on the PC.

Long path light design
SP-MUV9000 series’ unique 520mm long light path design greatly improved resolution and the bandwidth can reach 0.5nm.

Multi functions on Spectrophotometer
Multi functions operated directly on the spectrophotometer and display the test results’ curve and data: wavelength scanning, standard curve, kinetics, multi-wavelength scanning, DNA/Protein test.

16mm optical base
SP-MUV9000 series use a rigid 16mm diecast aluminim base as their optical mount to ensure the stability and reliability.

Perfect calibration system
All baseline, wavelength, dark current can be calibrated automatically to keep good running conditions.

6 inches LCD display
SP-MUV9000 series have a 6 inches LCD display to show results and curves directly on the screen.

Data output
SP-MUV9000 series are equipped with USB port to connect with a PC, the softwore comes standard with the instrument.



Model SP-MUV9000 SP-MUV9000A SP-MUV9000S
Optical System Double Beam, 1200 Lines/mm Grating)
Wavelength Range 190-1100nm
Bandwidth 1.8nm 1.0nm 0.5, 1.0, 2.0, 4.0 nm
Wavelength Accuracy ±0.1nm(D2 656.1nm),±0.3nm@all
Wavelength Repeatability 0.2nm
Photometric Accuracy ±0.2%T(0-100%T)
Photometric Repeatability ≤0.1%T(0-100%T)
Photometric Range -0.3-3A
Stability ± 0.001A/h @ 500nm
Baseline Flatness ± 0.001A/h
Noise ± 0.0005A/h
Stray Light ≤0.03%T @ 220nm,360nm
Data Output Port USB
Printer Port Parallel Port
Display 320*240 Dots LCD
Lamps Tungsten  Lamp&deuterium Lamp
Detector Silicon Photodiode
Power Requirements AC   220V/50Hz or  110V/60Hz
Dimension 625*430*206mm
Weight 30kg

Standard Accessories

Item Description Quantity Unit
1 Spectrophotometer 1 set
2 1cm Glass cuvette 4 pcs
3 Power cord 1 pcs
4 User’s Manual 1 pcs
5 1 cm quartz cuvette 2 pcs
6 Dust Cover 1 pcs
