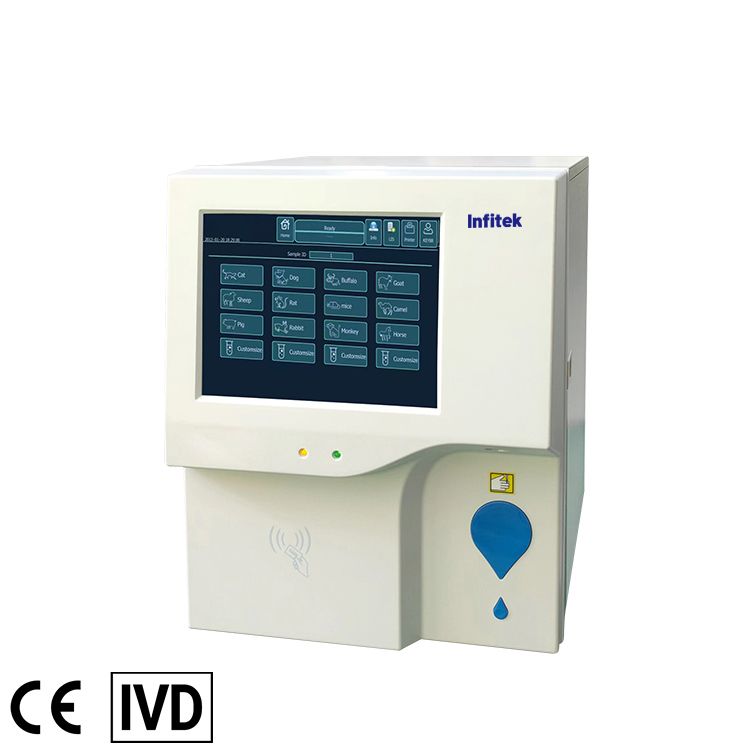

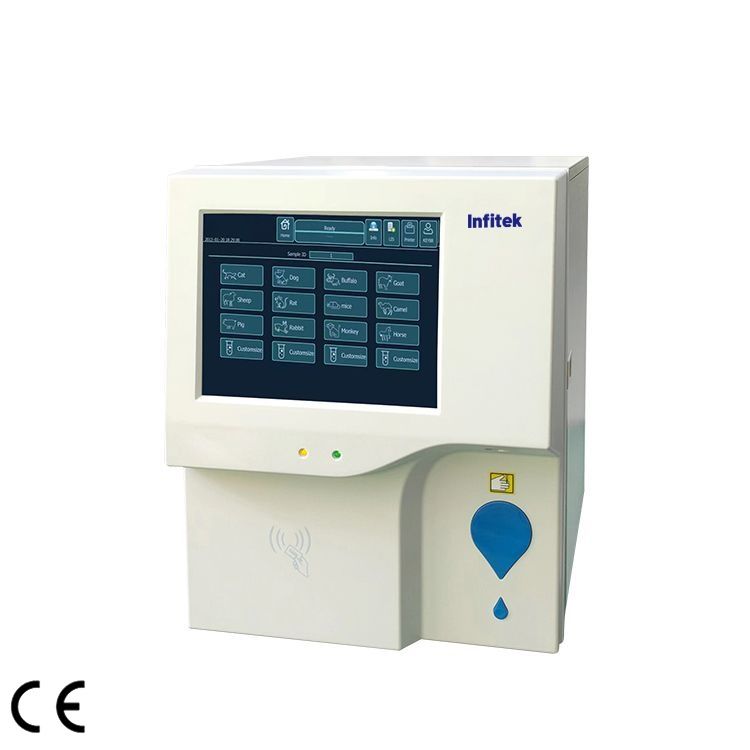

Veterinary Hematology Analyzer, 3 Parts, HEMA-V6190

  • 21 parameters + 3 histograms
  • 60 tests/hour
  • Sample Volume:10μL
  • Blood Sample:Whole blood, peripheral blood

Share the product


Veterinary Hematology Analyzer has rich product performance, convenient human interaction and powerful data management system, which can detect different animal samples such as cats, dogs, rabbits, etc.

Rich product performance

  • 3-Parts Veterinary Hematology Analyzer, 21 detection parameters + 3 histograms
  • Only 10μL of venous blood and peripheral blood
  • Throughout:60 tests/hour
  • Intelligent WBC, RBC, PLT floating landmarks
  • Automatic storage, including sample test results, graphics, sample information, and sample abnormality prompts.

Pleasant usage experience

  • Multi-user permission management
  • Thermal printer, support external printer
  • A variety of printing formats are optional, and support customized printing templates
  • Various reference value ranges, support user-defined
  • Rich quality control calibration function
  • English prompt sample abnormal information
  • 24-hour power on and customized sleep time


Convenient human-computer interaction

  • 4″ color touch LCD display, all results and histograms are displayed on the same screen
  • English operation, support multiple languages
  • Keyboard and mouse input, support barcode scanning (optional)
  • One-key maintenance to eliminate faults

Intelligent reagent management function

  • Reagents for animals
  • Original supporting reagents and maintenance reagents
  • Graphic and text display of reagent information and remaining amount
  • Supporting consumables: high, medium and low quality control blood, concentrated cleaning solution

Powerful data management system

  • Wireless connection: WiFi, Bluetooth and other wireless data transmission, Enables wireless printing, LIS connectivity, lab LAN
  • Abundant interfaces: USB, LAN, RS232, HDMI
  • Bidirectional LIS communication, HL7 and other transmission formats
  • Support remote diagnosis, data import and export, offline reading

After-sales service

  • The online after-sales service order system realizes the online contactless order to change the traditional order mode.
  • Accurate and convenient after-sale installation, repair and maintenance services.


Model HEMA-V6190
3 Histograms WBC,RBC, PLT
Species 12 pre-set species including Canine, Feline, Equine, Bovine, Murine, Swine, Leporid
4 optional species
Blood Sample Whole blood, peripheral blood
Sample Volume 10μL
Storage Capacity Auto-save, more than 200,000 analysis results available
Throughout 60 tests/hour
Data Search Mode By Sample ID, Patient ID, Date, Multi-keywords. Loading/extracting data,offline reading
Display 10.4 inch colorful touch screen
Operation Mode Touch screen, keyboard/mouse
Quality Control L-J, X-R, X-B,etc
Printout Thermal printer (defaulted),available for external printers
Optional printing templates and format
Data Communication LIS, HL7
Wireless Connection Wifi, Bluetooth
Ports LAN×1, RS232×1,HDMI×1
Optional Accessories Handheld Barcode Scanner
Electricity 110-240V, 50/60Hz
N.W./G.W. 17/29kg
Dimension(W*D*H) 440*350*440mm
Shipping Dimension (W*D*H) 670*630*570mm
