- Heating Mode:Nature water convection heat transfer
- Temp.Range:RT+5～100℃
- Temp.Resolution:0.1℃
- Temp.Uniformity:±1.0℃
- Temp. Control Mode:PID

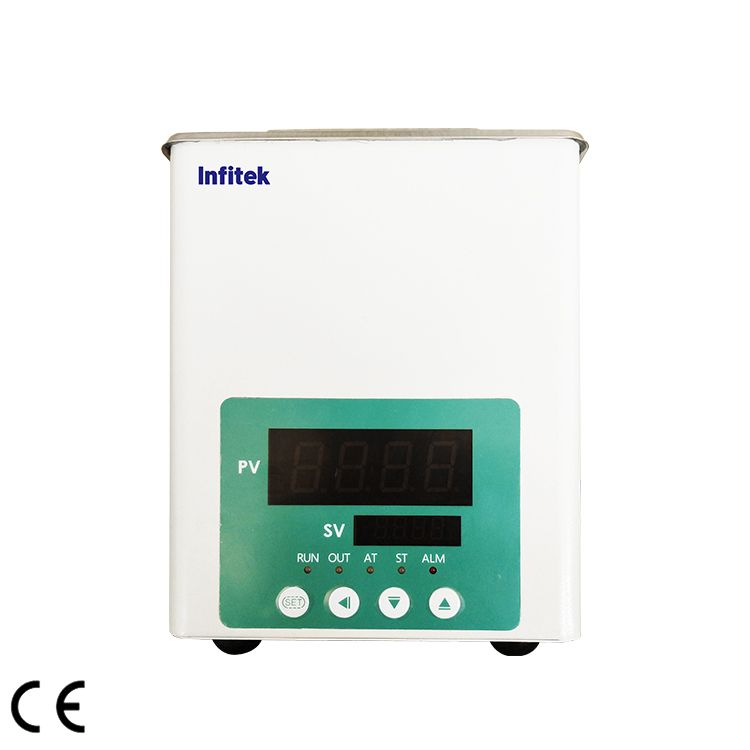

Water Bath, WB-1R1H-3
Description
Product Description：
1.Stainless steel stretching inner container and roof cover.
2.Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.
3.Add the electric drain switch, one-button operation ,convenient to drain, Note: single hole water baths have no drain function.
4.Power off when water shortage to ensure the safe operation of the product.
Specifications
| Model | WB-1R1H-3 | |
| Classification Specifications | 1 hole | |
| Heating Mode | Nature water convection heat transfer | |
| Function | Temp. Range | RT+5～100℃ |
| Temp. Resolution | 0.1℃ | |
| Temp. Motion | ±0.5℃ | |
| Temp. Uniformity | ±1.0℃ | |
| Structure | Inner Chamber | Stainless steel |
| Outer Shell | Cold – rolled steel plate, resistance to chemical reagents coating on the surface |
|
| Heater | Stainless steel heating tube | |
| Power Rating | 0.4kW | |
| Controller | Temp. Control Mode |
PID |
| Temp. Setting Mode |
Touch button setting | |
| Temp. Display Mode |
Measuring temperature displays on the three digital tubes upper row, set temperature displays on the lower row |
|
| Timer | 0～9999min（with timing wait function） | |
| Operation Function | Fixed temperature operation, timing function, auto stop. |
|
| Program Mode | Optional | |
| Additional Function | Deviation Correction, menu key locked, power failure back-up, power-off memory |
|
| Sensor | CU50 | |
| Safety Device | Over temperature alarm | |
| Specification | Inner Chamber size(W*L*H) (mm)） |
150*135 *150 |
| Exterior size (W*L*H)(mm) |
170*154 *210 |
|
| Packing size (W*L*H)(mm) |
240*230 *280 |
|
| Volume | 3.4L | |
| Load per rack | 5kg | |
| Shelf Number | 1 | |
| Power Supply （50/60Hz） Current rating |
AC220V/ 1.8A |
|
| NW/GW (kg） | 3.3/4 | |
| Optional Accessories | Shelf, RS485 interface, Recorder, External Communication | |
