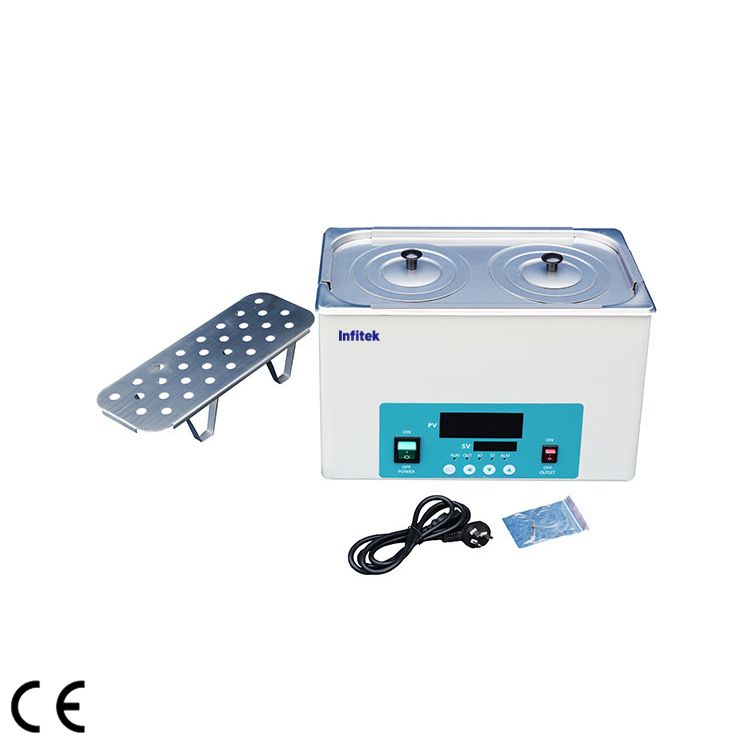

Water Bath, WB-1R2H-7

  • 1 chamber with 2 openings
  • Volume: 6.1L
  • Temp.Range:RT+5~100℃
  • Temp. Resolution Ratio:  0.1℃
  • Temp.Control:PID
  • Power Rating: 0.5kw

Share the product

Categories: ,

Description

DESCRIPTION

DESCRIPTION

Features
1.Stainless steel stretching inner container and roof cover.
2.Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.
3.Add the electric drain switch, one-button operation ,convenient to drain, Note: single hole water baths have no drain function.
4.Power off when water shortage to ensure the safe operation of the product.

Water Bath, WB-1R2H-7 face

Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.

Water Bath, WB-1R2H-7 tank

Stainless steel stretching inner container and roof cover

SPECIFICATIONS

SPECIFICATIONS

Model WB-1R2H-7
Classification Specifications   1 row & 2 holes
  Heating Mode Nature water convection heat transfer
  Function Temp. Range   RT+5~100℃
Temp. Resolution Ratio   0.1℃
Temp. Motion   ±0.5℃
Temp. Uniformity   ±1.0℃
 Structure  Inner Chamber   Stainless steel
 Outer Shell Cold-rolled steel plate, Surface electrostatic spraying
 Heater  Stainless steel heating tube
 Power Rating 0.5kW
 Controller  Temp. Control Mode   PID
Temp. Setting Mode  Touch button setting
Temp. Display Mode Measuring temperature: displayed on the upper row of the three-digit LED; Setting temperature: displayed on the lower row of the three-digit LED
 Timer  0~9999min(with timing wait function)
Operation Function Fixed temperature operation,
timing function, auto stop.
 Program Mode Optional
Additional Function Deviation Correction, menu key locked,  power failure back-up, power-off memory
 Sensor NTC
 Safety Device  Over  temperature alarm
  Specification  Inner Chamber size(W*L*H)(mm)) 300*135*150
Exterior size(W*L*H)(mm) 318*168*210
 Packing size(W*L*H)(mm) 390*240*280
 Volume 6.1L
Load per rack  5kg
Shelf Number 1
Power Supply(50/60Hz)Current rating AC220V/2.3A
 NW/GW (kg)  4.5/5

ACCESSORIES

ACCESSORIES

accessories11 accessories13 accessories14
