- 1 chamber with 6 openings, 2 rows
- Volume: 22.5L
- Temp.Range: RT+5~100℃
- Temp.Resolution: 0.1℃
- Power Rating: 1.5 kw

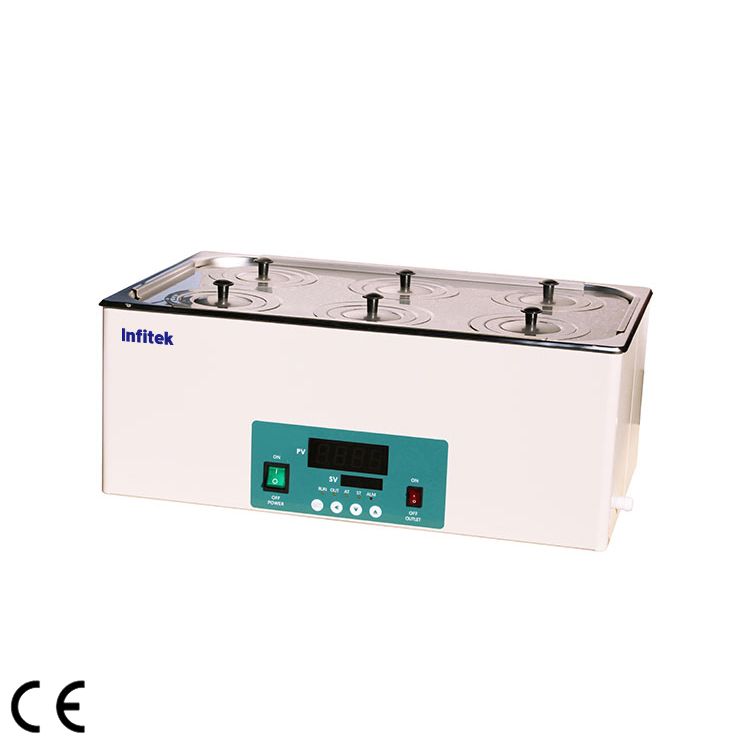

Water Bath, WB-2R6H-25
Description
1. Stainless steel stretching inner container and roof cover.
2.Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.
3.Add the electric drain switch, one-button operation ,convenient to drain, Note: single hole water baths have no drain function.
4.Power off when water shortage to ensure the safe operation of the product.
Specifications
Model | WB-2R6H-25 | |
Classification Specifications | 2 rows & 6 holes | |
Heating Mode | Nature water convection heat transfer | |
Function | Temp. Range | RT+5~100℃ |
Temp. Resolution Ratio | 0.1℃ | |
Temp. Motion | ±0.5℃ | |
Temp. Uniformity | ±1.0℃ | |
Structure | Inner Chamber | Stainless steel |
Outer Shell | Cold – rolled steel plate, resistance to chemical reagents coating on the surface | |
Heater | Stainless steel heating tube | |
Power Rating | 1.5kW | |
Controller | Temp. Control Mode | PID |
Temp. Setting Mode | Touch button setting | |
Temp. Display Mode | Measuring temperature displays on the three digital tubes upper row, set temperature displays on the lower row |
|
Timer | 0~9999min(with timing wait function) | |
Operation Function | Fixed temperature operation, timing function, auto stop. |
|
Program Mode | Optional | |
Additional Function | Deviation Correction, menu key locked, | |
power failure back-up, power-off memory | ||
Sensor | CU50 | |
Safety Device | Over temperature alarm | |
Specification | Inner Chambersize(W*L*H)(mm)) | 500*300*150 |
Exterior size(W*L*H)(mm) | 524*322*210 | |
Packing size(W*L*H)(mm) | 600*390*280 | |
Volume | 22.5L | |
Load per rack | 5kg | |
Shelf Number | 1 | |
Power Supply(50/60Hz) Current rating |
AC220V/6.8A | |
NW/GW (kg) | 7.5/9 | |
Optional Accessories | Shelf, RS485 interface, Recorder, External Communication |
