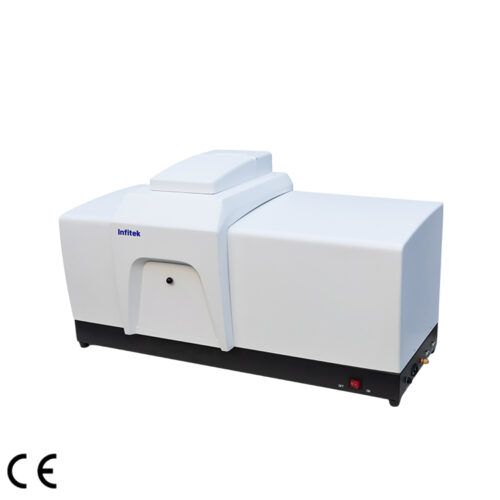

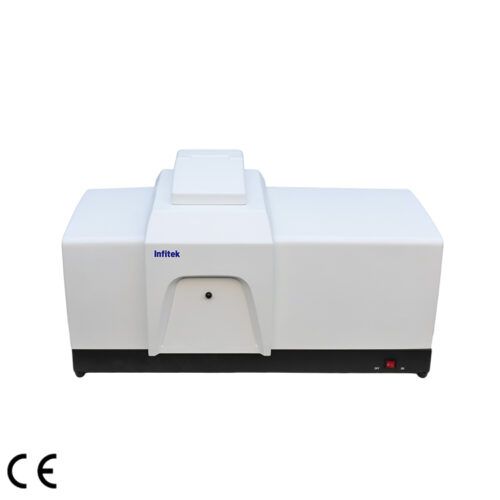

Wet Laser Particle Size Analyzer, PSA-L2000

  1. Semi-automatic&User-friendly one-key operation
  2. Water inflow, dispersion,test and analysis are controlled automatically
  3. Multi-language Support, Chinese&English (Others are available)
  4. Perfect accuracy and precision guaranteed

Share the product


High efficient-cost model, semi automatic operation.
Full built-in integrated dispersion system
Perfect accuracy and precision guaranteed
Advanced Detector Design improves testing efficiency&resolution

As high efficient-cost model, PSA-L2000 laser particle size analyzer with wet dispersion is most economical and popular since launched. After more than ten years of tests and numerous technical improvements, the structure and software are very mature and perform stably,  meeting industrial testing general requirements.

Semi-automatic&User-friendly one-key operation
Water inflow, dispersion,test and analysis are controlled automatically.
Multi-language Support, Chinese&English (Others are available)
Perfect accuracy and precision guaranteed
Excellent data processing ensures test result accuracy in different situations
User-defined Analysis
Unique unconstrained free fitting technology, make particle analysis not restricted by any function, truly reflect particles distribution, ensure the good accuracy.
Advanced Detector Design improves measurement limit&resolution.
Converging light Fourier transform light path, efficiently improve resolution ratio of sub-micron particles.


Model PSA-L2000
Standard ISO13320-1:1999, GB/T19077.1-2008, Q/JWN001-2009
Measurment Range 0.1μm-300μm
Channels Number 39
Accuracy error <1%   (National Standard Sample D50 )
Repeatability error <1%   (National Standard Sample D50 )
Light sources High performance He-Ne Laser (λ= 632.8nm,  P>2MW,

Life >25000hour)




Ultrasonic Frequency:40KHz   Power:35W,   Time: ≥1S
Stir Revolutions Speed: 0-300RPM (Adjustable)
Circulate Rated Flow:8L/min    Rated Power:10W
Sample Pool Volume:350mL

Sample Pool

Volume: 10mL ( Optional)
Operation Mode Display control+computer analysis
Optical Calibration System Manual
Measurment Time <2min
Dimensions(L*W*H) 66×32×40cm
Net Weight 25Kg
