Blood gas and electrolyte analyzer is considered the most important tool for diagnosis in patients with either respiratory or metabolic abnormalities.
Blood gas and electrolyte analyzers are measured in the clinical laboratories In both serum and whole blood sample received for arterial blood gas (ABG) analysis.
Application
Blood gas and electrolyte analyzer includes blood gas measuring items (PH, PCO2, PO2). electrolyte
measuring items (Na+, K+, CH, Ca2+). It is used to detect partial pressure of Carbon Dioxide (PCO2),and partial pressure of Oxygen (PO2) value.
Clinical Dept.
ICU, Examination Dept., Respiration Medicine Dept, Pediatrics ICU, Neurosurgery, Cardiology Dept,
Anesthesia Dept., Surgical Dept., Emergency Dept., etc.
Features
Besides for the detection of blood gas, it also has option to test electrolyte items K+, Na+, CI-,
and Ca2+, allowing for multi – function detection.
Solid electrode technology
Liquid calibration technology
Wet measurement mode, with good repeatability and high accuracy
Catridge type reagent package
8”colorful graphical touch screen operation
Each measurement channel can be used separately.
| Model | Measurement Items | Calculation Parameters |
| BGA-150-7 | PH, PCO2,PO2, Na+,K+, Cl-,Ca2+ | PH(TC), PCO2(TC), PO2(TC),HCO3, SBC, BE, Beecf,TCO2, SO2%,P50,A-Ado2,RI,Tca, nCa |

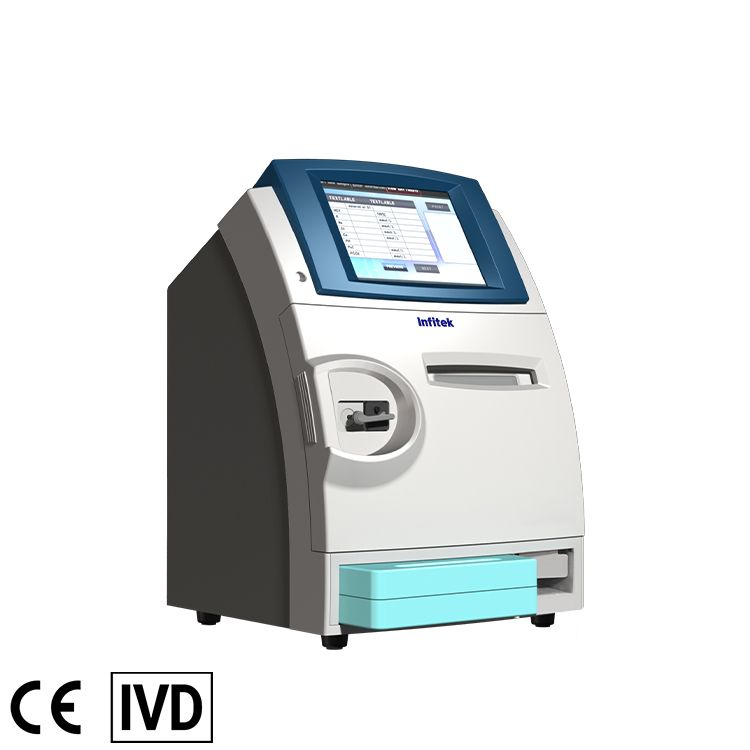

| Product | Blood Gas and Electrolyte Analyzer, BGA-150-7 |
| Sample | whole blood 150ul |
| Test Method | automatic sampling |
| Testing time | 50s |
| Printer | build-in thermal printer |
| Display screen | 8″TFT colorful LCD touch screen |
| Storage | ≥5000 test results |
| lnterfaces | RS232 |
| Power supply | 100v~240V , 47Hz~63Hz |
| ltem | Reference Range | Linearity Range |
| K+ | 3.5- 5.5 mmol/L | 1.60 – 7.50 mmol/L |
| Na+ | 135- 145 mmol/L | 100 – 180 mmol/L |
| Cl- | 96 – 108 mmol/L | 85- 150 mmol/L |
| Ca++ | 1.1- 1.4 mmol/L | 1.50 – 3.00 mmol/L |
| PH | 7.35- 7.45 | 3.000 – 12.0000 |
| PO2 | 60 – 100 mmHg | 0- 800.0 mmHg |
| PCO2 | 35- 45 mmHg | 2.0-200.0 mmHg |
