- Maximum Specimen Size: 39mm×40mm
- Section Thickness Setting Range: 0.25-100μm
- Vertical Specimen Stroke: 70mm
- Horizontal Feed: 28mm
- Feed speed adjust: 1500μm/s ~ 3500μm/s
- For paraffin section, Conventional slices

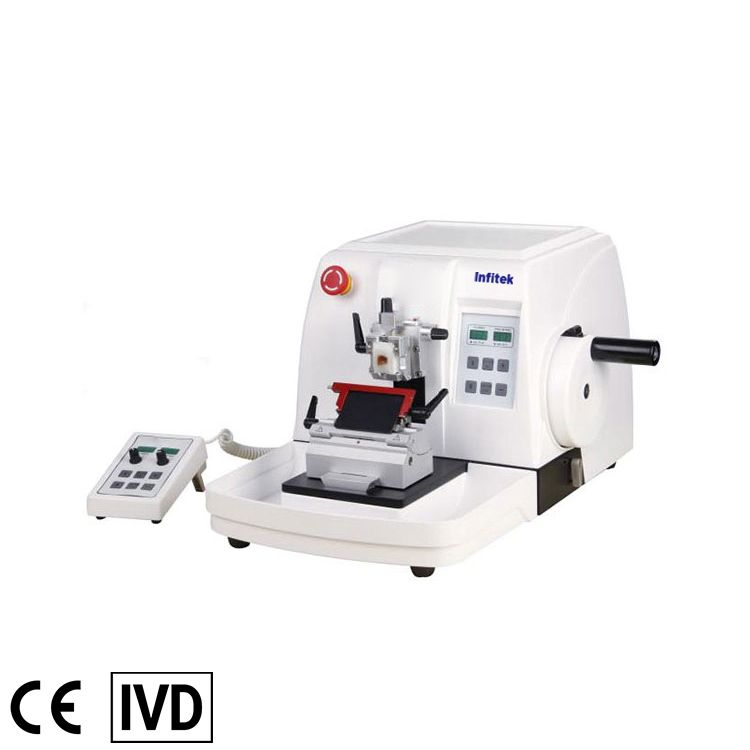

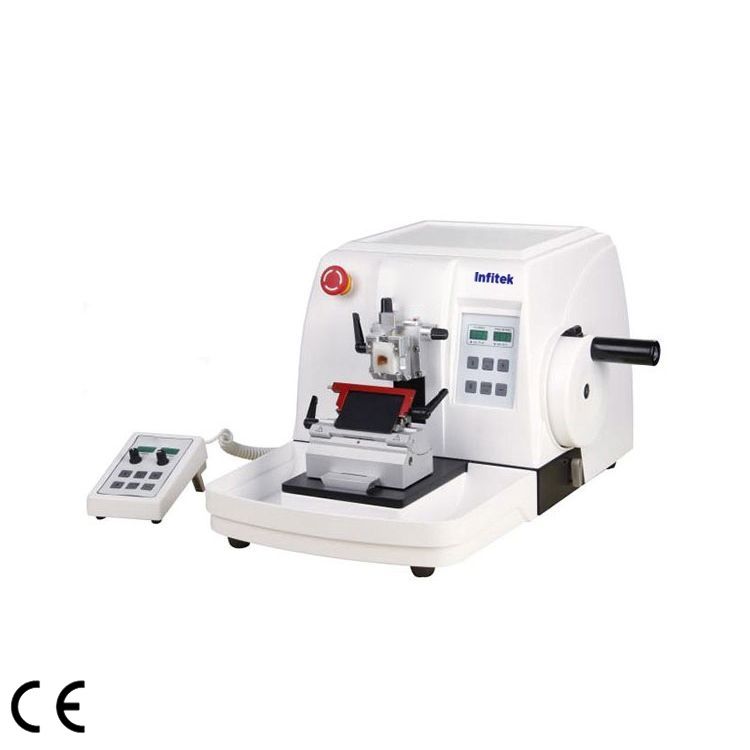

Fully Automated Microtome, RMT-FA398
Description
- The feeding system uses an intelligent control mechanism; enabling quick switching between manual or automated smart sectioning modes; automatic slicing speed is adjustable;
- Advanced drive systems and multiple functions including sectioning, trimming, fast forward, fast backward, quick mode conversion including automatic retraction;
- Incorporates an international advanced screw motion mechanism to ensure precision, thus achieving superior sectioning performance;
- Pure-green digital display of slice thickness, trimming thickness, slice count and slice speed;
- Trimming and slicing are operated under a control system, and can be switched easily. The automated slicing controller can be equipped at either the left or right side; when automated slicing controller is off, semi-auto slicing or trimming can still be performed;
- Automatic sectioning speed is continuously adjustable
- With safety and emergency braking systems, security alarm systems, driver overload protection and an auto-sleep protection system;
- Features easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp);
- Hand-wheel balance is precisely adjusted and can be locked at any position to ensure safety of operation;
- Blade holder can be laterally moved to avoid moving the blade with direct contact, thereby enabling use of the entire length of the blade. (three different segments);
- The red protection bar on the blade holder covers the whole length of blade to protect the user and the push bar enables easy changing of the blade;
- Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety and convenience of sectioning;
- Large-volume waste tray is easy to remove, and items such as deposable blades can be stored on the top of the housing.
Specifications
| Model | RMT-FA398 |
| Section Thickness Setting Range | 0.25—100μm 0.25—2.5μm increment 0.25μm 2.5—5μm increment 0.5μm 5.0—10μm increment 1μm 10—30μm increment 2μm 30—60μm increment 5μm 60—100μm increment 10μm |
| Trimming Thickness Setting Range | 1—600μm 1—10μm increment 1μm 10—20μm increment 2μm 20—50μm increment 5μm 50—150μm increment 10μm 150—600μm increment 50μm |
| Retraction Setting Range | 0—50μm ( 0 is off ) 5-10-15—50 (optional) |
| Minimum Setting of Sectioning Thickness | 0.25μm |
| Horizontal Feed | 28mm |
| Vertical Specimen Stroke | 70mm |
| The sample holder | can rotate 360°, but the standard one cannot rotate (optional free) |
| Maximum movement of tool holder base | 60mm (front to back) |
| Maximum left and right movement of the knife holder | 23mm |
| Specimen Orientation | XY – 8° |
| Maximum Specimen Size | Standard wax block clip 39mm×40mm （Other sizes available） |
| Feed rate | slow speed: 15000um/s, fast speed: 3500um/s |
| Slice accuracy | ±5% |
| Automatic slicing speed | adjustable from 0-15 levels |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 150W |
| Dimensions | 580× 475× 340mm(W×D×H) |
| Net Weight | 41kg |
