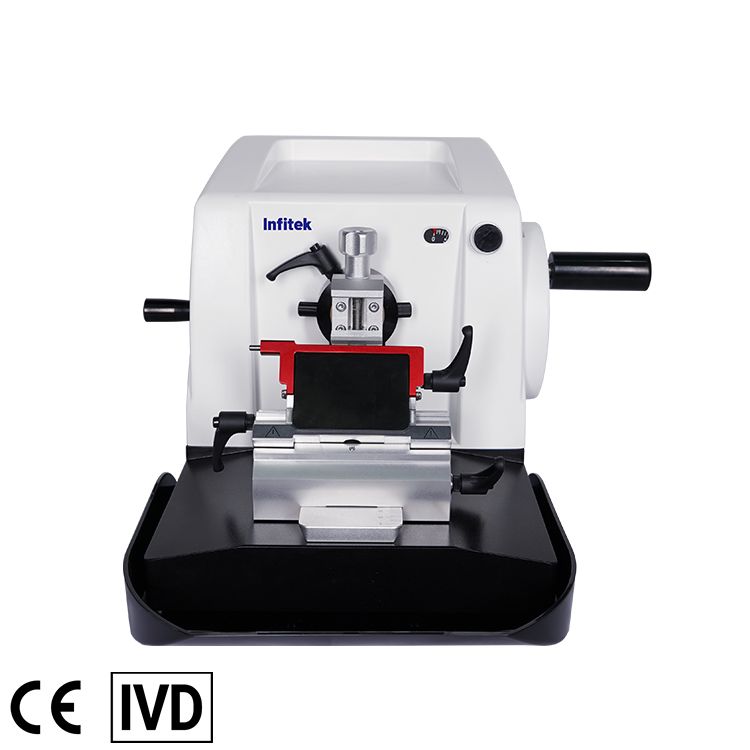

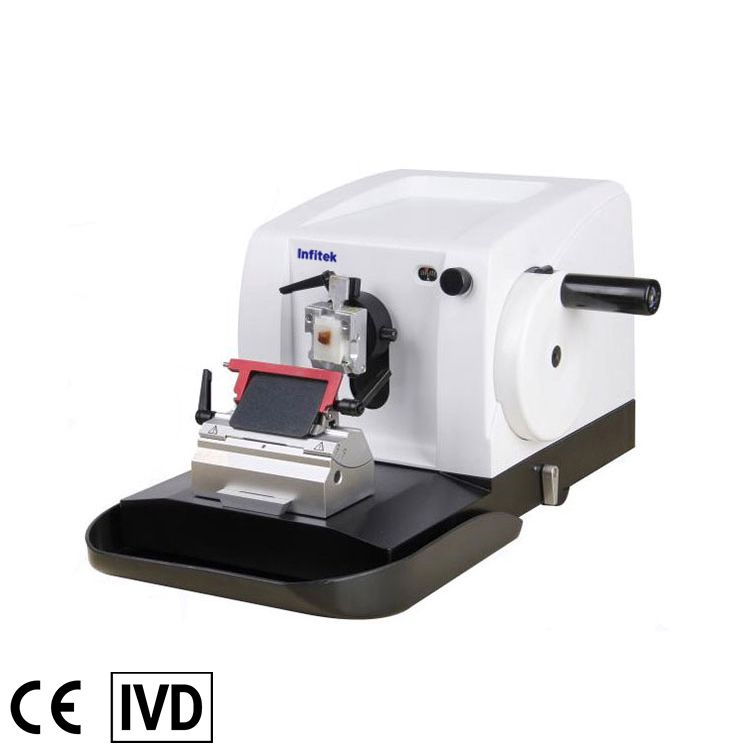

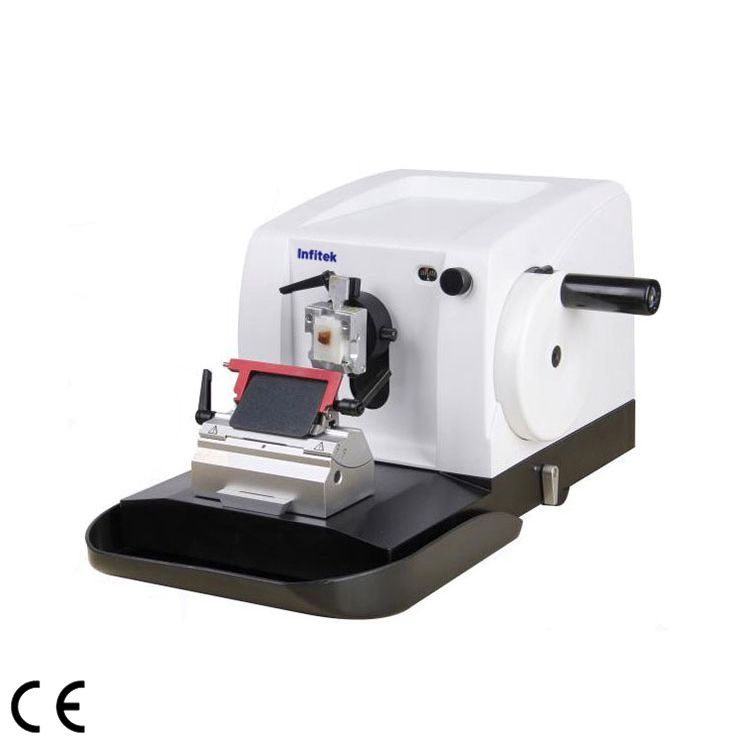

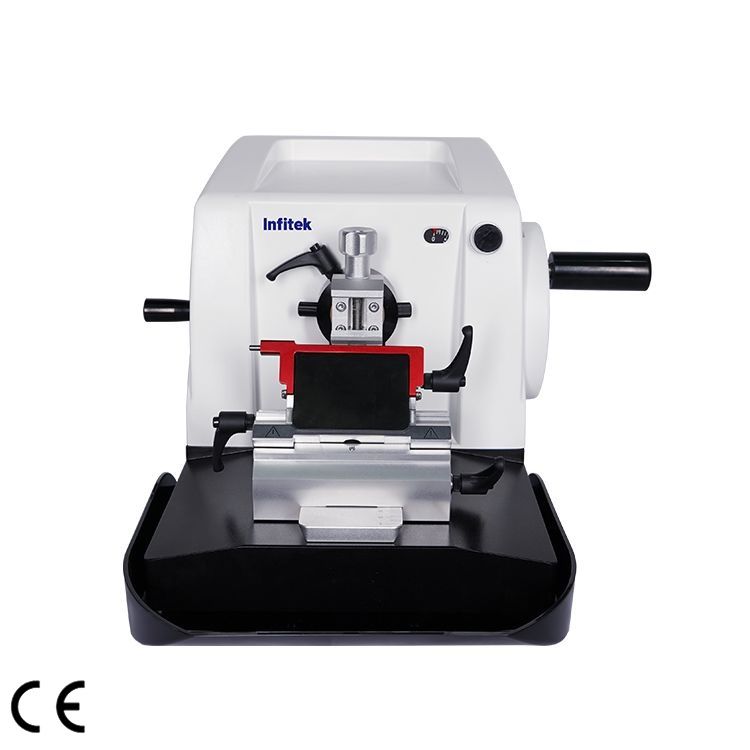

Name: Rotary Microtome, RMT-M260 - Infitek
Brand: Infitek

Description

Streamlined housing facilitates the cleaning process without opening the housing, Also can put some consumables
Uses imported cross-roller guide rails and a screw motion mechanism to ensure precision
Advanced high-precision micro-drive feed system
Hand-wheel can be locked at any position
Cassette holder can be locked at any position along each of the three axes
The precise positioning system provides accurate X- and Y- axis adjustment
Easy and fast switching between two specimen clamps (paraffin block clamp and cassette clamp);
The red bar on the blade holder covers the whole length of blade
The blade holder can be laterally moved and adjusted, without manually move the blade, enabling use of the full length of the blade (slicing at three different segments);
Hand-wheel balance is precisely adjusted and can be locked at any position
Magnetically fixed large waste tray is easy to install and uninstall

Specifications

RMT-M260
Section Thickness Setting Range	0–60μm	Movement Range of the Base of Blade Holder Base	0-60mm (front to back)
Section thickness setting options	2–10μm increment 1μm	Movement Range of the Blade Press plate	0-23mm
	10–20μm increment 2μm	Specimen Holder Rotation	at any angle within360 degrees
	20–60μm increment 5μm	Maximum Specimen Size	Standard wax block clip 39mm×40mm （Other sizes available）
Trimming Thickness Setting Range	0- 60μm	Specimen Orientation	XY – 8°
Minimum Setting of Sectioning Thickness	1μm	Precision Error	±1％
Total Horizontal Specimen Feed	29mm	Dimensions	610×530×420mm(LWH)
Vertical Specimen Stroke	60mm	Weight	40kg
