- Maximum Specimen Size: 39×40mm
- Section Thickness Setting Range: 0- 60μm
- Vertical Specimen Stroke: 52mm
- Horizontal Specimen Feed: 28mm
- High-precision micro-drive feed system
- For paraffin section, Conventional slices

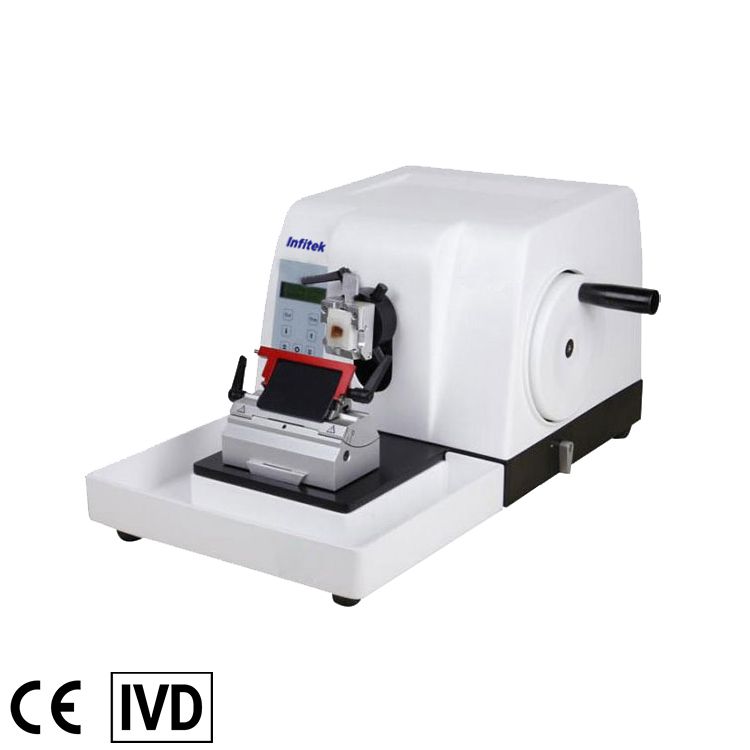

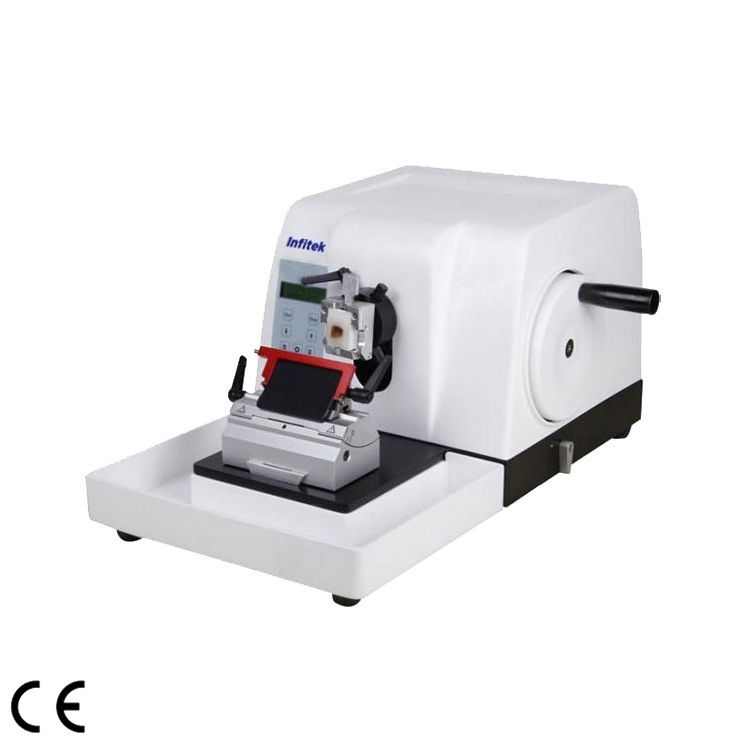

Semi-automated Rotary Microtome, RMT-SA358
Description
- This product adopts a streamline design, and possesses advanced features with stable performance and easy operation;
- Specimen feed drive is controlled by an intelligent, high precision control system, enabling semi-ultrathin slicing, starting from a thickness of 0.25μm;
- Specimen feeding drive utilizes an intelligent control system, it has high precision on cutting
- Advanced drive systems; multiple functions including sectioning, trimming, fast forward, fast backward, conversion;
- Adopts imported cross-roller guide rails and a screw motion mechanism to ensure precision, thus achieving superior sectioning performance;
- LCD screen shows section and trimming thickness, number of sections and trims;
- Sectioning and trimming are completed through the control system;
- Equipped with a safety alert system, drive-overload protection mechanism and an automatic standby protection mechanism;
- Easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp);
- Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety and convenience of operation;
- Blade holder can be laterally moved to avoid moving the blade with direct contact, thereby utilizing the entire length of blade (three different segments);
- The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables the easy changing of the blade;
- Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety and convenience of sectioning;
- Large-volume waste tray is easy to remove, and items such as deposable blades can be stored on the top of the housing.
Specifications
| Model | RMT-SA358 |
| Section Thickness Setting Range | 0 – 60μm 0 – 1μm increment 0.25μm 1 – 10μm increment 1μm 10 – 20μm increment 2μm 20 – 60μm increment 5μm |
| Trimming Thickness Setting Range | 0- 900μm 1 – 10μm increment 1μm 10 – 20μm increment 2μm 20 – 100μm increment 5μm 100 – 900μm increment 50μm |
| Minimum Setting of Sectioning Thickness | 0.25μm |
| Total Horizontal Specimen Feed | 28mm |
| Vertical Specimen Stroke | 52mm |
| Movement Range of the Base of Blade Holder Base | 0-60mm (front to back) |
| Movement Range of the Blade Press plate | 0-23mm |
| Specimen Clamp Rotation | any angle within 360 degrees |
| Specimen Orientation | XY – 8° |
| Maximum Specimen Size | Standard wax block clip 39mm×40 mm（Other sizes available） |
| Precision Error | ±1% |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 100W |
| Dimensions | 670×550×470mm(W×D×H) |
| Gross/Net weight | 45/20 KG |
