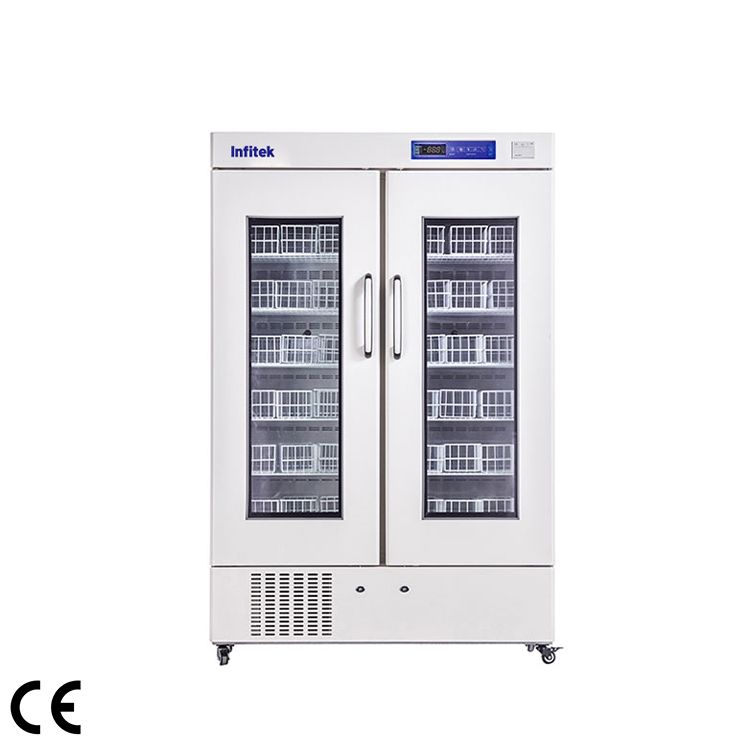

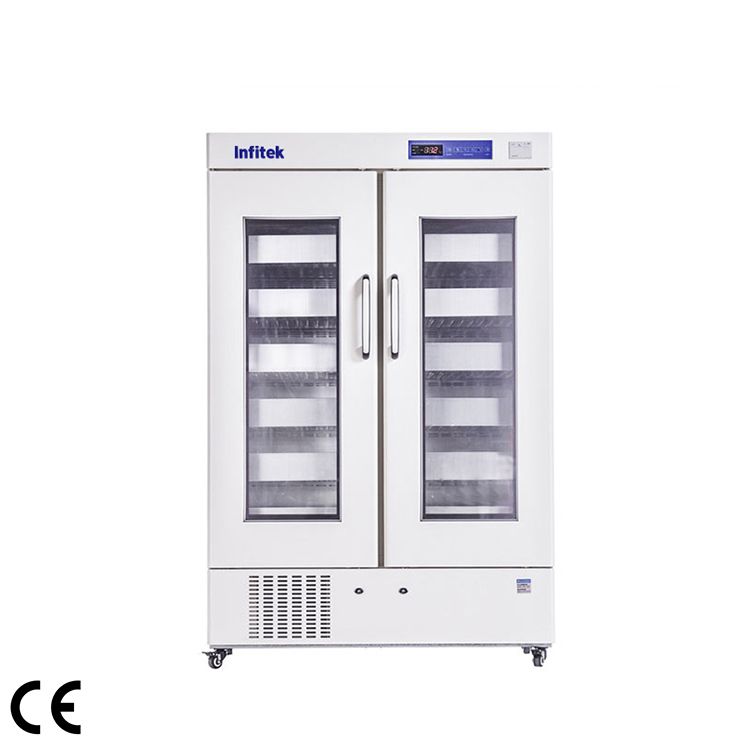

Double-Door Blood Bank Refrigerator, BR4-660, BR4-1000

Professional Blood Bank refrigerators store blood, as well as medicines and bioproducts, Suitable for blood banks, hospitals, and CDCs.

  1. Capacity: 658L, 1008L
  2. Temperature range(℃): 4±1℃
  3. Cooling: Forced -air Cooling
  4. Defrost: Auto
  5. Refrigerant: R134a
  6. Compressor brand/QTY: SECOP/1
  7. Battery back-up system
  8. Temperature controller: Microprocessor
  9. Outer door/Type: 2/Heating & Foam glass door

Share the product


Blood Bank Refrigerators store and protect refrigerated whole blood, blood components, and blood products by maintaining a uniform temperature.

Purpose of Blood Bank refrigerator

Professional Blood Bank refrigerators store blood, as well as medicines and bioproducts.
Suitable for blood banks, hospitals, and CDCs.

Reliability and Key Features
Microprocessor-controlled forced-air cooling with an electrical heat compensation system.
Digital temperature display for upper and low sections in the chamber with 0.1℃ resolution.
Consistent cabinet temperature 2-6℃.
High-tech integrated sensors to display and control temperature.
Auto-defrost to remove moisture on the cooling surface.
Large digital display for easy observation.

Safety of Blood Bank Refrigerators
Build-in backup battery to display temperature and to operate audible and visual alarm systems for up to 72 hours without ac power.
Equipped with a complete temperature alarm system featuring an audible buzzer and visible flashing light.
Five alarm conditions: High/low temperature, power failure, voltage abnormal, door ajar, backup battery.
Standard with thermal printer.
Standard with an acrylic inner small door, for less affection on other room when one door open.

Ergonomic Design of Blood Bank Refrigerators
Safety lock to prevent unauthorized access.
Storage space designed for easy sorting of various blood products.
Caster design and interior light.


Model BR4-660 BR4-1000
Specifications Shelf/drawer   Shelves/12 Drawers/12
Cooling Forced -air Cooling Forced -air Cooling
Defrost Auto Auto
Refrigerant R134a R134a
Power consumption(kWh/24h) 6.31 8.53
Noise(db) 51.2 dB(A) 53.6 dB(A)
Ambient temperature(℃) 10~32℃ 10~32℃
Temperature range(℃) 4±1℃ 4±1℃
Cooling system Compressor brand/QTY SECOP/1 SECOP/1
Sensor NTC NTC
Temperature controller Microprocessor Microprocessor
Display Digital display Digital display
Power Voltage/frequency(V/Hz) 220/50Hz 220/50Hz
Power(W) 364W 513W
Current(A) 2.42A 2.37A
Material Inside material 304 Stainless steel 304 Stainless steel
Outside material Color sprayed steel Color sprayed steel
Insulation PURF PURF
Size Capacity(L/cu.ft) 658/23.23 1008/35.59
Bloodbags(450ml) 360 576
NW./ 202/257 265/335
Exterior size(W×D×H)(mm) 1220×640×1885 1240×860×1895
Interior size(W×D×H)(mm) 1100×454×1325 1100×684×1325
Package size(W×D×H)(mm) 1330×740×2120 1325×970×2130
CBM 2.09 2.74
20GP/40GP/40HQ 12/27/27 8/18/18
Alarm High/low temperature Y Y
Power off Y Y
Temperature controller malfunction Y Y
Backup battery malfunction Y Y
Ambient temperature 10~32℃ 10~32℃
Power failure backup system(alarm) 72h 72h
Accessories Caster Y Y
Outer door/Type 2/Heating & Foam glass door 2/Heating & Foam glass door
Inner door 6 6
Test hole 1/25MM 1/25MM
Thermal printer Y Y
Temperature recorder Optional chart recorder Optional chart recorder
