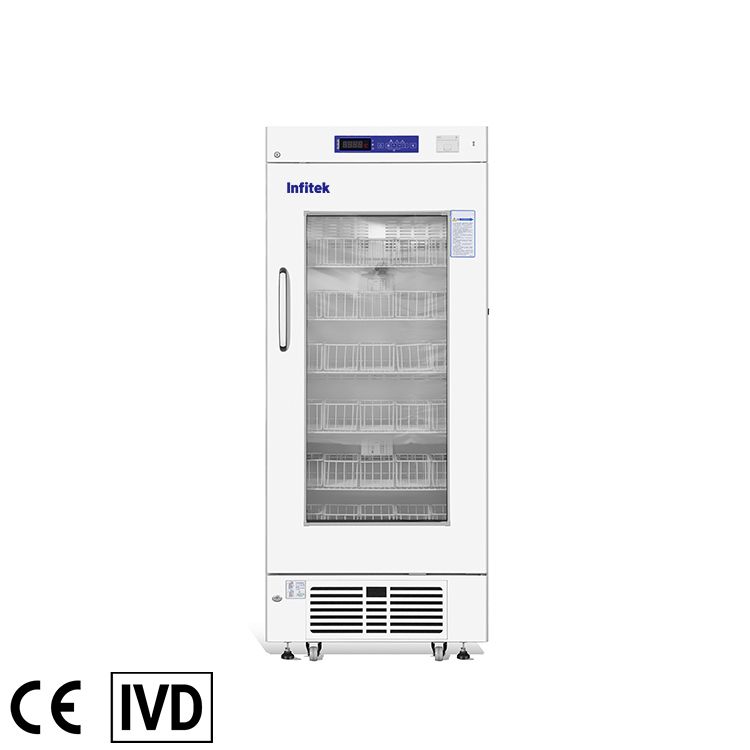

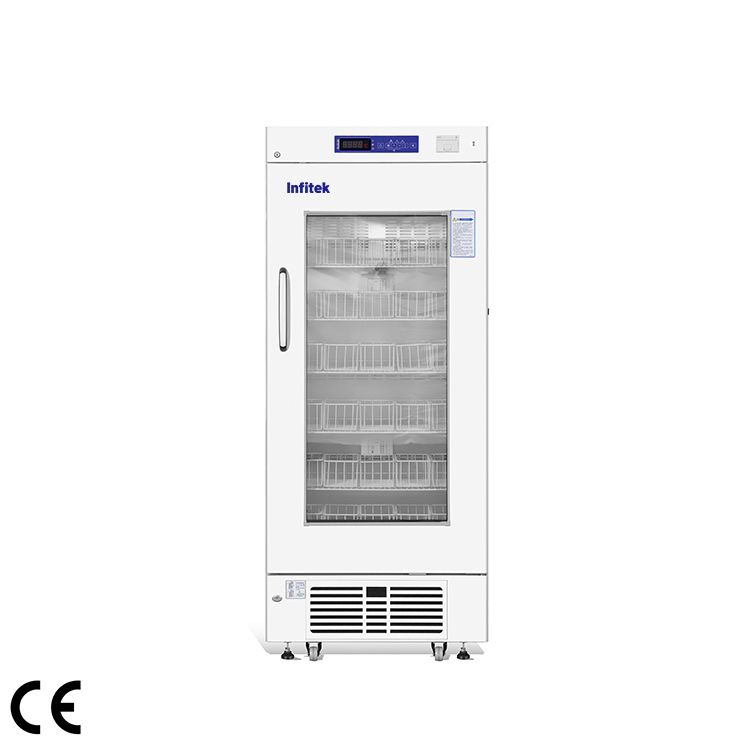

Single Door Blood Bank Refrigerator, BR4-370

Description

DESCRIPTION

Purpose of Blood Bank Refrigerator

Professional refrigerator to store blood, as well as medicines and bio products.
Suitable for blood banks, hospitals, CDCs.

Reliability and Key Features

Microprocessor controlled forced-air cooling with electrical heat compensation system.
Digital temperature display for upper and low sections in chamber with 0.1℃
Consistent cabinet temperature 2-6℃.
High-tech integrated sensors to display and control temperature.
Auto-defrost to remove moisture on cooling surface.
Large digital display for ease of observation.

Safety of Blood Bank Refrigerator

Build-in backup battery to display temperature and to operate audible and visual alarm systems for up to 72 hours without ac power.
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
Five alarm conditions: High/low temperature, power failure, voltage abnormal, door ajar, backup battery.
Standard with laser printer.
Standard with acrylic inner small door, for less affection on other room when one door open.

Ergonomic Design

Standard with acrylic inner small door, for less affection on other room when one door open.

Caster design and interior light.

	Model	BR4-370
Specifications	Shelf/drawer	Shelves/6
	Cooling	Forced -air Cooling
	Defrost	Auto
	Refrigerant	R134a
	Power consumption(kWh/24h)	4.28
	Noise(db)	51.2 dB(A)
	Ambient temperature(℃)	10~32℃
	Temperature range(℃)	4±1℃
Cooling system	Compressor brand/QTY	EMBRACO/1
	Sensor	NTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	325
	Current(A)	2.2A
Material	Inside material	304 Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	368/12.98
	Bloodbags (450ml)	200
	NT./GT.（kg)	128/135
	Exterior size(W×D×H)(mm)	785×565×1920
	Interior size(W×D×H)(mm)	685×429×1380
	Package size(W×D×H)(mm)	890×650×2100
	CBM	1.21
	20GP/40GP/40HQ	21/44/44
Alarm	High/low temperature	Y
	Power off	Y
	Temperature controller malfunction	Y
	Backup battery malfunction	Y
	Ambient temperature	10~32℃
	Power failure backup system(alarm)	72h
Accessories	Caster	Y
	Outer door/Type	1/Heating & Foam glass door
	Inner door	4
	Test hole	1/25MM
	Thermal Printer	Y
	Light	LED
	Temperature recorder	Optional Datalooger
