- Capacity:108L
- Cooling:Forced -air Cooling
- Defrost:Auto
- Refrigerant:R134a, CFC-Free
- Compressor brand/QTY:EMBRACO/1
- Sensor:NTC
- Temperature controller:Microprocessor
- Outer door/Type：1/Heating & Foam glass door

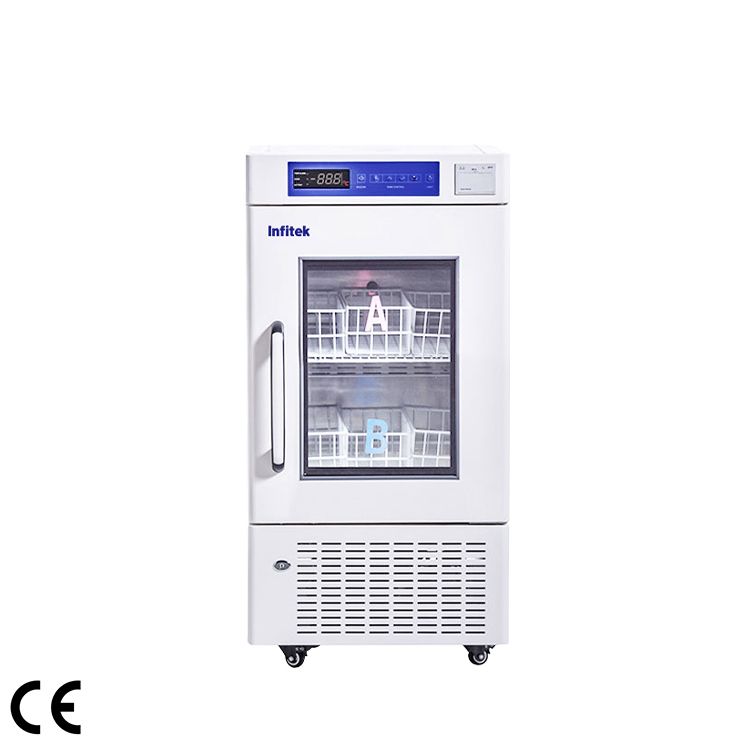

Single Door Blood Refrigerator, BR4-110
Description
Purpose
- Professional refrigerator to store blood, as well as medicines and bio products.
- Suitable for blood banks, hospitals, CDCs.
Reliability and Key Features
- Microprocessor controlled forced-air cooling with electrical heat compensation system.
- Digital temperature display for upper and low sections in chamber with 0.1℃
- Consistent cabinet temperature 2-6℃.
- High-tech integrated sensors to display and control temperature.
- Auto-defrost to remove moisture on cooling surface.
- Large digital display for ease of observation.
Safety
- Build-in backup battery to display temperature and to operate audible and visual alarm systems for up to 72 hours without ac power.
- Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
- Five alarm conditions: High/low temperature, power failure, voltage abnormal, door ajar, backup battery.
- Standard with laser printer.
- Standard with acrylic inner small door, for less affection on other room when one door open.
Ergonomic Design
- Safety lock to prevent unauthorized access.
- Storage space designed for easy sorting of a variety of blood products.
- Caster design and interior light.
Specifications
| Model | BR4-110 | |
| Specifications | Shelf/drawer | Shelves/2 |
| Cooling | Forced -air Cooling | |
| Defrost | Auto | |
| Refrigerant | R134a | |
| Power consumption(kWh/24h) | 1.95 | |
| Noise(db) | 49.6dB(A) | |
| Ambient temperature(℃) | 10~32℃ | |
| Temperature range(℃) | 4±1℃ | |
| Cooling system | Compressor brand/QTY | EMBRACO/1 |
| Sensor | NTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power | Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 175W | |
| Current(A) | 1A | |
| Material | Inside material | 304 Stainless steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | 108/3.81 |
| Bloodbags (450ml) | 66 | |
| NT./GT.（kg) | 74/95 | |
| Exterior size(W×D×H)(mm) | 540×630×1030 | |
| Interior size(W×D×H)(mm) | 432×462×478 | |
| Package size(W×D×H)(mm) | 700×585×1200 | |
| CBM | 0.49 | |
| 20GP/40GP/40HQ | 32/68/68 | |
| Alarm | High/low temperature | Y |
| Power off | Y | |
| Temperature controller malfunction | Y | |
| Backup battery malfunction | Y | |
| Ambient temperature | 10~32℃ | |
| Power failure backup system(alarm) | 72h | |
| Accessories | Caster | Y |
| Outer door/Type | 1/Heating & Foam glass door | |
| Inner door | 2 | |
| Test hole | 1/25MM | |
| Thermal Printer | Y | |
| Light | LED | |
| Temperature recorder | Optional Datalooger |
