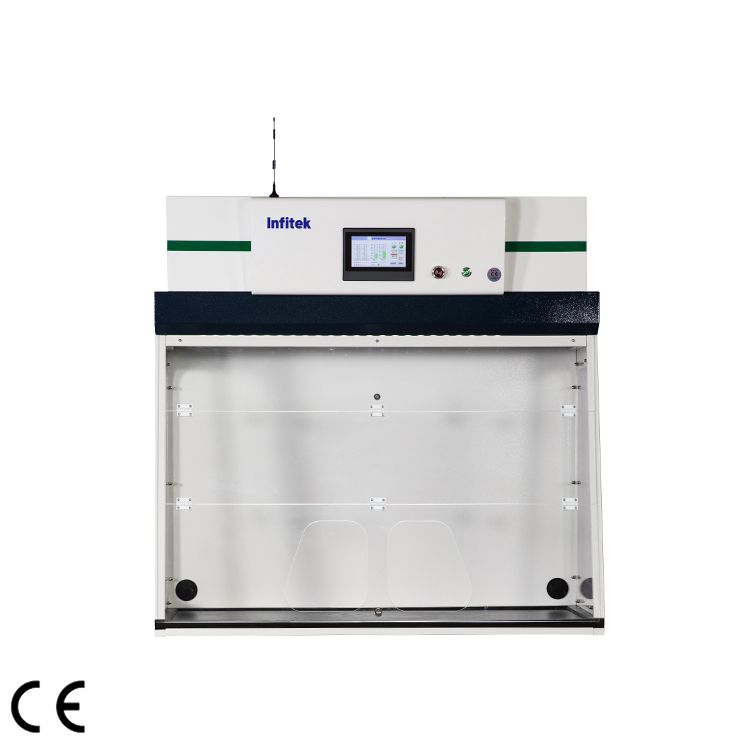

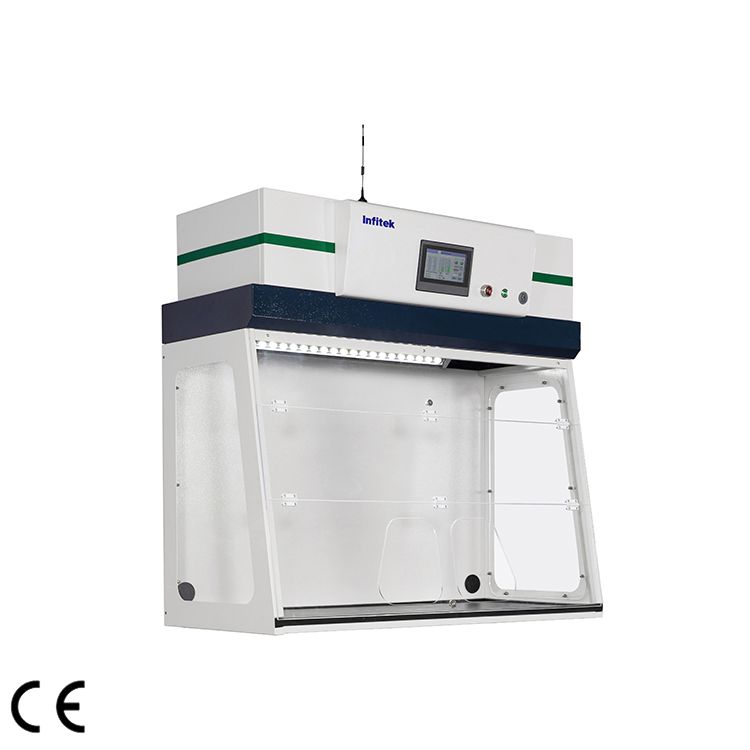

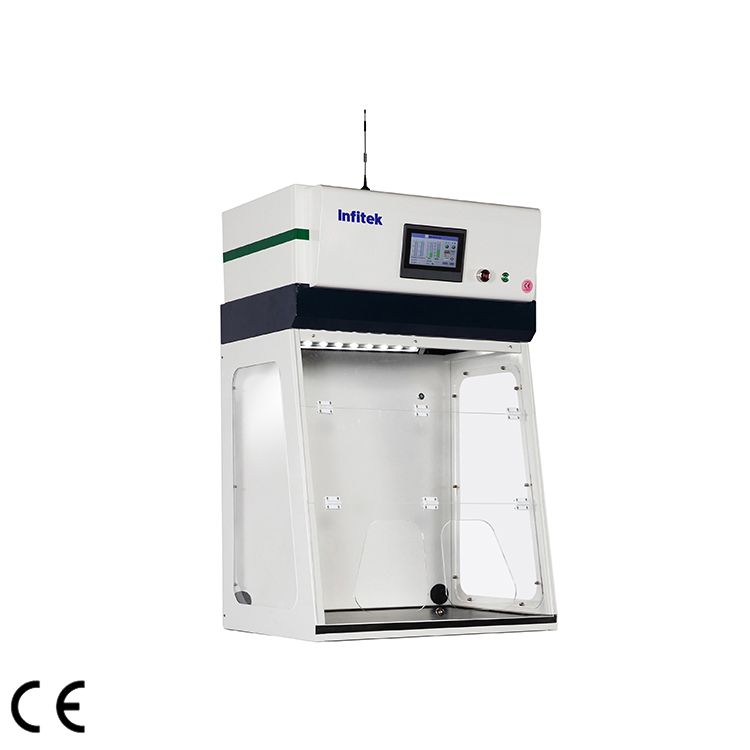

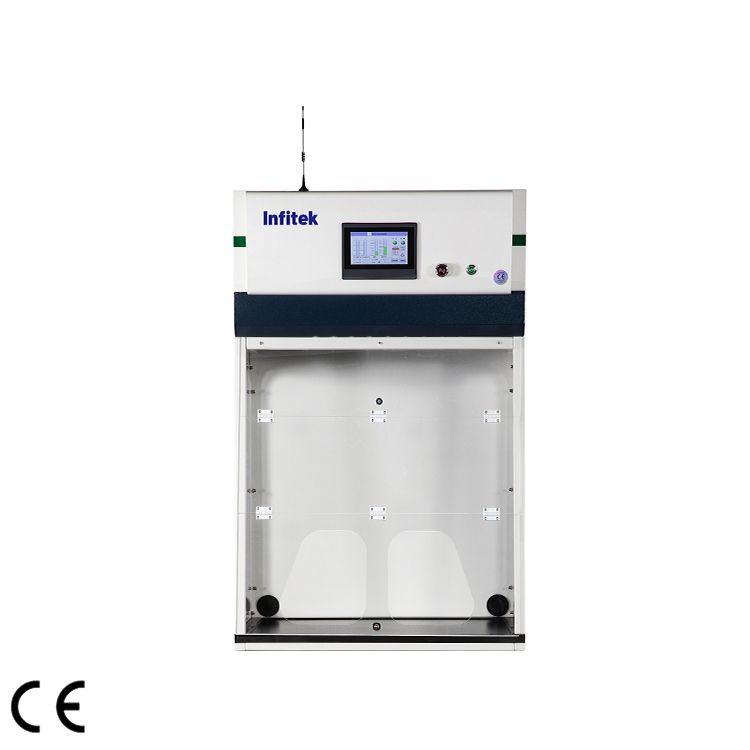

Ductless Fume Hood, FMH Series

  1. 99.995% high efficiently filtering
  2. Advanced VOC Detector port
  3. LED touch screen control system
  4. Silent turbine fan
  5. Explosion proof lighting system
  6. Transparent acrylic glass>6mm thickness

Share the product

Description

DESCRIPTION

DESCRIPTION

1、Advanced VOC Detector port detects pollution in time, with special alarm system.

2、Unique designed LED touch screen control system, which combine all data in one piece computer control panel, easy to control fan speed and lighting, etc and convenient to set up and monitor all data.

3、Silent turbine fan draws chemical vapors from bottles into a HEPA filter with high absorption capacity. No static, no spark and super silence motor. Various type filters to realize 99.99% high efficiently filtering.

4、Lighting system are controlled by control panel.

5、The main material is ≥1.2mm galvanized steel plate, electrostatically sprayed with epoxy resin, and covered with a durable chemical-resistant lead-free coating to maintain a high finish and minimize the impact of corrosion and moisture.

6、LED lighting power equiv- alent to 25W fluorescent lamp, no heat, safety ,and does not affect the ex-perimental environment temperature, energy saving, environmental protection, long life.

7、Transparent acrylic glass>6mm thickness with good anti-corrosive performance. Two operation holes, reverse sash window design, easy to access.

8、Epoxy resin countertops have excellent chemical stability, super corrosion resistance, good impact resistance without damage, excellent high temperature resistance, one-piece transparent core, long service life, no delamination, no expansion, no cracking.

WORKING PRINCIPLE

WORKING PRINCIPLE

3 Choose a proper high efficient filter according to the chemicals

4 The hazardous air goes though molecular filter become fresh air

fume-hood 1 The turbine motor draws the air from the outside of cabinet

2 The air brings the hazardous vapour into the filtration system

ADVANTAGES

ADVANTAGES

fume-hood

Unique designed LED touch screen control system,which combine all data in one piece computer control panel, easy to control fan speed and lighting. etcand convenient to set up and monitor all data.

fume-hood

Advanced VOC Detector port detects pollution in time, with special alarm system.

fume-hood

Silent turbine fan draws chemical vapors from bottles into a HEPA filter with high absorption capacity.No static, no spark and super silence motor. Various type filters to realize 99.99% high efficiently filtering.

fume-hood

Transparent acrylic glass>5mm thinkness with good anti-corrosive performance.Two operation holes, reverse sash window design, easy to access.

fume-hood

High quality solid physicochemical working table with anti-corrosive anti-impact high temperature resistant, abrasion resistant resistant , and easy to clean.

SPECIFICATIONS

SPECIFICATIONS

Model Specification Configure(customized) Optional parts
FMH-800 External Dimension(mm):
800*620*1245mm
Filters(pcs): 4
Pre filters(pcs): 2
Fans(pc): 1
LED Lamp(pc):1
Display screen: 7 inch LCD touch screen
Worktable: Epoxy resin board
Power cord(pc): 1
Control systerm(unit): 1
Alarm System: VOC alarm, temperature and humidity alarm
Base cabinet
Stainless steel table-board
AnemometerUV lamp

Water tap

Water sink

Optional alarm:
Ammonia alarm
Formaldehyde alarm
HCL alarm

lnternal Dimension(mm):
781*574*934mm
Air Capacity(m3/h): 230m3h
Face velocity:0.4-0.6m/s
Voltage:110V-240V
Frequency: 50-60Hz
Power: 42w
Filter Model:
SFGL OG: Organic filter
SFGL AG: Inorganic filter
SFGL FO:Formaldehyde filter
SFGL AM:Ammonia filter
SFGLH14:HEPA filter
Rated currents: 2A
Volume: 40-52 dBA
Operation hole: Trapezoid
Model Specification Configure Optional parts
FMH-1000 External Dimension(mm):
1000*620*1245mm
lnternal Dimension(mm):
981*574*934mm
Air Capacity(m’/h): 230m3/h
Face velocity: 0.4-0.6m/s
Voltage: 110V-240V
Frequency: 50-60Hz
Power: 42w
Rated currents: 2A
Volume: 40-52 dBA
Operation hole: Trapezoid
Filters(pcs): 4
Pre filters(pcs): 2
Fans(pc): 1
LED Lamp(pc):1
Display screen: 7 inch LCD touch screen
Worktable: Epoxy resin board
Power cord(pc):1
Control system(unit): 1
Alarm System: VOC alarm, temperature and humidity alarm
Base cabinet
Stainless steel table-board
AnemometerUV lamp

Water tap

Water sink
Optional alarm:
Ammonia alarm
Formaldehyde alarm
HCL alarm
Filter Model:SFGL OG: Organic filter
SFGL AG: Inorganic filter
SFGL FO: Formaldehyde filter
SFGL AM:Amrmonia filter
SFGL H14:HEPA filter

Model Specification Configure Optional parts
FMH-1300 External Dimension(mm):
1275*620*1245mm
lnternal Dimension(mm):
1256*574*934mm
Air Capacity(m/h): 690m3/h
Face velocity: 0.4-0.6m/s
Voltage: 110V-240V
Frequency: 50-60Hz
Power: 126W
Rated currents:2A
Volume: 40- 52 dBA
Operation hole: Trapezoid
Filters(pcs): 6
Pre filters(pcs): 3
Fans(pcs): 3
LED Lamp(pc):1
Display screen:  7 inch LCD touch screen
Worktable:
Epoxy resin board
Power cord(pc): 1
Control system(unit):1
Alarm System: VOC alarm, temperature and humidity alarm
Base cabinet
Stainless steel table-board
AnemometerUV lamp

Water tap

Water sink
Optional alarm:
Ammonia alarm
Formaldehyde alarm
HCL alarm
Filter Model:
SFGL OG: Organic filter
SFGL AG:Inorganic filter
SFGL FO: Formaldehyde filter
SFGL AM:Armrmonia filter
SFGL H14:HEPA filter

Model Specification Configure Optional parts
FMH-1600 External Dimension(mm):
1600*620*1245mm
lnternal Dimension(mm):
1581*574*934mm
Air Capacity(m’/h): 690m3/h
Face velocity:0.4-0.6m/s
Voltage: 110V-240V
Frequency 50-60Hz
Power: 126w
Rated currents: 5A
Volume: 40-52 dBA
Operation hole: Trapezoid
Filters(pcs): 6
Pre filters(pcs): 3
Fans(pcs): 3
LED Lamp(pc):1
Display screen: 7 inch LCD touch screen
Worktable:
Epoxy resin board
Power cord(pc): 1
Control systerm(unit):1
Alarm System: VOC alarm, temperature and humidity alarm
Base cabinet
Stainless steel table-board
AnemometerUV lamp

Water tap

Water sink
Optional alarm:
Ammonia alarm
Formaldehyde alarm
HCL alarm
Filter Model:
SFGL OG: Organic filter
SFGL AG: Inorganic filter
SFGL FO:Formaldehyde filter
SFGL AM:Ammonia filter
SFGL H14:HEPA filter

Model Specification Configure ptional parts
FMH-1600A External Dimension(mm):
1600*790*1245mm
lnternal Dimension(mm):
1581*744*934mm
Air Capacity(m’/h): 690m3/h
Face velocity: 0.4-0.6m/s
Voltage: 110V-240V
Frequency: 50-60Hz
Power: 126W
Rated currents: 5A
Volume: 40-52dBAOperation hole: Trapezoid
Filters(pcs): 6
Pre filters(pcs): 3
Fans(pcs): 3
LED Lamp(pc):1
Display screen: 7 inch LCD touch screen
Worktable:
Epoxy resin board
Power cord(pc): 1
Control system(unit):1
Alarm System: VOC alarm, temperature and humidity alarm
Base cabinet
Stainless steel table-board
AnemometerUV lamp

Water tap

Water sink
Optional alarm:
Ammonia alarm
Formaldehyde alarm
HCL alarm
Filter Model:
SFGL OG: Organic filter
SFGL AG: Inorganic filter
SFGL FO:Formaldehyde filter
SFGL AM:Ammonia filter
SFGLH14:HEPA filter

Transparent acrylic glass>5mm thinkness with good anti-corrosive performance.Two operation holes, reverse sash window design, easy to access.
